16 Inch 8K MONO LCD Screen – High Resolution Display for 3D Printers
Launch of 16-Inch 8K MONO LCD Screen
Ultra-High Resolution Display for Precision 3D Printing Applications
🔍 Product Overview

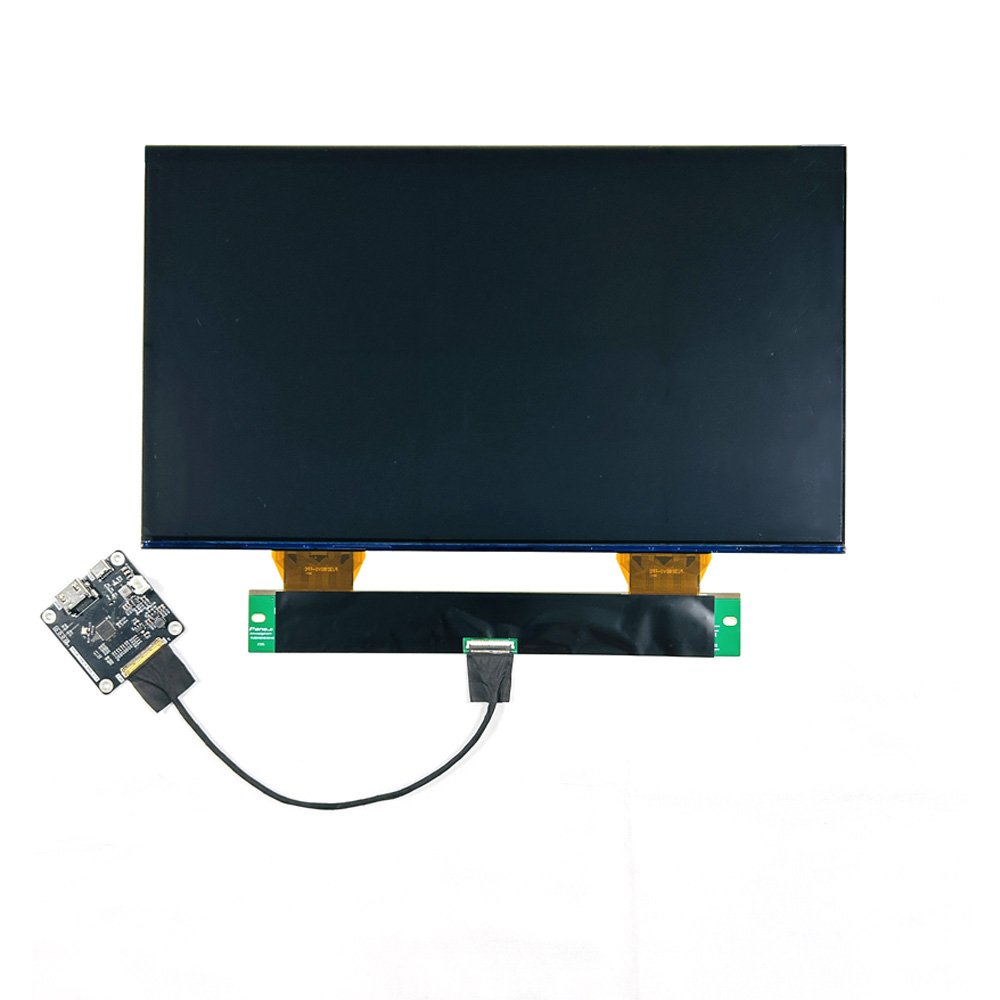

The 16-inch 8K MONO LCD (DBM160E8K01) delivers an impressive 7680 × 4320 resolution, providing unmatched clarity and precision for industrial and 3D printer LCD applications. Designed with a slim profile and wide temperature tolerance, it ensures reliable performance in demanding environments.
📊 Technical Specifications
| Feature | Details |
|---|---|
| Model | DBM160E8K01 |
| Display Size | 16 inch |
| Resolution | 7680 × 4320 (8K) |
| Interface | 40-pin eDP |
| Active Area | 353.28 × 198.72 mm |
| Outline Size | 358.28 × 207.42 × 1.16 mm |
| Viewing Angle | 85° (all directions, typical) |
| Contrast Ratio | 400:1 (typ.) |
| Operating Mode | Normally Black, Transmissive |
| Operating Temp. | –20 °C to +70 °C |
| Storage Temp. | –30 °C to +80 °C |
⭐ Key Benefits
- 8K Ultra Detail – Delivers razor-sharp imagery for precision applications
- Wide Viewing Angle – 85° visibility ensures consistent clarity
- Slim Profile – Only 1.16 mm thick for easy integration
- Industrial Reliability – Built to perform in –20 °C to +70 °C conditions
🏭 Applications
- 3D Printer LCD Screen – High-speed resin curing with fine detail
- Professional Displays – Ultra-sharp imaging for signage or control panels
- Industrial & Lab Instruments – Reliable performance in advanced systems
🏢 About Us
Shenzhen Aptus Technology Co., Ltd. (Duobond) is a global supplier of LCD modules and UV light systems with nearly a decade of expertise.
- 🌍 Serving Europe, North America, and worldwide markets
- 🧪 Proven in high-precision engineering and strict quality control
- 🤝 Offering OEM/ODM services and long-term partnerships
🤝 Our Services
- OEM & Customization
- Full Quality Testing
- Technical Support & Guidance
- Reliable Global Logistics
