6.8 Inch 9K Mono LCD Screen for 3D Printer: Duobond Professional Solution

6.8 Inch 9K Mono LCD Screen for 3D Printer: Duobond Professional Solution

In the competitive landscape of resin-based 3D printing, Duobond’s 6.8 Inch 9K Mono LCD Screen for 3D Printer stands out as the ultimate upgrade for professional-grade precision. With true 8520×4320 resolution and a 51Pin MIPI interface, this high-resolution mono LCD delivers 18-micron detail, faster curing times, and extended screen lifespan — making it the preferred choice for dental labs, jewelry designers, and micro-engineering teams worldwide.

Resin 3D printing relies on masked UV light to solidify photopolymer layer by layer. Traditional 4K or 8K displays often fall short when intricate details, smooth surfaces, and rapid production are required. Duobond’s latest breakthrough — the 6.8 Inch 9K 8520×4320 51Pin MIPI MONO LCD Screen — elevates printing resolution to an unprecedented 9K level, enabling features as fine as 18 microns while accelerating curing times and extending screen lifespan under intense UV exposure.

What sets this screen apart is not just raw resolution. It combines advanced a-Si TFT technology, optimized MIPI interface, and UV-hardened construction to deliver consistent performance across thousands of print hours. Whether you are upgrading an existing printer or designing a new OEM system, this LCD serves as the core upgrade that transforms ordinary resin printing into industrial-grade production.

Why 9K Resolution Transforms Resin 3D Printing

Resolution directly impacts print quality, speed, and material efficiency. At 8520 × 4320 pixels, the 6.8-inch 9K screen packs over 36 million pixels into a compact active area of 153.36 × 77.76 mm. This translates to a pixel pitch of just 18 × 18 μm — fine enough to render dental aligners with sub-0.1 mm tolerances or jewelry molds with intricate filigree that rivals hand-crafted pieces.

Compared to common 4K (3840 × 2400) screens, 9K offers more than double the detail in both axes. Anti-aliasing algorithms perform better, layer transitions appear seamless, and surface roughness drops significantly. Print times decrease because the higher pixel density allows optimized exposure patterns — fewer over-cured zones and less post-processing. For batch production of miniature parts or medical models, the efficiency gains are measurable in hours saved per day.

Monochrome (mono) LCDs further enhance performance over RGB panels. Black-and-white pixels provide maximum contrast under UV wavelengths, ensuring sharp light boundaries and minimal light bleed. Duobond’s screen is engineered with “normally black” mode and long UV durability, meaning it withstands continuous 365–405 nm exposure without yellowing or pixel degradation for extended periods.

Deep Dive into Technical Specifications

The DBM068M9K01 model is built for real-world 3D printer environments. Here is a complete breakdown:

• Display Size: 6.8 inches diagonal — ideal balance between build volume and printer footprint.
• Resolution: 8520 × 4320 (true 9K) — the highest currently available in this size class for resin printers.
• Pixel Pitch: 18 × 18 μm — enables feature sizes down to 0.018 mm, perfect for micro-fluidics or detailed prototypes.
• Active Area: 153.36 × 77.76 mm — provides generous projection area while keeping overall module dimensions compact at 161.36 × 89.88 × 1.25 mm.
• Technology: a-Si TFT (amorphous silicon thin-film transistor) — proven reliability in industrial displays.
• Display Mode: Normally Black — delivers maximum UV contrast and energy efficiency.
• Interface: 51-pin MIPI DSI — high-speed differential signaling supports frame rates up to 20 Hz without signal loss.
• Operating Temperature: 0–70 °C — stable performance even in heated printer chambers.

These specifications are not theoretical. The MIPI interface ensures low-latency data transfer from the controller board, while the thin 1.25 mm module thickness allows easy integration behind glass or Fresnel lenses. Rigorous ISO-certified quality control guarantees every screen meets industrial standards before shipment.

Seamless Integration with the Right Driver Board

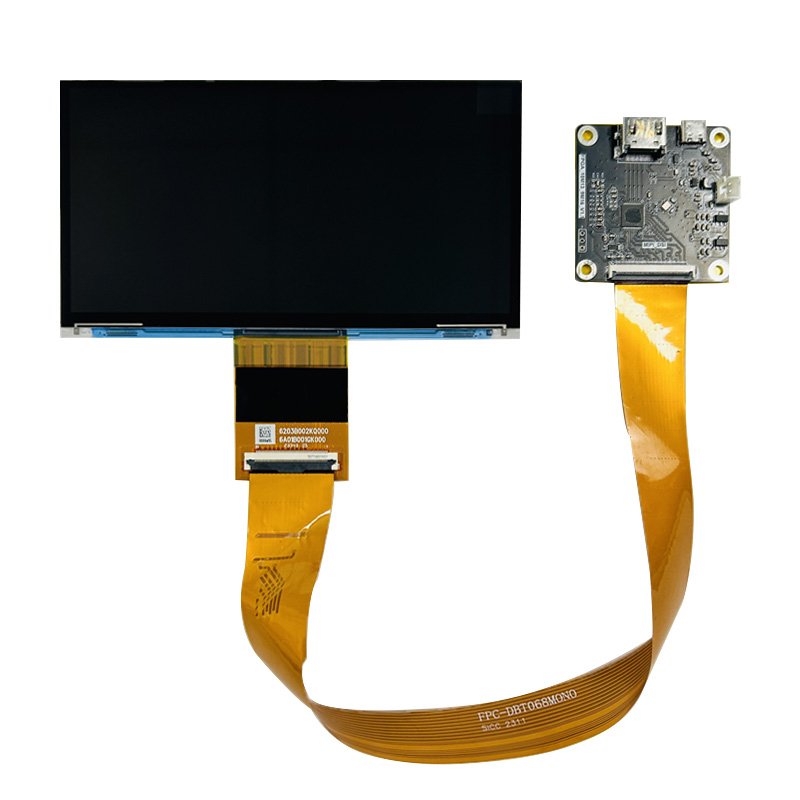

No high-resolution LCD performs in isolation. Most 3D printer motherboards output HDMI signals, yet modern mono LCDs require MIPI DSI. This is where Duobond’s dedicated driver board becomes essential. The Mono LCD Screen HD-MI To MIPI Board For 3D Printer handles the conversion flawlessly, supporting 9K resolutions with the BHTM08 firmware program.

With a pixel clock of 264 MHz and 20 Hz frame rate tailored for the 8520 × 4320 resolution, the board delivers stable, flicker-free imaging. Its compact PCB design fits inside standard printer chassis, and precision timing settings eliminate ghosting or synchronization issues. Professional users simply connect HDMI from the mainboard, attach the 51-pin MIPI cable to the LCD, and power up — no complex firmware flashing required.

Pair it seamlessly with our Mono LCD Screen HD-MI To MIPI Board For 3D Printer to unlock the full potential of 9K printing without compatibility headaches.

Precision Curing Powered by Advanced UV Light Sources

Even the sharpest LCD mask needs uniform, high-intensity UV illumination to cure resin accurately. Diffuse reflection or uneven exposure creates defects such as stair-stepping or incomplete polymerization. Duobond addresses this with the UVA-S25 UV Light Source for 3D Printer, a 5.96/6.6-inch module engineered to match the 6.8-inch LCD perfectly.

Featuring a 5 × 5 LED matrix, parallel light technology, and >100 mW/cm² intensity (measured with Linshang LS125 probe), the UVA-S25 achieves ≥85 % evenness across the entire active area. The structured design — including Fresnel lens placement at 82–85 mm and optional 3–4 mm glass cover — minimizes light scatter and enhances edge definition. Installation is straightforward: align horizontally within ±1 mm, position the LCD 0–6 mm above the glass, and enjoy consistent curing from the first layer to the last.

Enhance curing precision with the UVA-S25 UV Light Source for 3D Printer and experience defect-free prints with superior surface finish and dimensional accuracy.

Real-World Applications and Measurable Benefits

Dental laboratories use the 9K setup to produce surgical guides and aligners with sub-50 μm accuracy, reducing chairside adjustments. Jewelry designers create wax molds with fine engravings that traditional casting cannot match. Micro-engineering teams prototype microfluidic devices and small mechanical assemblies where every micron counts.

Benefits extend beyond detail: faster curing (thanks to high contrast and intense UV) shortens layer times by 15–30 %; long UV durability extends screen life beyond 5,000 hours; wide viewing angles ensure consistent performance even if the projector is slightly offset. ISO-certified manufacturing and stringent quality control translate directly into customer satisfaction and repeatable results.

Installation Tips and Best Practices

Mount the LCD module behind a high-transmission glass plate, connect the MIPI cable securely, and calibrate exposure times starting at 1.5–2.5 seconds per layer (depending on resin). Use the driver board’s timing parameters exactly as specified for the 9K program. Regular dust removal and proper ventilation keep both LCD and UV source performing at peak efficiency.

Frequently Asked Questions

Q: Is the 6.8 Inch 9K Mono LCD Screen for 3D Printer compatible with my existing machine? A: Yes — with our HD-MI to MIPI board, it works with most HDMI-based controllers.

Q: What resin types perform best? A: Any 365–405 nm photopolymer; the high-contrast mono LCD excels with fast-curing resins.

Q: How long does the screen last under daily use? A: Over 5,000 hours with proper UV management and our matched light source.

Q: Do you offer custom sizes or resolutions? A: Absolutely — Duobond specializes in OEM/ODM LCD solutions.

Q: Where can I purchase the complete set? A: All components are available directly on our site with worldwide shipping.

Conclusion: Build the Future of High-Resolution 3D Printing Today

Duobond’s 6.8 Inch 9K Mono LCD Screen for 3D Printer represents the pinnacle of resin printing technology — combining extreme resolution, robust construction, and perfect compatibility with driver boards and UV sources. By integrating this display with our complementary components, professionals achieve faster, more accurate, and more reliable prints than ever before.

Ready to upgrade your printer or launch your next OEM project?

Learn more about our 6.8 Inch 9K 8520×4320 51Pin MIPI MONO LCD Screen and discover how Duobond Solutions can deliver the complete LCD ecosystem your 3D printing application demands.
