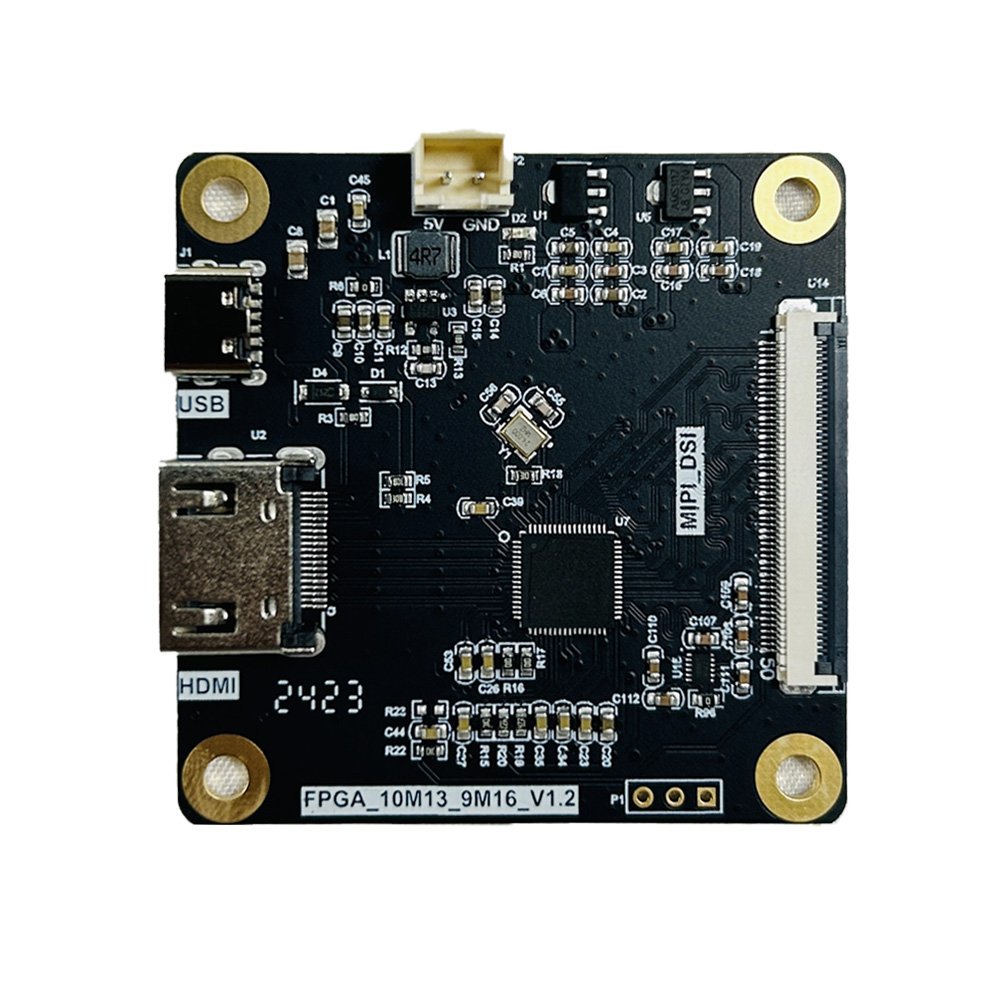

When upgrading to a high-resolution resin 3D printer, the LCD screen is only half the story. The real performance bottleneck is often the signal conversion between your printer motherboard’s HD-MI output and the modern MIPI DSI interface required by 9K mono LCD screens. Duobond’s HD-MI To MIPI Board for 3D Printer solves this problem completely, delivering stable, high-speed drive for 9K, 12K, 14K and even 16K mono LCD displays with zero compatibility issues.
Most 3D printer mainboards still use HD-MI, while premium mono LCDs — including Duobond’s own 6.8 Inch 9K 8520×4320 51Pin MIPI MONO LCD Screen — demand MIPI DSI for the massive data throughput needed at 20 Hz frame rates. Without a dedicated driver board, you face flickering, ghosting, resolution downscaling, or complete incompatibility. Duobond’s compact HDMI-to-MIPI converter board eliminates all these headaches and unlocks the full precision of 9K resin printing.
Designed specifically for professional SLA and DLP 3D printers, this driver board supports two programmable firmware options (BHTM08 and BHTM10), making it the most versatile solution on the market for both current 9K builds and future-proof 16K upgrades.
Why HDMI to MIPI Conversion Is Essential for 9K 3D Printing
High-resolution mono LCDs require extremely fast differential signaling. A single 8520×4320 frame at 20 Hz generates over 264 million pixels per second — far beyond what standard HD-MI timing can handle without a specialized converter. The HD-MI To MIPI Board for 3D Printer performs real-time signal conversion with precision timing parameters, ensuring every pixel reaches the LCD exactly when needed.
Without this board, users often experience:
- Dropped frames or reduced resolution
- Visible line artifacts in fine details
- Overheating or unstable power draw
- Inability to use 51-pin MIPI screens at all
Duobond’s board removes these limitations, delivering industrial-grade stability for dental, jewelry, and micro-engineering applications.
Technical Deep Dive: BHTM08 & BHTM10 Programs
The board ships with two factory-programmed configurations to match different display sizes and resolutions:
BHTM08 Program (Recommended for 9K Builds)
- Supports: 8520×4320 (9K), 11520×5120 (12K), 13320×5120 (14K)
- 8520×4320 specifics: – Frame rate: 20 Hz – Pixel clock: 264 MHz – Horizontal resolution: 8520 tCLK – Vertical resolution: 4320 tH
- Perfect match for Duobond’s 6.8-inch 9K mono LCD screen
- Ultra-low latency and zero flicker at full resolution
BHTM10 Program (For Larger 16K Displays)
- Supports: 15120×6230 (16K) on 10.1″ and 14″ screens
- Pixel clock: 260.6 MHz
- Frame rate: 20 Hz
Both programs use high-speed MIPI DSI output with robust 51-pin connector compatibility. The PCB is optimized for compact integration inside standard 3D printer chassis, with reinforced HD-MI input and stable power regulation.
Seamless Pairing with Duobond 6.8 Inch 9K Mono LCD Screen
Installation is straightforward:
- Connect HD-MI cable from your printer motherboard to the board
- Attach the 51-pin MIPI cable from the board to the LCD
- Power the board (standard 5V or 12V depending on your setup)
- Select BHTM08 program — no flashing required
The board automatically applies the exact 264 MHz timing for the 8520×4320 resolution, delivering crisp, high-contrast images with perfect edge definition. Users report zero ghosting and stable performance even during continuous 24-hour production runs.
Unlock full 9K performance by pairing this board with our 6.8 Inch 9K 8520×4320 51Pin MIPI MONO LCD Screen — the combination that professionals trust for sub-18 micron detail.
Complete Ecosystem: Add Precision UV Curing
Even the best driver board needs uniform UV illumination to translate sharp LCD masks into perfect prints. Duobond’s UVA-S25 UV Light Source for 3D Printer completes the system with >100 mW/cm² intensity, ≥85 % evenness, and parallel light technology that minimizes diffuse reflection.
Position the UVA-S25 82–85 mm behind the LCD (0–6 mm gap) and enjoy defect-free curing across the entire 6.8-inch active area. The combination of precise MIPI timing + high-contrast mono LCD + uniform UV delivers surface roughness values below 0.1 mm and dimensional accuracy that meets medical-grade standards.
Achieve flawless resin curing by adding the UVA-S25 UV Light Source for 3D Printer to your 9K setup.
Real-World Applications and Performance Gains
Dental labs use this driver board + 9K LCD combination to print surgical guides with 25 μm layer accuracy and zero post-processing. Jewelry designers achieve filigree details impossible on 4K systems. Micro-fluidics engineers report 30 % faster print times due to optimized exposure patterns enabled by stable 20 Hz frame rates.
Measurable benefits include:
- Screen lifespan extended beyond 5,000 hours (thanks to precise timing that reduces over-exposure)
- Layer times reduced by 15–25 %
- Elimination of common HD-MI-MIPI mismatch errors
- Easy upgrade path to 12K or 14K in the future
Installation Tips and Best Practices
- Keep MIPI cable length under 200 mm to avoid signal degradation
- Use shielded HD-MI cable for noisy workshop environments
- Mount the board with 4 mm standoffs for airflow
- Verify timing parameters match the exact LCD model before first print
- Combine with proper cooling to maintain stable pixel clock performance
Frequently Asked Questions
Q: Does the HD-MI To MIPI Board support my existing 9K mono LCD? A: Yes — the BHTM08 program is pre-configured for 8520×4320 resolution.
Q: Can I upgrade to 16K later? A: Absolutely. Simply switch to the BHTM10 program for larger displays.
Q: Is firmware flashing required? A: No — both programs are pre-loaded and selectable via onboard jumpers or software.
Q: What motherboards are compatible? A: Any HDMI-output 3D printer mainboard (Anycubic, Phrozen, Creality, custom OEM).
Q: Where can I buy the complete 9K system? A: All components — screen, driver board, and UV source — are available on our site with global shipping.
