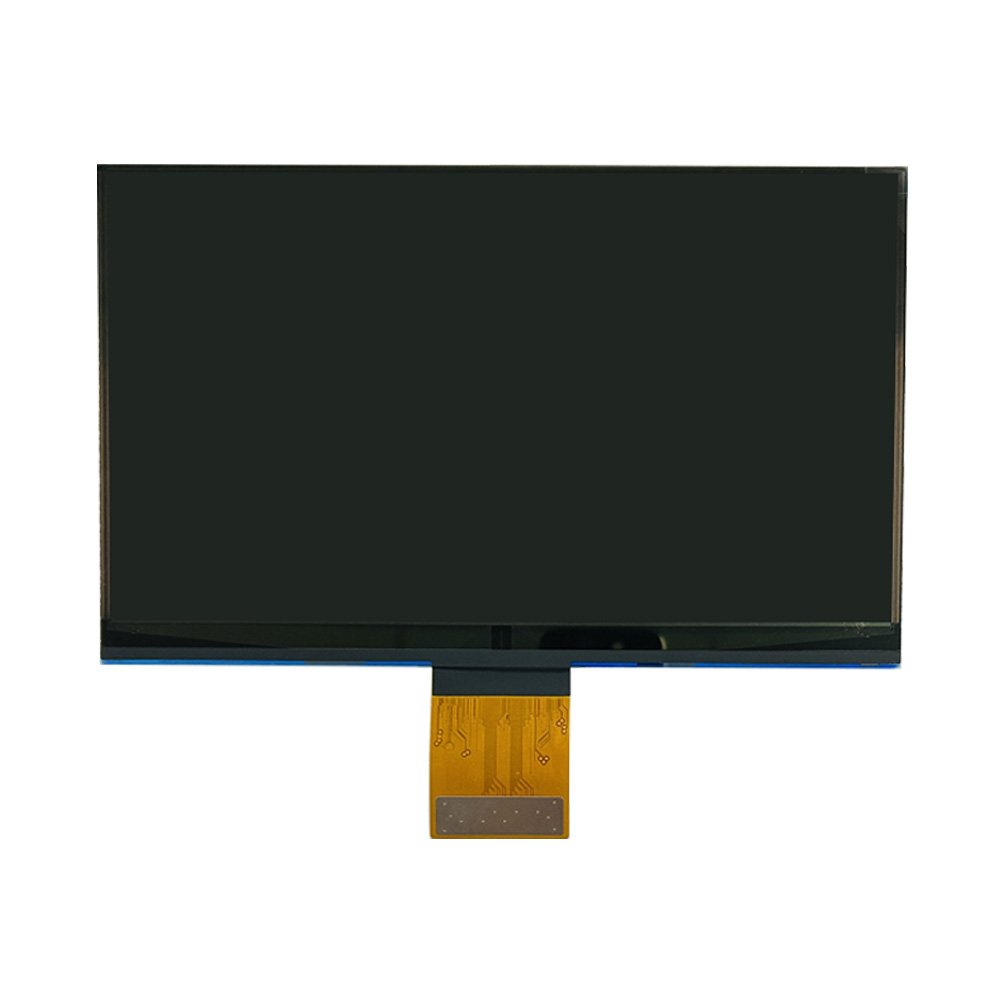

10.1 Inch 14K 13320×5120 MONO LCD Screen

10.1 inch 14K Mono LCD Screen for 3D Printers

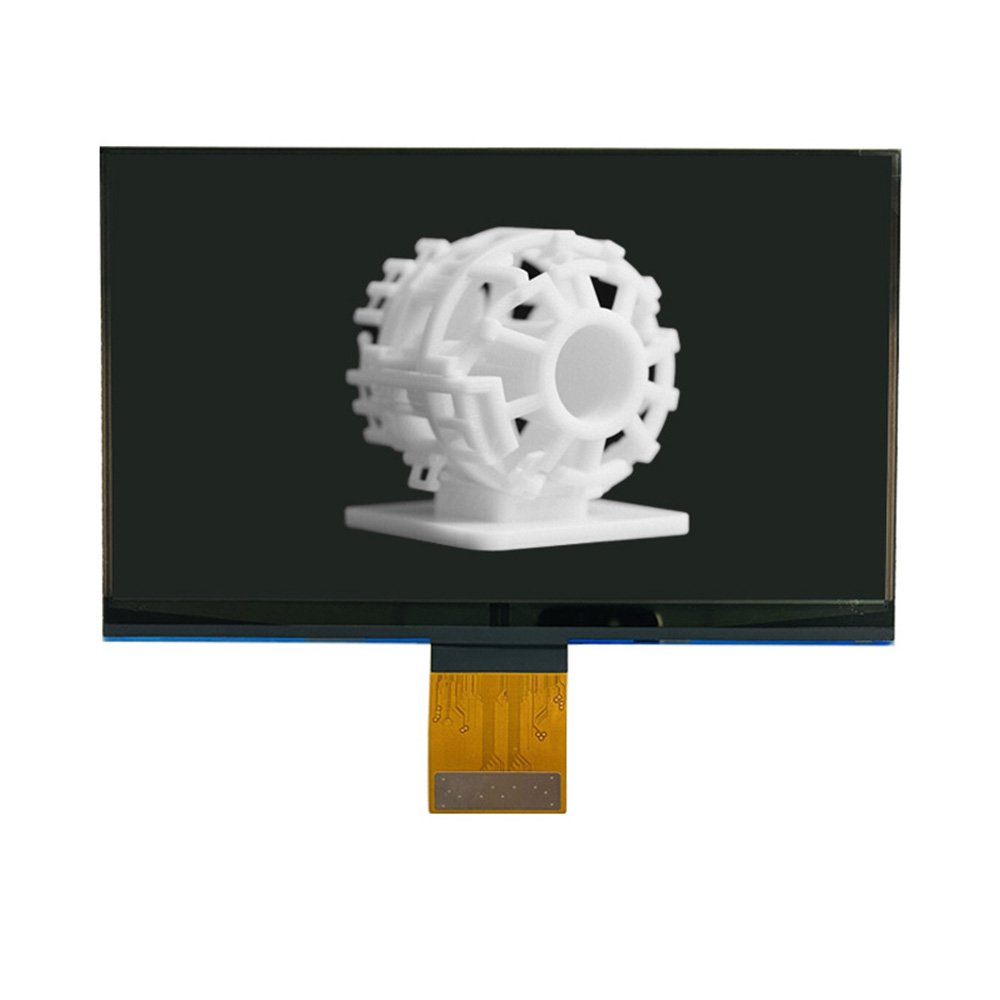

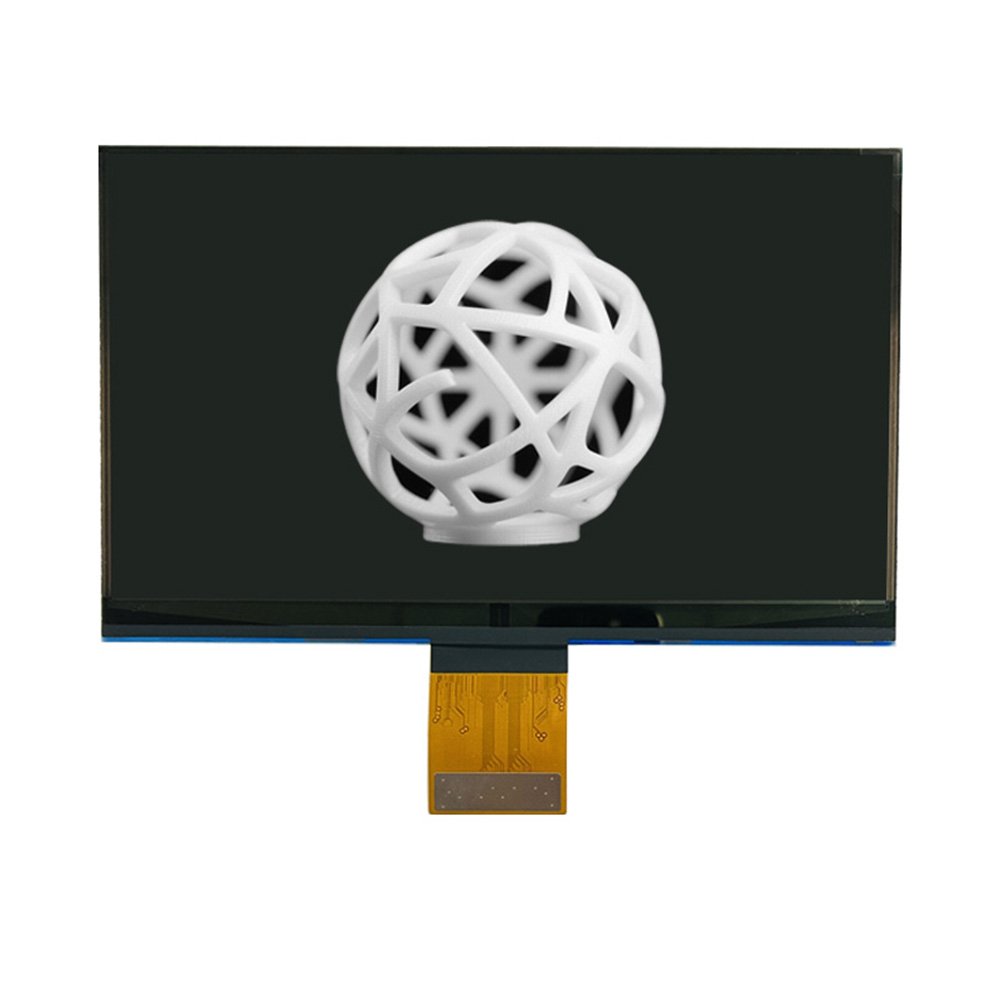

Looking for a high - resolution display for your 3D printer? Our 10.1-inch 14K Mono LCD Screen is the perfect match. It brings incredible detail and clarity to your 3D printing projects.

Key Features

- Large Display Area: The spacious 10.1 - inch screen offers ample room for viewing and adjusting settings in 3D printing.

- 14K Resolution: With a resolution of 13320 x 5120 pixels, every detail of your 3D print is visible and accurate.

- TFT Technology: Using TFT (Thin Film Transistor) technology, this display provides consistent color reproduction and wide viewing angles.

- Durable Construction: Built to withstand the rigors of industrial use, making it a reliable choice for 3D printer applications.

- RoHS Compliance: Environmentally friendly and safe for use.

Technical Specifications

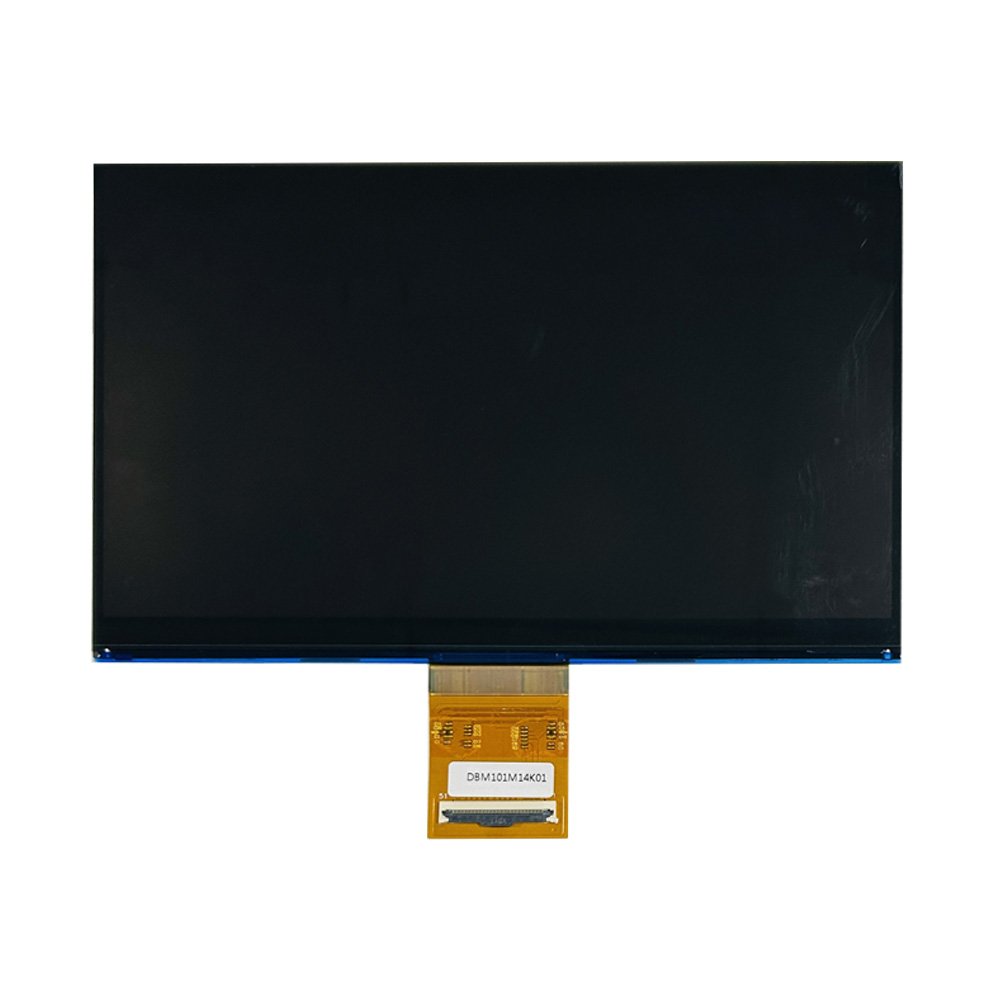

- Model: DBM101M14K01

- Size: 10.1 inches

- Resolution: 13320 x 5120 pixels

- Pixel Pitch: 0.0168mm (W) x 0.0248mm (H)

- Display Mode: TFT (MONO)/Transmissive

- Active Area: 223.78mm (W) x 126.98mm (H)

- Dimensions: 230mm (W) x 142mm (H) x 1.06mm (T)

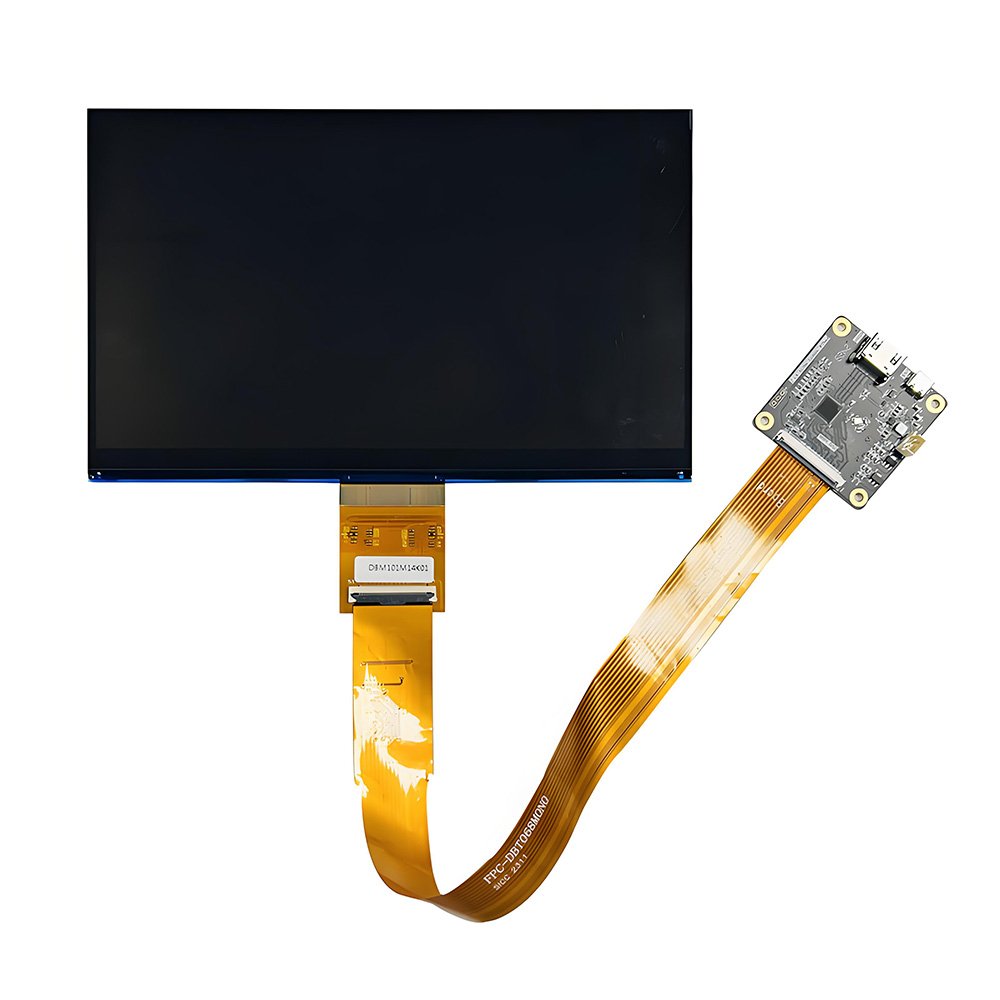

- Interface: 8 LANE MIPI

- Viewing Angle: ALL

- Operating Temperature: -20℃ to 70℃

- Storage Temperature: -30℃ to 80℃

Optical and Electrical Characteristics

- Transmittance Rate (405): TBD%

- Contrast Ratio (405): TBD

- Response Time: 25ms

- Viewing Angle: 80° to 85° (C/R>10)

- Logical Voltage: VDD, IOVCC 1.65V - 1.95V, VSN -5.5V, VSP +5.5V

- Current Consumption: IDD - 150 mA

Reliability Testing

- High Temperature Operating: 70°C for 168 hours

- Low Temperature Operating: -20°C for 168 hours

- High Temperature Storage: 80°C for 168 hours

- Low Temperature Storage: -30°C for 168 hours

- High Temperature & Humidity Storage: 60°C, 90%RH for 168 hours

- Thermal Shock: -20°C to 70°C, 10 cycles

Choose our 10.1-inch 14K Mono LCD Screen to enhance your 3D printing experience, please contact us.
