10.3 Inch 8K 7680×4320 MONO LCD Screen

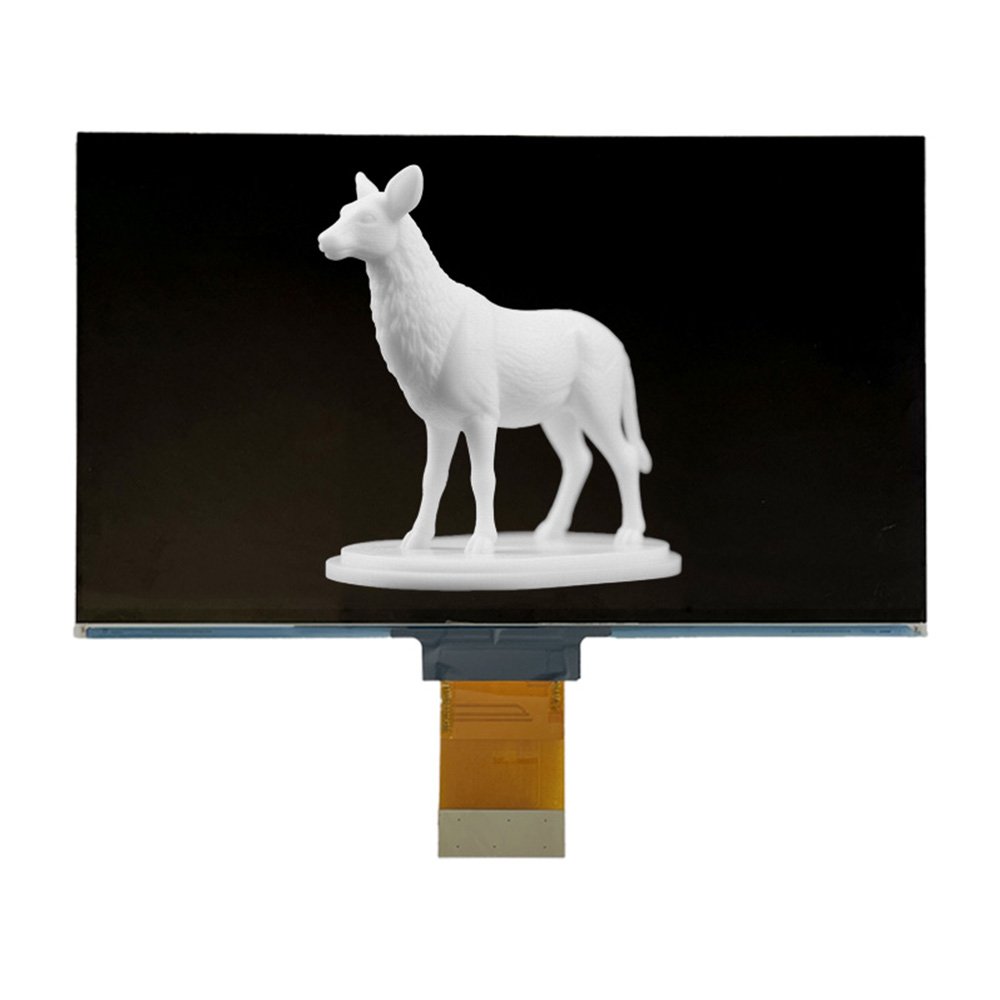

10.3 Inch 8K MONO LCD Screen for 3D Printers

Our 10.3-inch 8K MONO LCD Screen is designed to bring exceptional clarity and precision to your 3D printing projects.  With its high - resolution display and advanced features, this screen is perfect for users demanding detailed and accurate visuals.

Key Features

- 8K Resolution: With a resolution of 7680 x 4320 pixels, this screen delivers incredibly sharp and detailed images, making it ideal for complex 3D printing tasks.

- MIPI-DSI 8 Lanes Interface: Ensures fast and reliable data transfer, enhancing the overall performance of your 3D printer.

- Low Power Consumption: Designed to operate efficiently, this screen helps reduce energy costs without compromising on performance.

- Wide Viewing Angle: Offers a viewing angle of up to 80°, allowing you to monitor your prints from various angles without significant loss of image quality.

- RoHS Compliance: Manufactured with environmentally friendly materials, ensuring safety and sustainability.

Technical Specifications

- Display Format: 10.3-inch 8K, 7680 x 4320 pixels

- Interface: MIPI-DSI 8 lanes

- Panel Outline: 232.096(W) × 138.402(H) × 1.24(T) mm

- Active Area: 228.096(W) × 128.304(H) mm

- Pixel Pitch: 29.7(W) × 29.7(H) μm

- Pixel Arrangement: MONO

- Operating Temperature: -20℃ to 70℃

- Storage Temperature: -40℃ to 80℃

- I/O Voltage (VDDIO): 1.65V - 1.95V

- EL Driving Voltage (ELVDD): 4.50V - 6.30V

- ELVSS: -4.5V - -6.3V

- Contrast Ratio: 300:1 (at θ=0°)

- Viewing Angle Range: CR > 10 within 70° to 80°

- Transmittance: 4% @ 405nm without APF&Haze

- Crosstalk: 1.5%

Reliability and Durability

The screen undergoes rigorous testing to ensure it performs reliably under various conditions, including high - temperature storage, low - temperature storage, and high - temperature and high - humidity operation.

Enhance your 3D printing experience with our 10.3-inch 8K MONO LCD Screen.  Contact us today for more details or to place an order!
