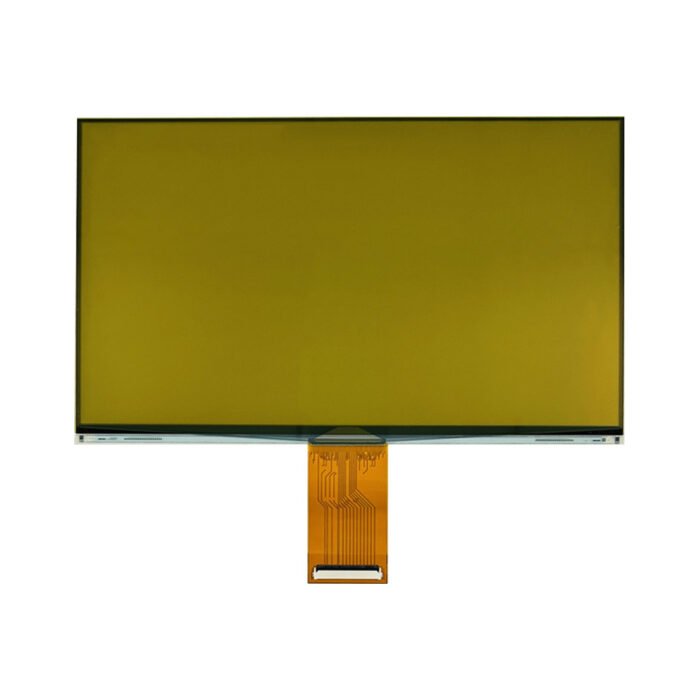

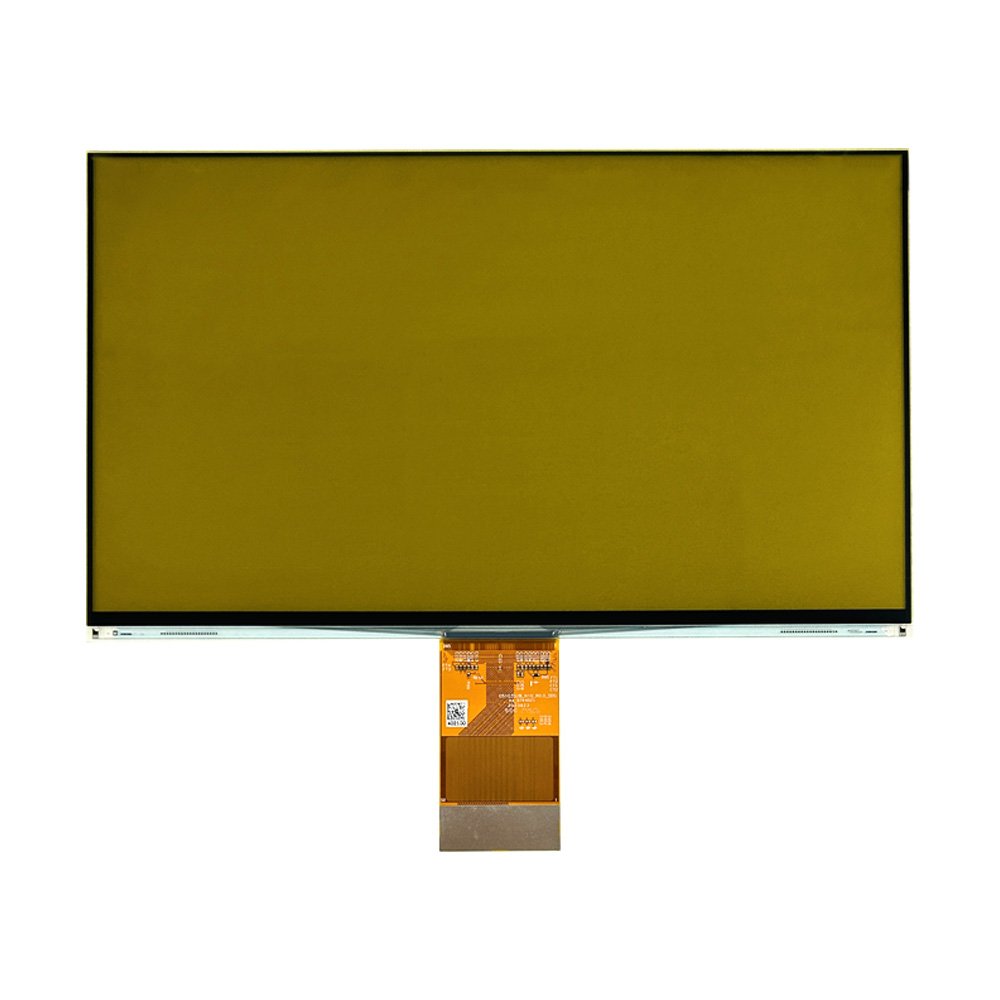

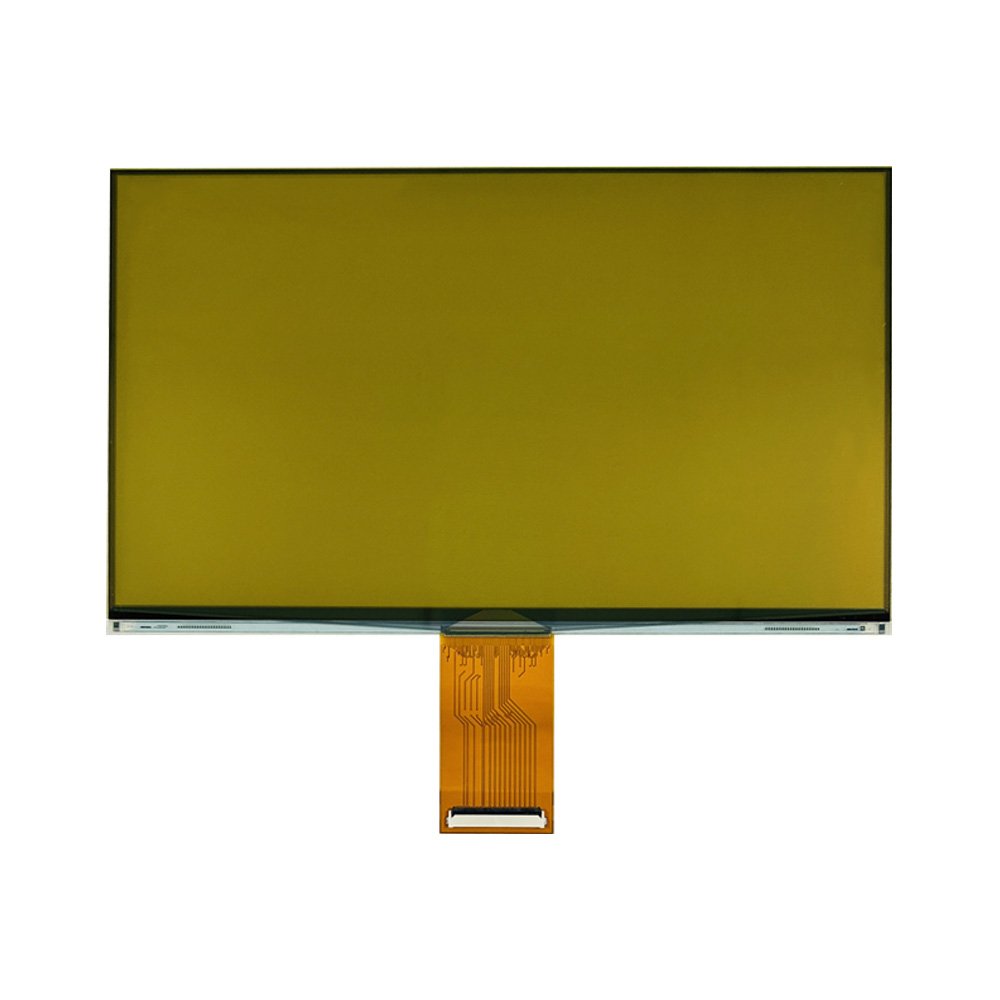

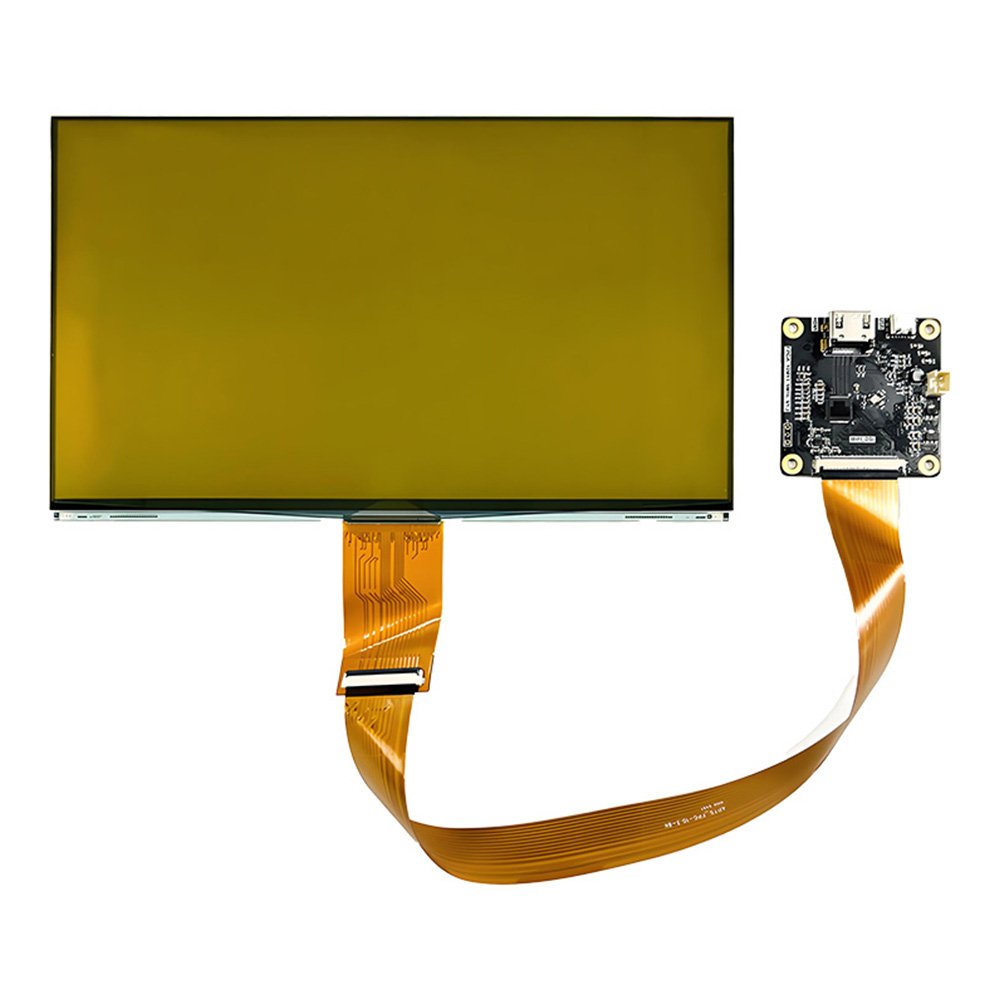

10.3 Inch 8K Yellow Polarizer Film MONO LCD Screen
►Size:10.3 inch
►Model:DBM103M8K01
►Resolution:7680*4320 dots
►Interface:50Pin MIPI
►Active Area:228.1*128.3mm
►Outline dimensions:233.5*143.0*6.8mm
►Operating Temperature : -20~70℃
📰10.3-Inch 8K Mono LCD with Yellow Polarizer Film
✨ Product Overview
The 10.3 inch 8K mono LCD with Yellow Polarizer Film is engineered for ultra-high-resolution 3D printer applications. With 7680×4320 pixels, this display ensures unmatched precision in resin curing, delivering smoother surfaces and sharper details. The integration of a yellow polarizer film further improves contrast and resin sensitivity, making it an ideal solution for professional-grade 3D printer LCD solutions.
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Screen Size | 10.3 inch |
| Resolution | 7680 × 4320 (8K UHD) |
| Display Type | Mono LCD |
| Polarizer Film | Yellow Polarizer Film |
| Interface | 50 Pin eDP |
| Contrast Ratio | 550:1 |
| Module Power Consumption | 0.38 W |
| Pixel Pitch | 29.7 × 29.7 μm |
| Active Area | 229.92 × 129.6 mm |
| Operating Temperature | 20°C ~ 70°C |
| Storage Temperature | -20°C ~ 80°C |
👨💻 User Experience
-
High Precision Printing – 8K resolution ensures ultra-fine details for smooth surfaces.
-
Enhanced Resin Sensitivity – Yellow polarizer boosts curing efficiency and sharpness.
-
Faster Printing Speeds – Mono LCD reduces exposure time compared to RGB screens.
-
Durability & Reliability – Optimized for long operational life in professional 3D printers.
🏭 Application Scenarios
-
Professional 3D Printers – Ideal for SLA and MSLA resin printers requiring ultra-high detail.
-
Dental & Medical Models – Ensures accurate reproduction of complex anatomical structures.
-
Industrial Prototyping – High-resolution prototyping for precision engineering.
-
Jewelry & Miniatures – Produces sharp, intricate designs with minimal post-processing.
