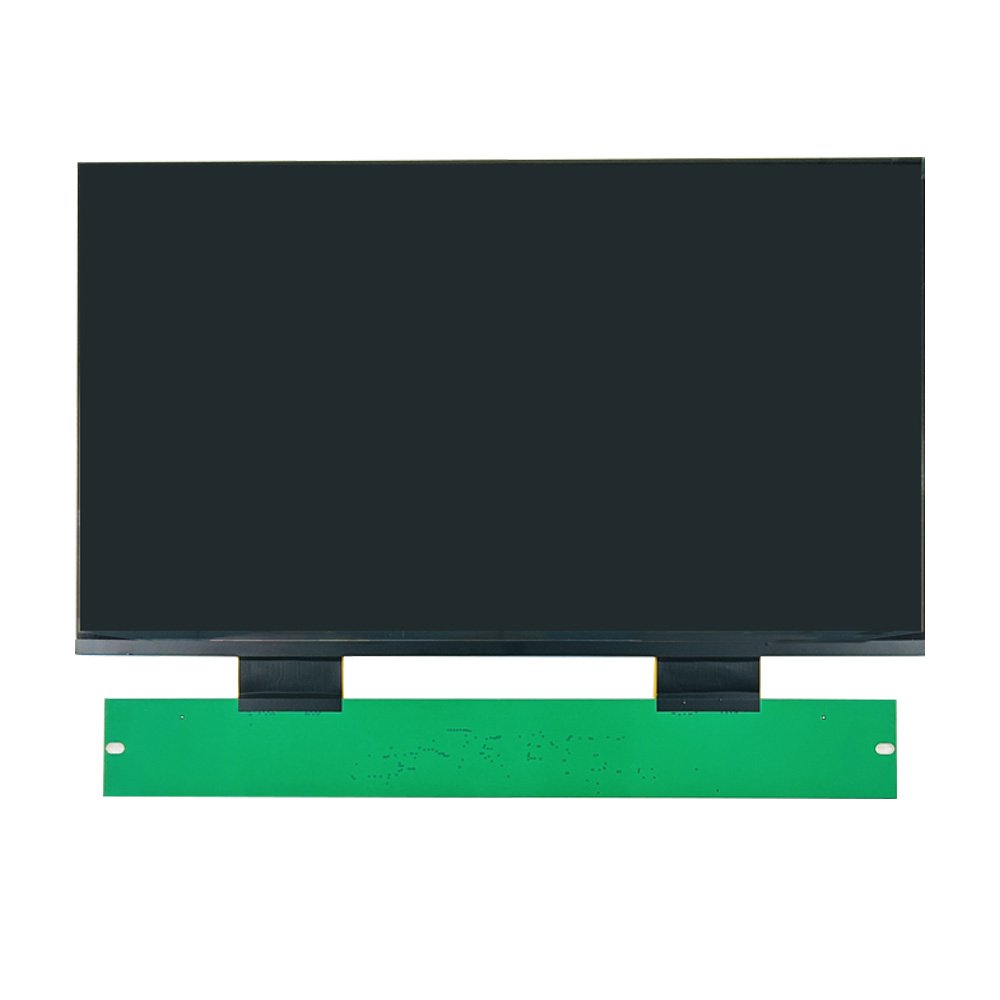

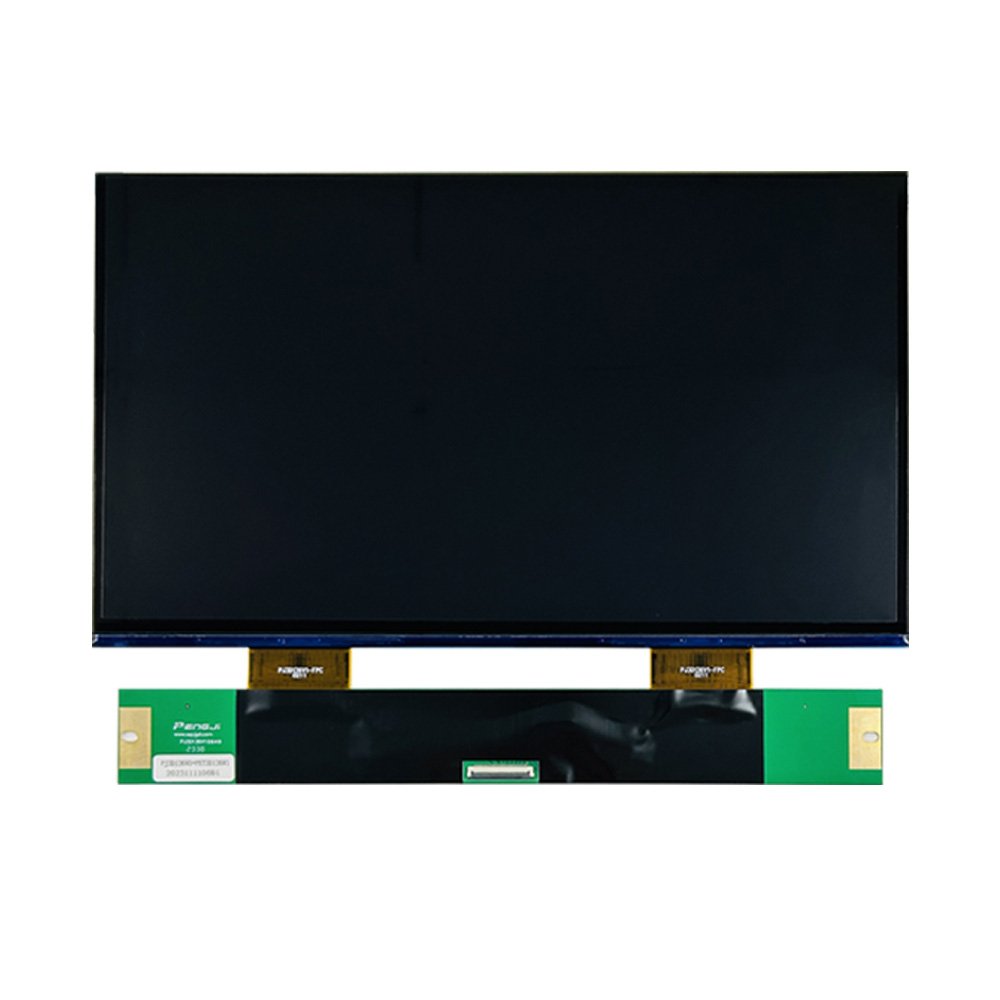

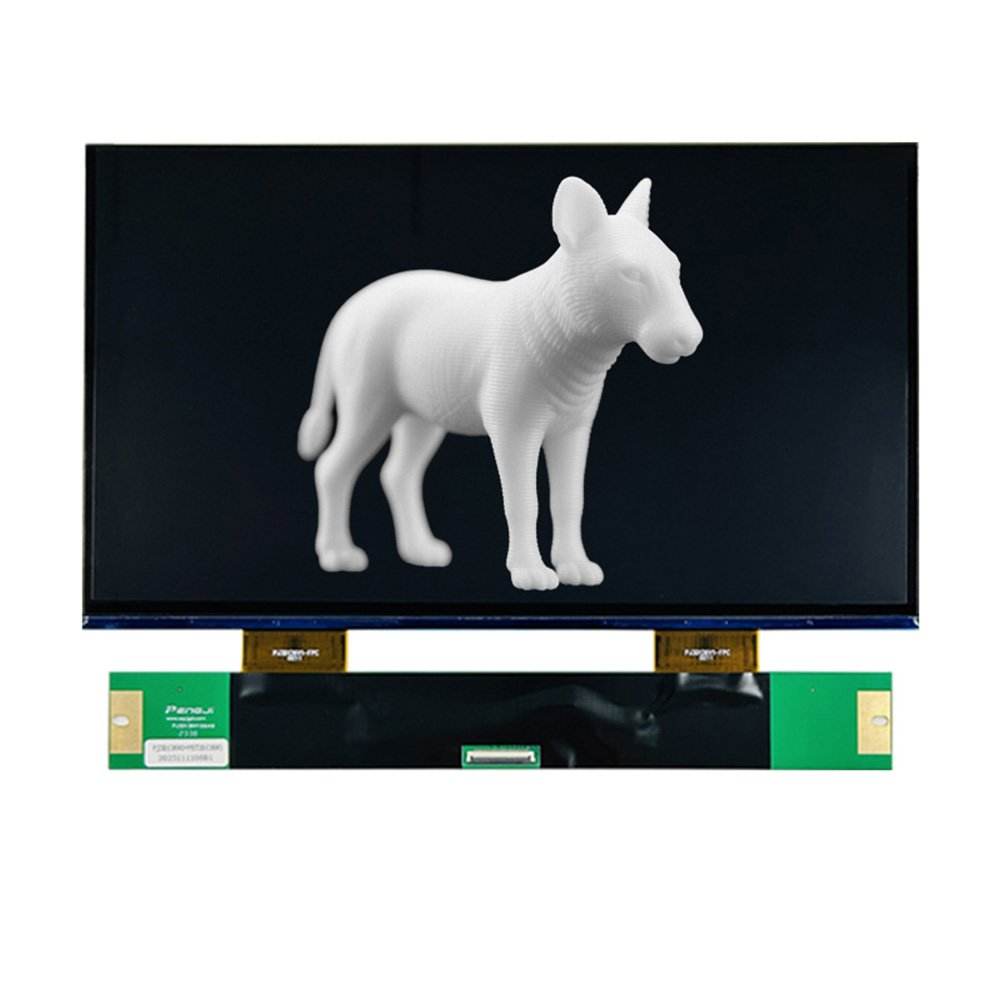

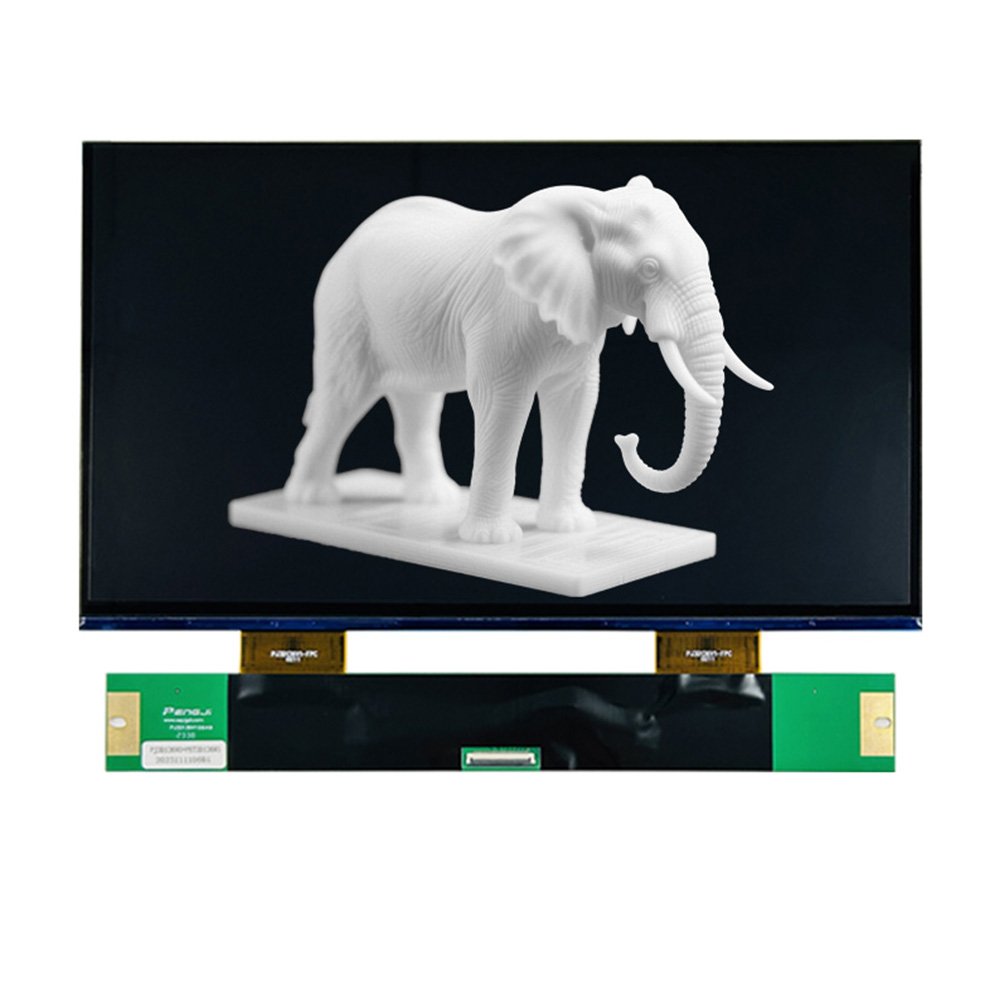

13.6 Inch 7K 6480×3600 MONO LCD Screen

13.6-inch 7K MONO LCD Screen for 3D Printers

Our 13.6-inch 7K MONO LCD Screen is a high-performance display solution designed for precision 3D printing applications.

Key Features

- High Resolution: The 6480 x 3600 pixel resolution ensures sharp and detailed images, making it ideal for intricate 3D printing tasks.

- Excellent Optical Performance: With a transmittance rate of 8% - 9%, a contrast ratio of 300:1 - 400:1, and a response time of 45ms, this screen provides exceptional image quality and clarity.

- Wide Viewing Angle: The viewing angle of 80° - 85° ensures that the display remains visible from various angles, enhancing the user experience.

- Robust Construction: Built to withstand industrial environments, this display is a reliable choice for 3D printer applications.

- RoHS Compliance: Manufactured with environmentally friendly materials, ensuring safety and sustainability.

Technical Specifications

- Display Size: 13.6 inches

- Resolution: 6480 x 3600 pixels

- Pixel Size: 0.046 x 0.046 mm

- Display Type: TFT (MONO) / Transmissive

- Active Area: 298.08mm (W) x 165.60mm (H)

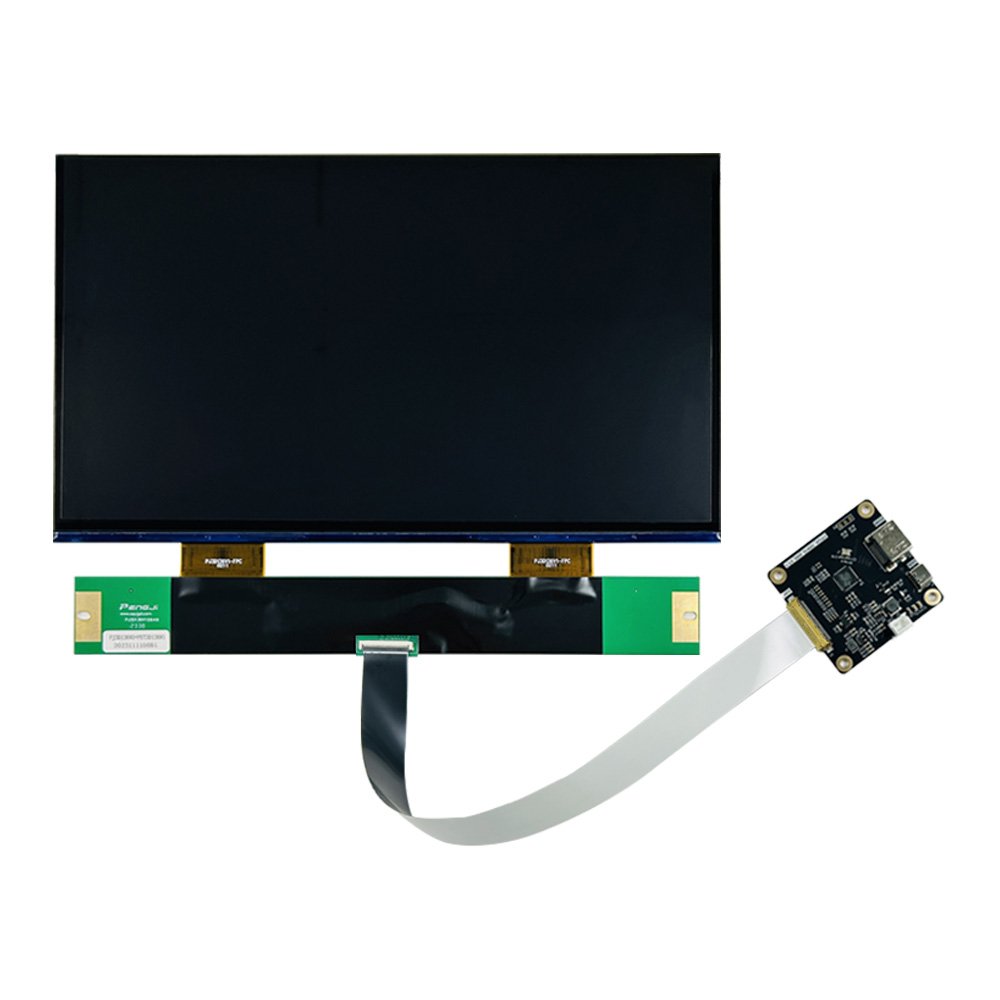

- Interface Type: 4 LANE EDP

- Outline Dimensions: 302.36mm (W) x 176.94mm (H) x 1.16mm (T)

- Operating Temperature: -20°C to 70°C

- Storage Temperature: -30°C to 80°C

Optical Specifications

- Transmittance Rate: 8% - 9%

- Contrast Ratio: 300:1 - 400:1

- Response Time: 45ms (Tr+Tf)

- Viewing Angle: 80° - 85° (C/R>10)

Reliability Testing

- High Temperature Operating: Tested at 70°C for 168 hours

- Low Temperature Operating: Tested at -20°C for 168 hours

- High Temperature Storage: Tested at 80°C for 168 hours

- Low Temperature Storage: Tested at -30°C for 168 hours

- High Temperature & Humidity Storage: Tested at 60°C, 90%RH for 168 hours

- Thermal Shock Storage: Tested with 10 cycles of -20°C to 70°C

- ESD Test: Tested with voltage:+8KV, air discharge, 10 times

- Vibration Test: Tested with frequency: 10 => 55 =>10 => 55 => 10 Hz, 15 minutes for each direction (X,Y,Z)

- Drop Test: Tested with packed, 100CM free fall 6 sides, 1 corner, 3edges

Contact us today to learn more about the 13.6-inch 7K MONO LCD Screen and how it can enhance your 3D printing experience.
