16 Inch 8K 7680×4320 MONO LCD Screen

16" 8K Monochrome LCD Screen for 3D Printers

Product Introduction

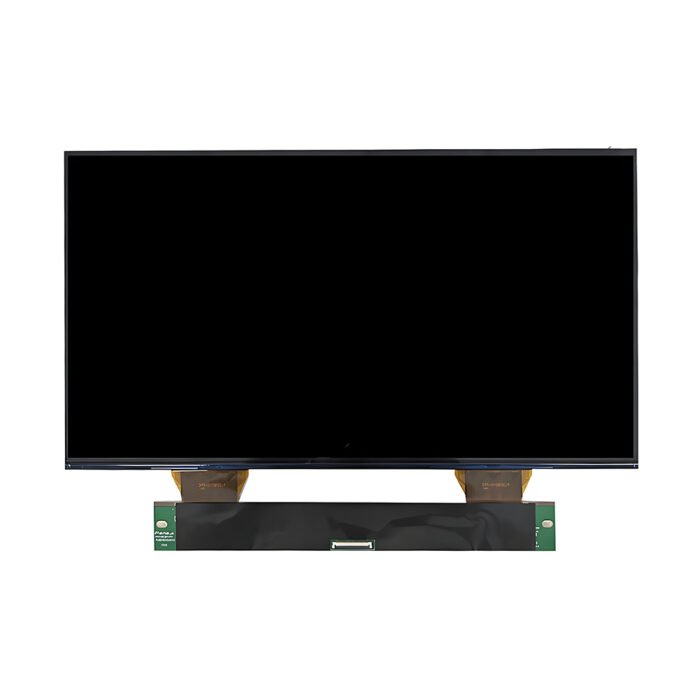

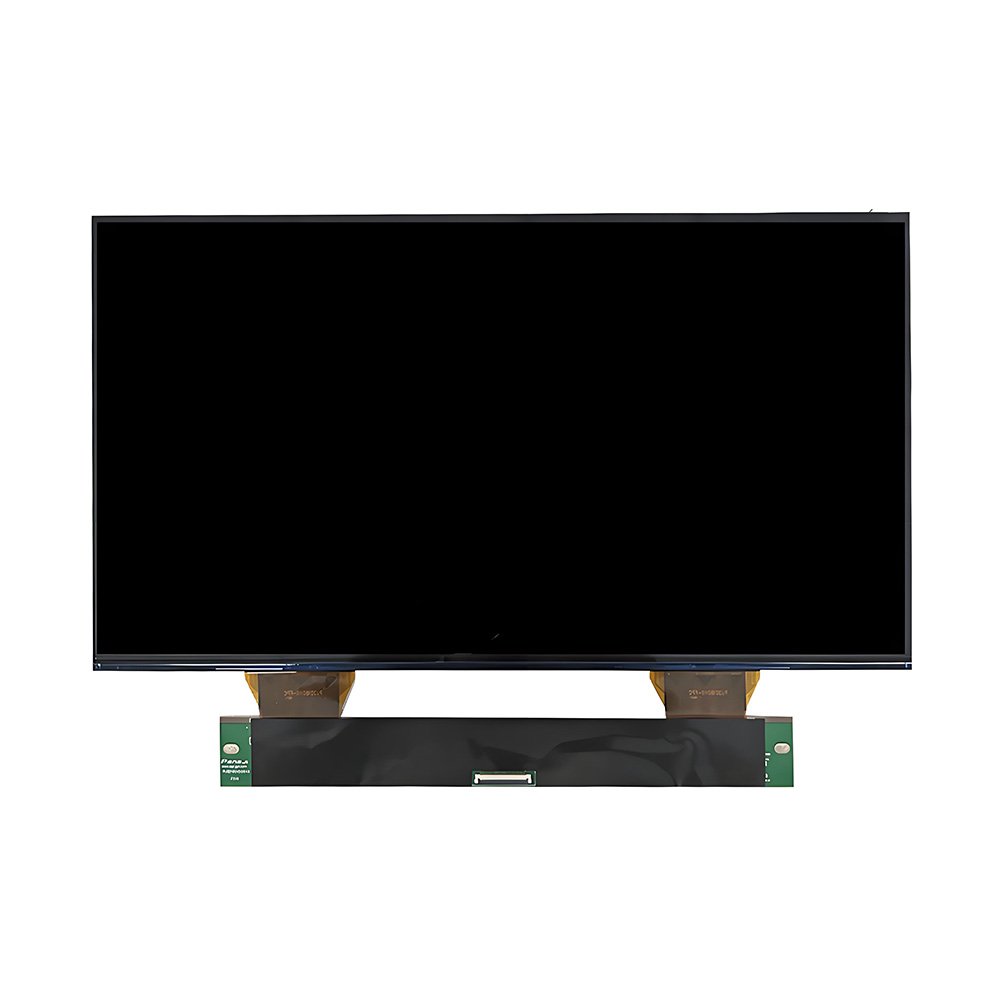

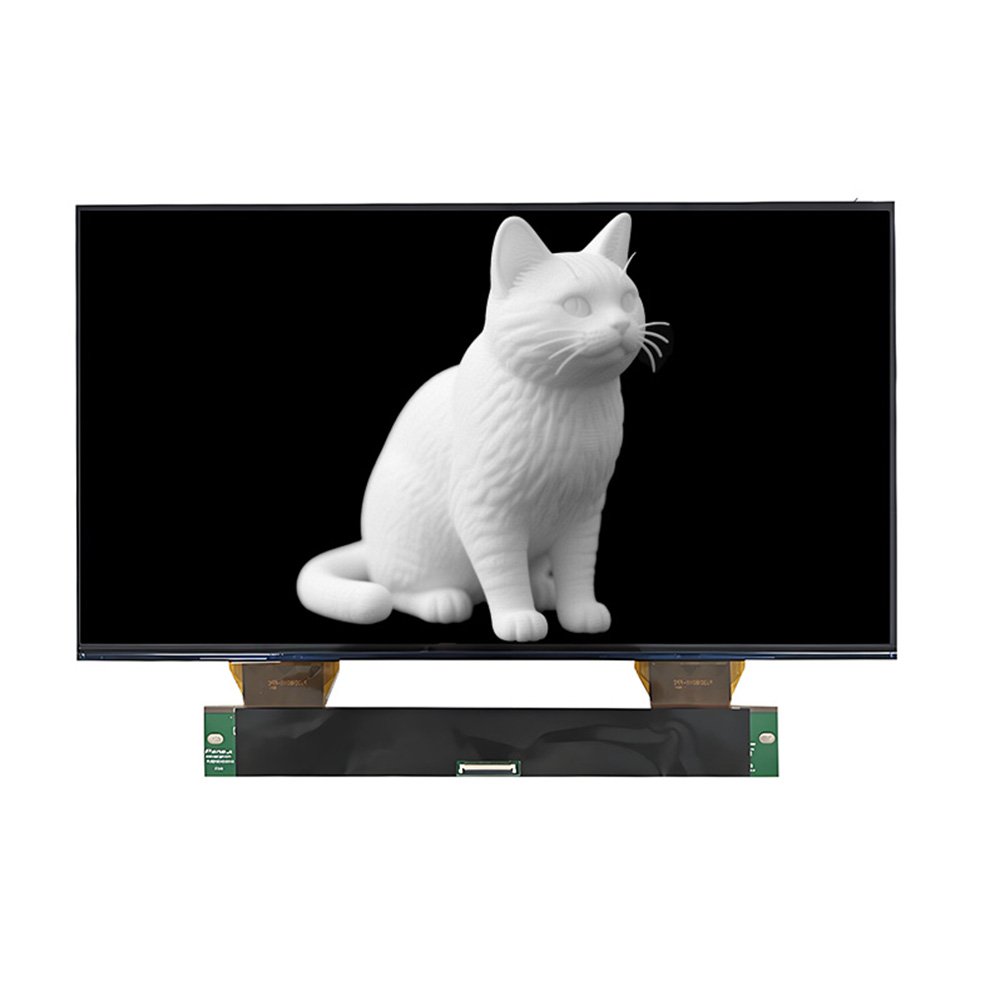

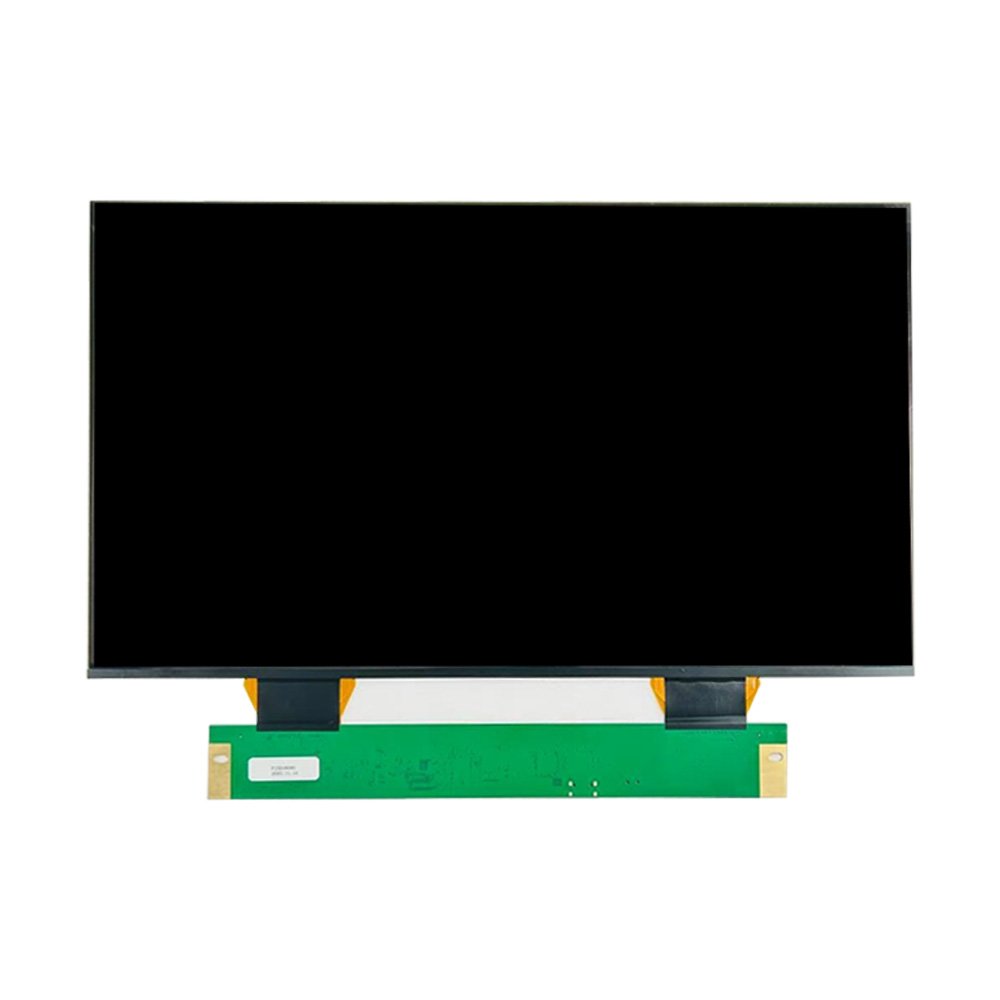

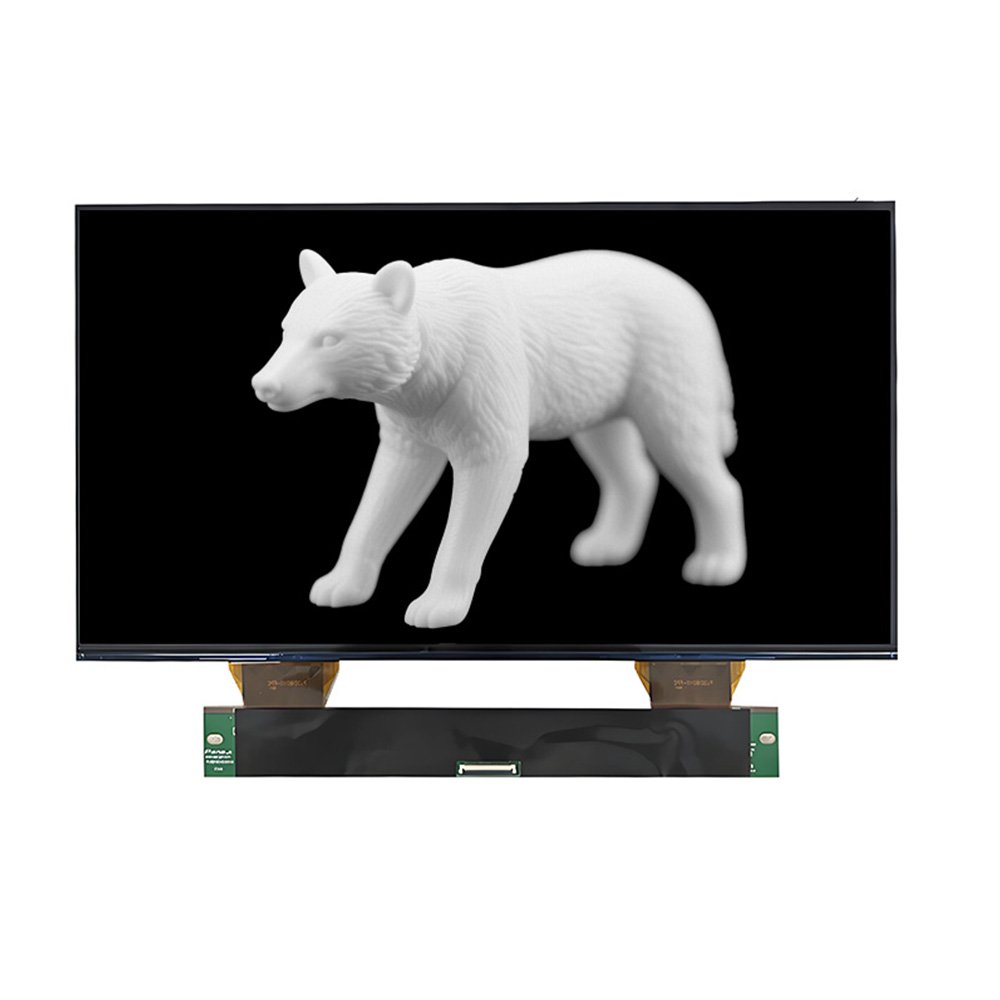

Discover our 16 - inch 8K monochrome LCD screen, a cutting - edge display solution crafted for 3D printer applications. With its ultra - high resolution of 7680x4320 pixels and compact pixel size of 0.046x0.046mm, this screen provides exceptional image clarity and detail, making it perfect for precision 3D printing tasks.

Technical Specifications

Display Type: Monochrome TFT LCD (Transmissive)

Resolution: 7680x4320 pixels

Pixel Size: 0.046x0.046mm

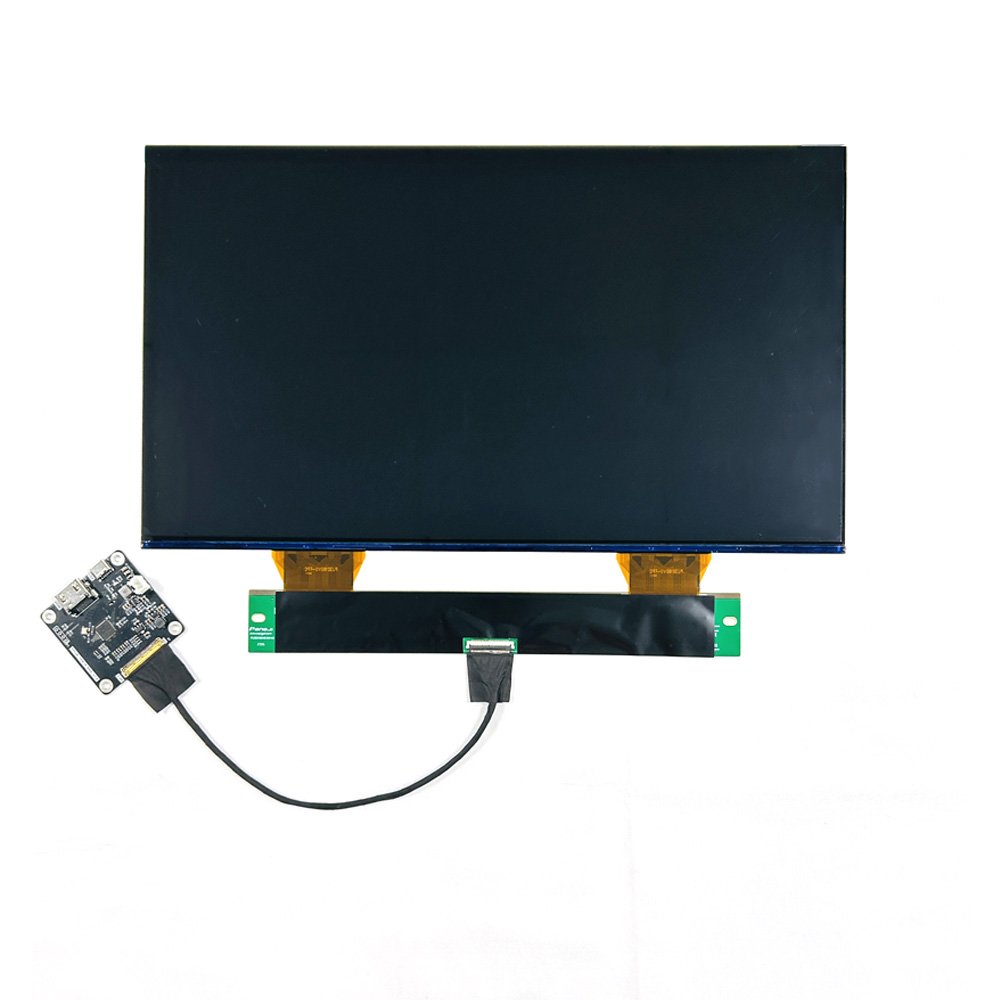

Interface Type: 4 LANE EDP

Viewing Angle: All directions

Outline Size: 358.28 (W) x207.42 (H) x1.16 (T) mm

Module Size: 16.0 inches

Viewing Size: 353.28 (W) x198.72 (H) mm

LCD Type: TFT (Monochrome)

Backlight Type: None

Operating Temperature: -20°C to 70°C

Storage Temperature: -30°C to 80°C

Interface Definition

The interface includes various functions such as Ground, Main link lanes, AUX channel, LCD logic and driver power, BIST mode enable, and HPD signal pin.

Optical Specification

Transmittance Rate (405nm): 7% - 8%

Contrast Ratio (405): 300:1 - 400:1

Response Time: 45ms (Tr+Tf)

Viewing Angle: 80° - 85° (C/R>10)

Reliability Testing

The product undergoes rigorous testing to ensure reliability, including high - temperature operating, low - temperature operating, high - temperature storage, low - temperature storage, high - temperature & humidity storage, thermal shock storage, ESD test, vibration test, and drop test.

For more information about our 16 - inch 8K monochrome LCD screen or other products, please feel free to contact us. Let us provide you with a custom display solution that suits your needs!
