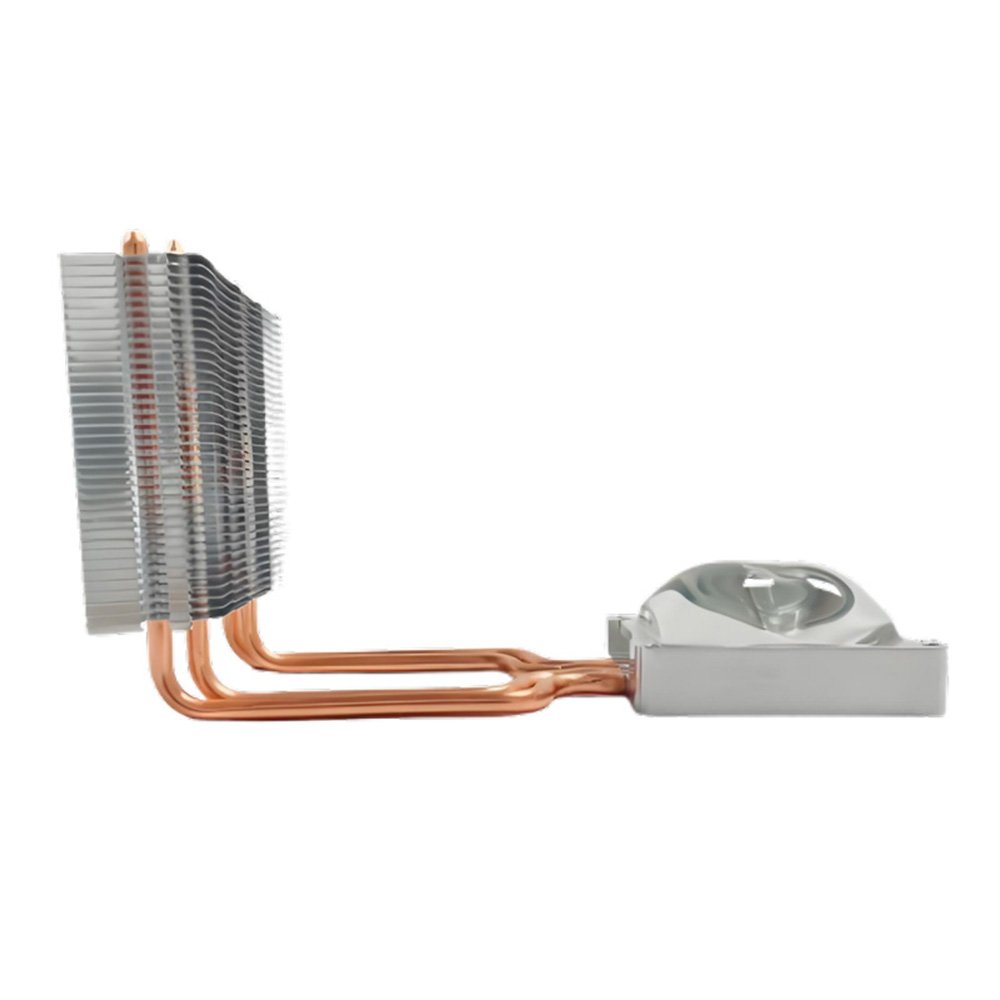

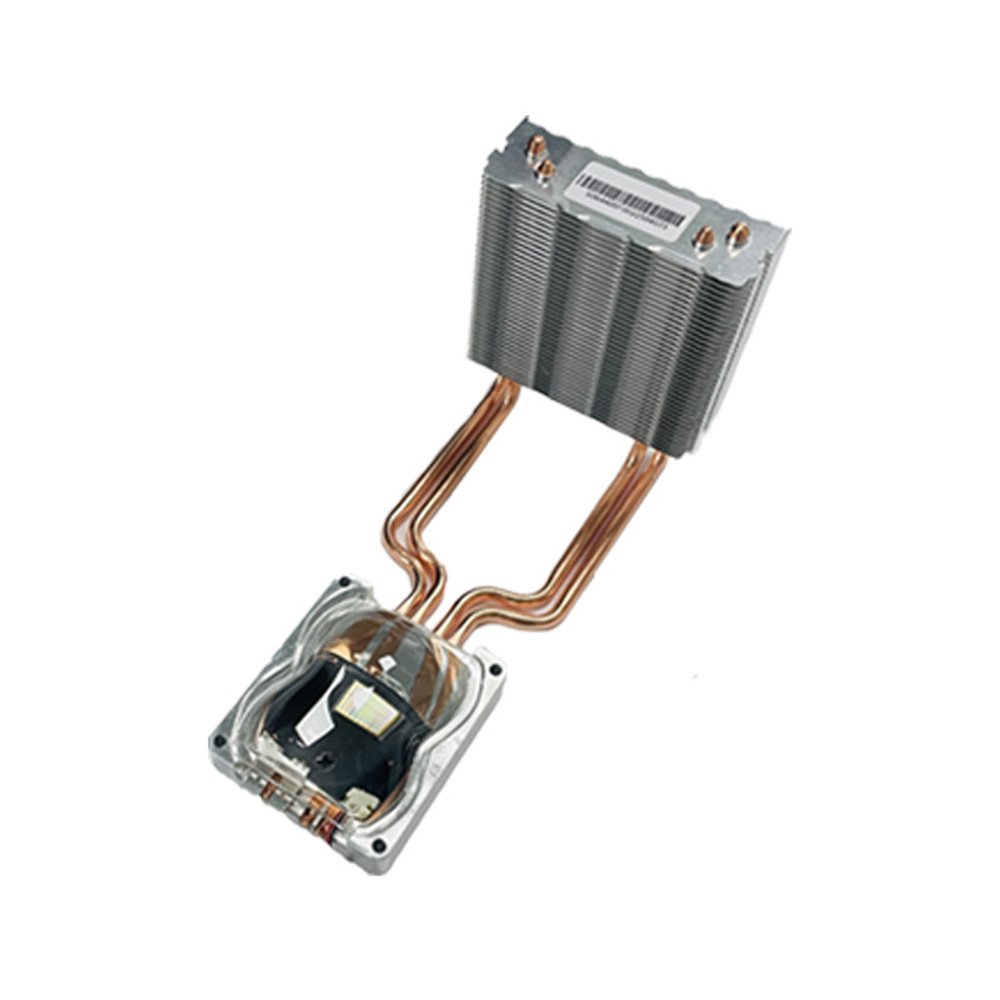

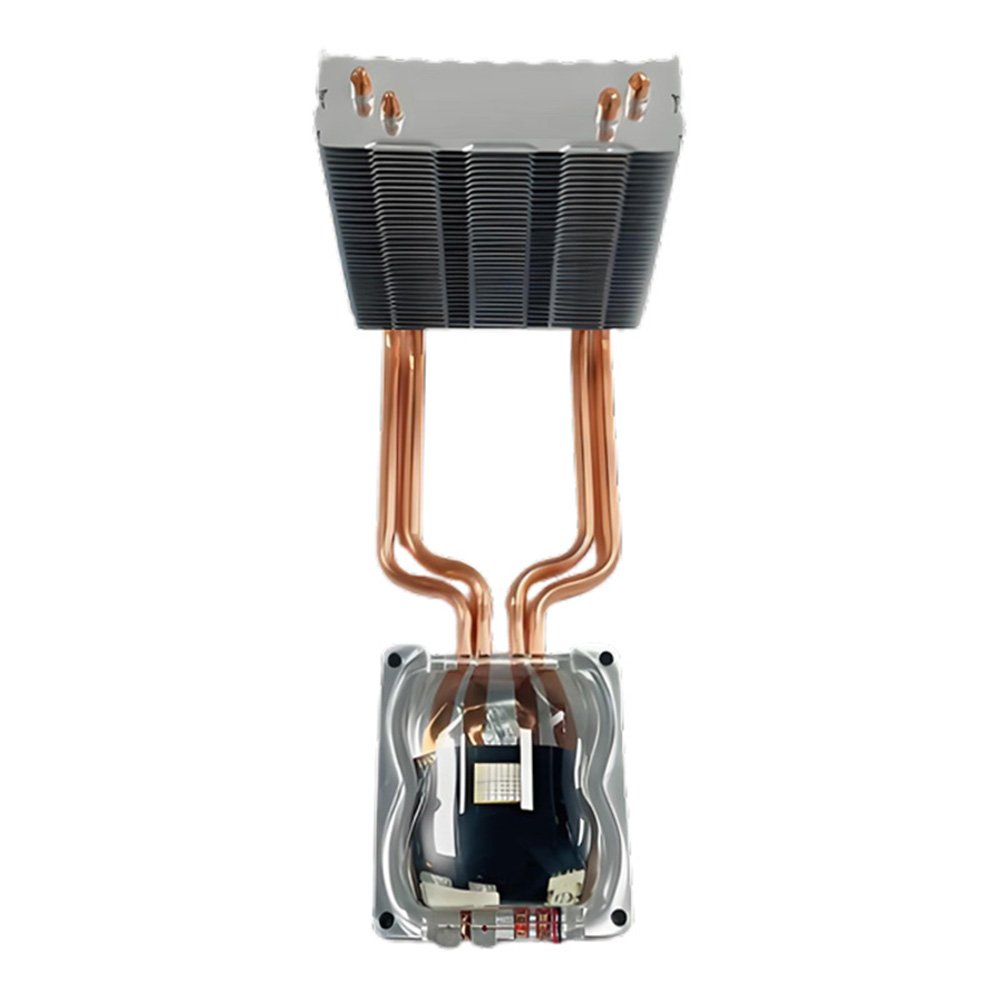

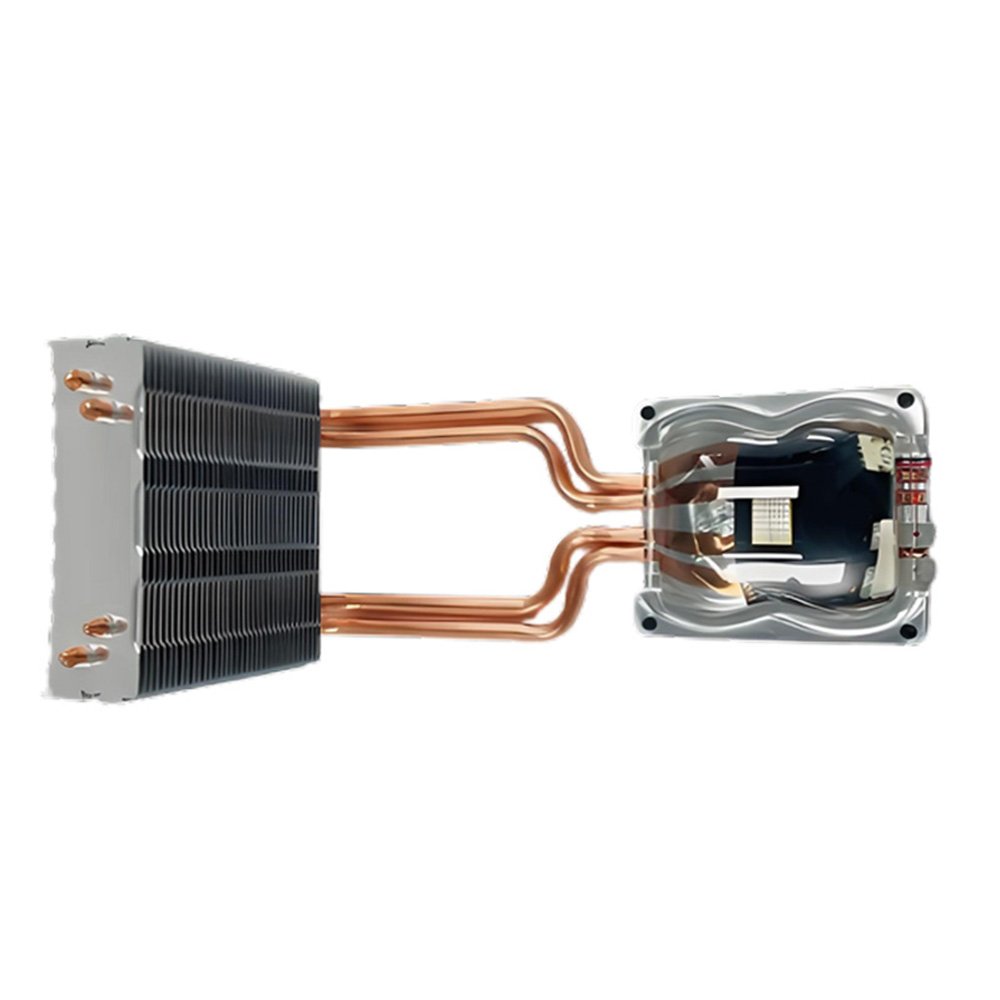

3D Printer UV Curing Light System UVA-S64 UV LED Light Source
The UVA-S64 is a high-performance UV light source from Aptus International Co., Ltd., engineered for the precise curing of 3D printer photo-curing components. This 8.9/9.1/10.1-inch light source offers parallel light technology for enhanced image boundary recognition and high contrast, crucial for detailed 3D printing. With an 8×8 LED array and a light intensity of >100mW/cm², it ensures uniform and efficient curing. Designed with a thermistor for temperature control and detailed installation guidelines, the UVA-S64 is the optimal choice for professional 3D printing applications.
UVA-S64: Precision UV Curing Light Source for 3D Printing
Elevate Your 3D Printing with UVA-S64
Discover the UVA-S64V03, a high-performance UV LED light source designed for precise 3D printing applications. This advanced light source ensures optimal curing of photo-curing components, enhancing the quality and accuracy of your 3D prints.
Key Highlights
Parallel Light Technology: Reduces diffuse reflection and enhances image boundary recognition with high contrast, ideal for detailed 3D printing.
High-Intensity Output: Delivers light intensity of >100mW/cm² for efficient and effective curing.
Even Light Distribution: Achieves ≥85% evenness for uniform curing across the surface.

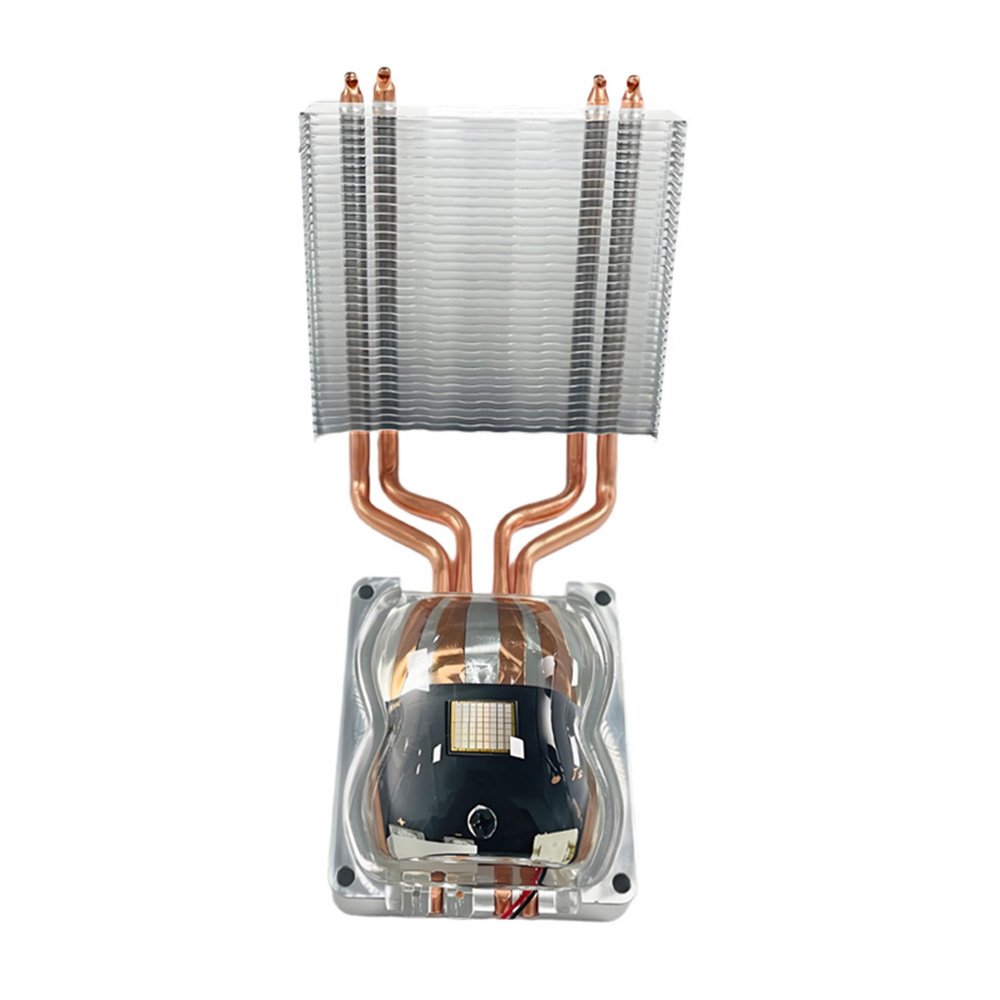

LED Array: Features an 8x8 matrix of LEDs in a 16 series and 4 parallel configuration for a robust and consistent light source.
Technical Specifications
The UVA-S64 operates on an input voltage of 53-56V and an input current of 3.2-3.8A (with a recommended 3.5A). Its light intensity exceeds 100mW/cm² as measured by the Linshang LS125 UV radiometer probe UVALED-X3.
Structural and Installation Details
Fresnel Lens:The Fresnel lens is designed for ideal parallel light, with detailed dimensional drawings for precise installation. The recommended distance between the Fresnel lens and the heat sink base is 131-133mm.
Horizontal Positioning:Align the center of the Fresnel lens with the center of the LED lamp to ensure optimal light distribution.
Distance to LCD:The optimal distance between the Fresnel lens and the LCD is within 0-6mm.
Temperature Management:Equipped with an induction NTC thermistor for precise temperature measurement and control within the working temperature range of -55℃ to +125℃.
Why Choose UVA-S64?
Precision Curing: Ensures precise curing of 3D printer photo-curing components.
Efficiency: High-intensity output and even light distribution enhance the efficiency of your 3D printing process.
Reliability: Robust structural design ensures reliable performance in demanding 3D printing applications.
