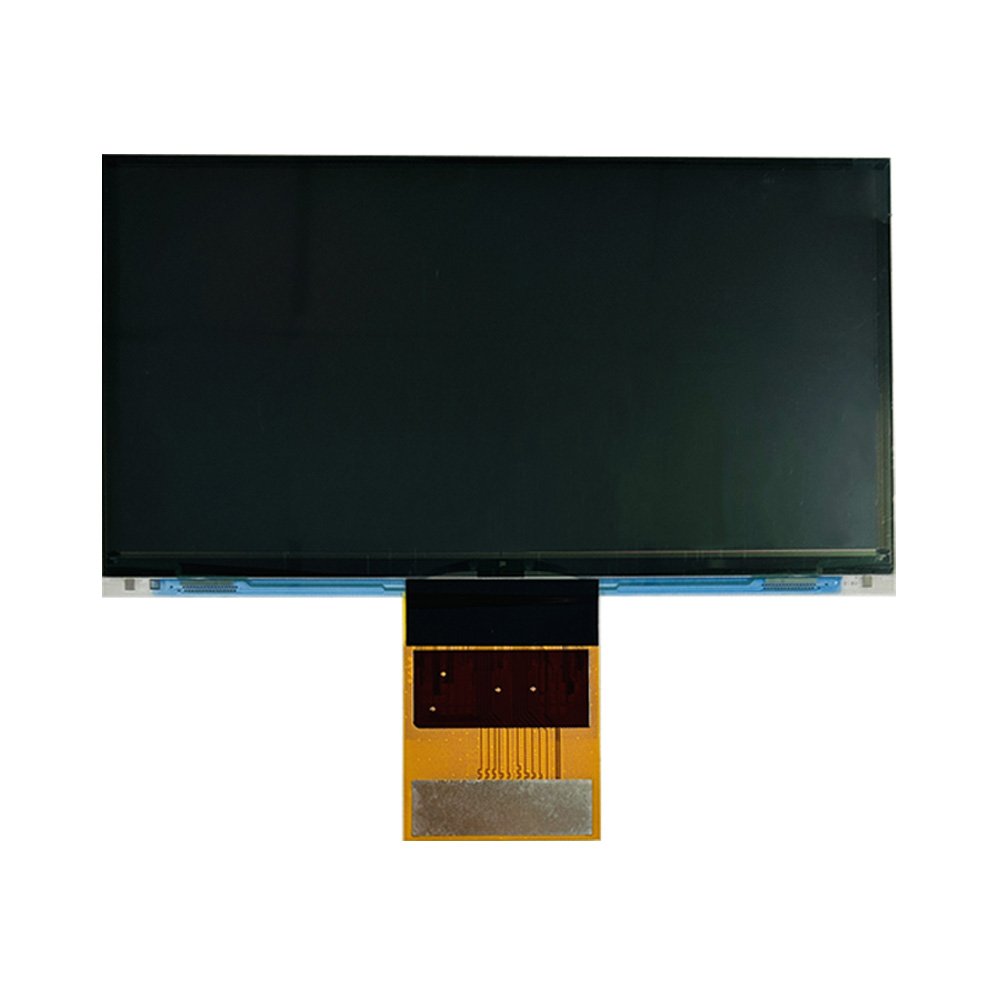

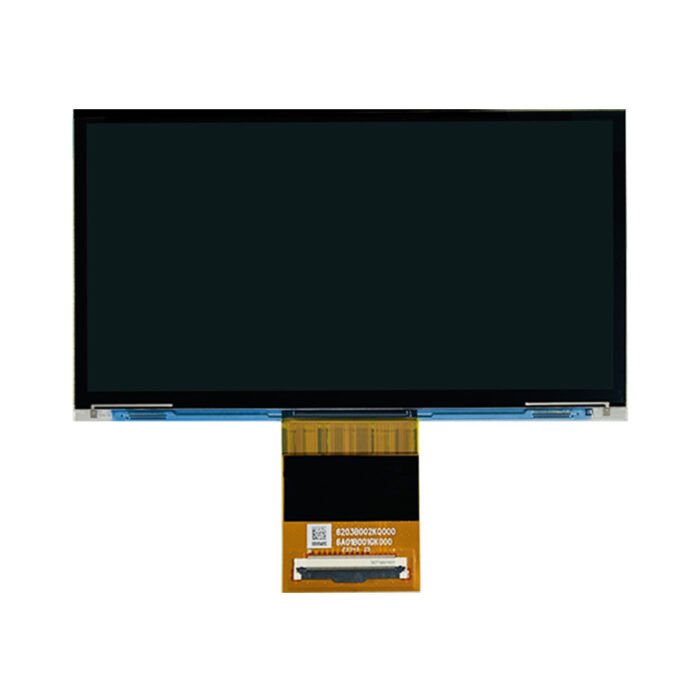

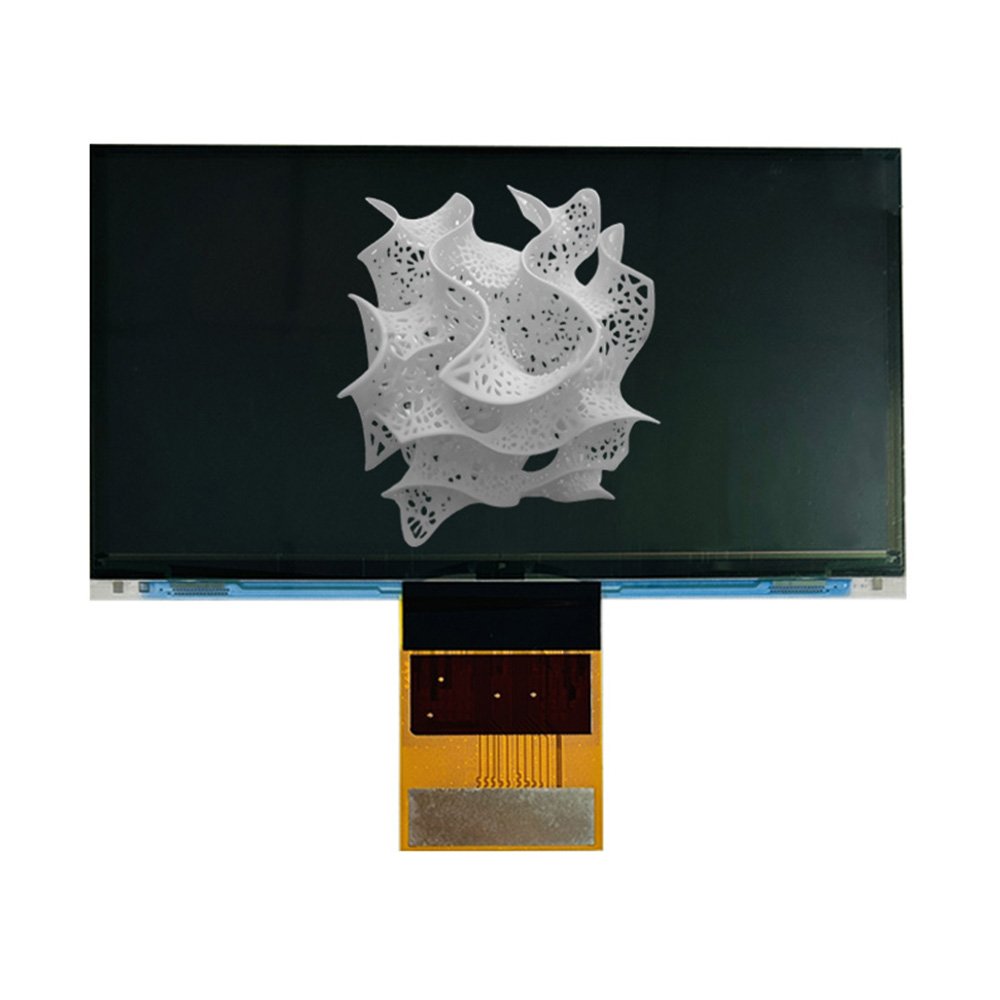

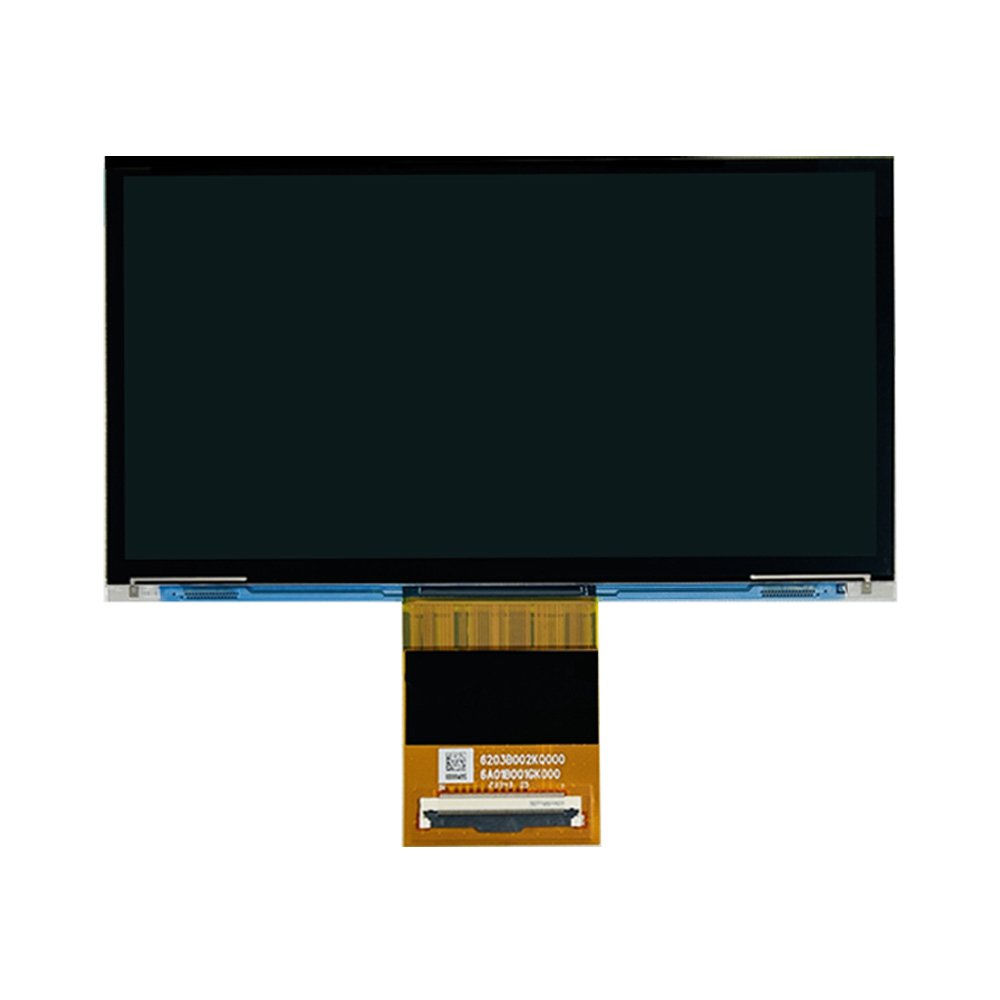

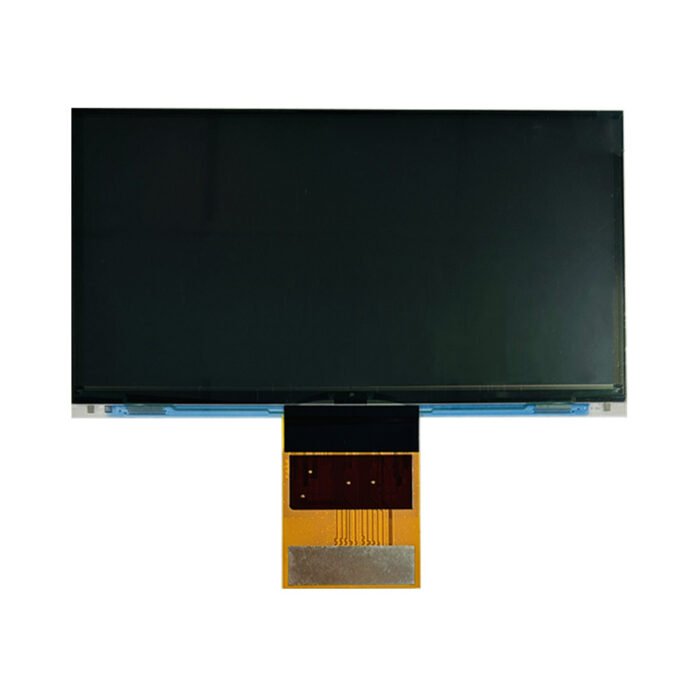

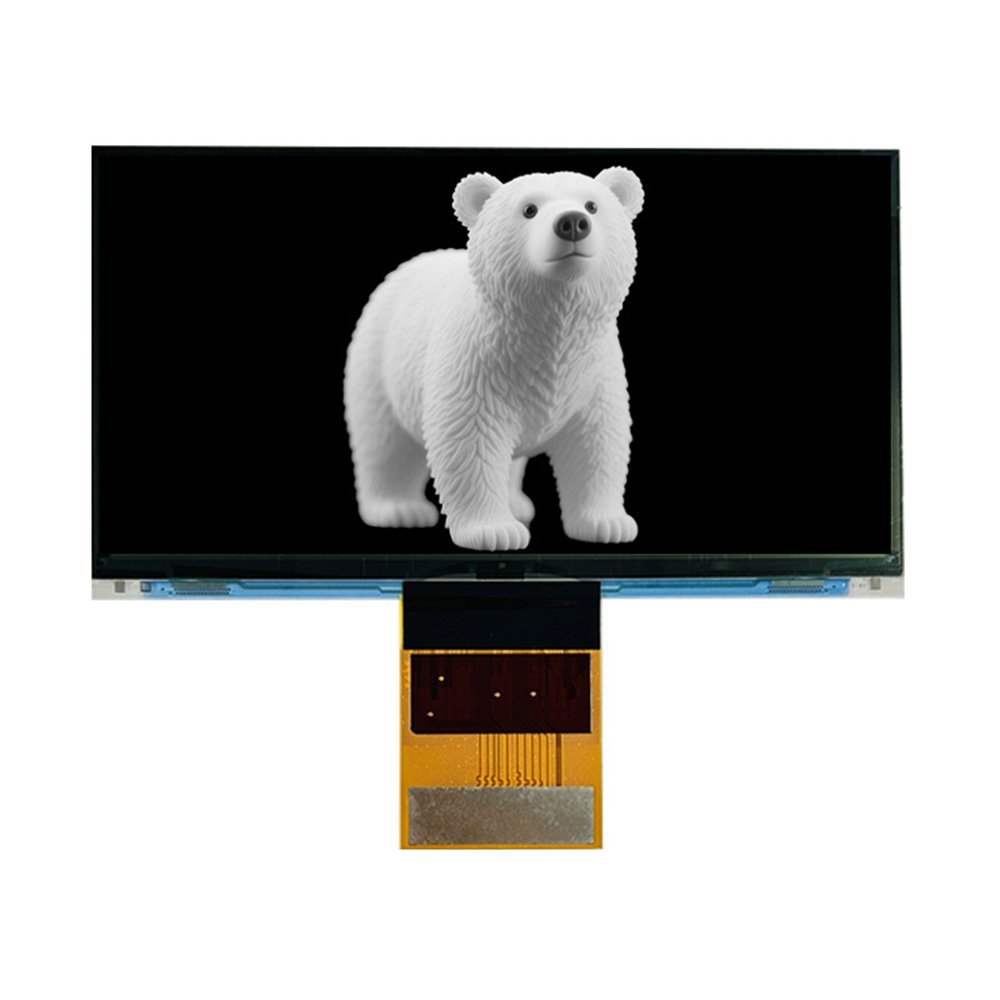

6.8 Inch 9K 8520×4320 MONO LCD Screen

6.8-inch Mono LCD Screen for 3D Printers: High-Resolution Clarity and Precision

If you're in the market for a high-quality LCD screen for your 3D printer, our 6.8-inch Mono LCD Screen is the perfect choice.  This advanced display module is designed to meet the demands of precise 3D printing applications, offering exceptional clarity and reliability.

Key Features

- High Resolution: With a resolution of 8520 x 4320 pixels and a dot pitch of 18 x 18 μm, this screen delivers incredibly sharp and detailed images, making it ideal for intricate 3D printing tasks.

- Transmissive MONO Technology: Utilizing LTPS TFT technology, this display provides consistent color reproduction and wide viewing angles, essential for accurate and comfortable viewing in various printing environments.

- Robust Design: Built with a glass panel, this display is designed to withstand the rigors of industrial use, making it a reliable choice for 3D printer applications.

- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this display is an environmentally responsible choice.

Technical Specifications

- Model Number: DBM068M9K01

- Screen Size: 6.8 inches

- Resolution: 8520 x 4320 pixels

- Dot Pitch: 18 x 18 μm

- Display Mode: Normal black

- Active Area: 153.36mm (H) x 77.76mm (V)

- Outline Dimensions: 161.36mm (W) x 89.88mm (H) x 1.22mm (D)

- Weight: 43g

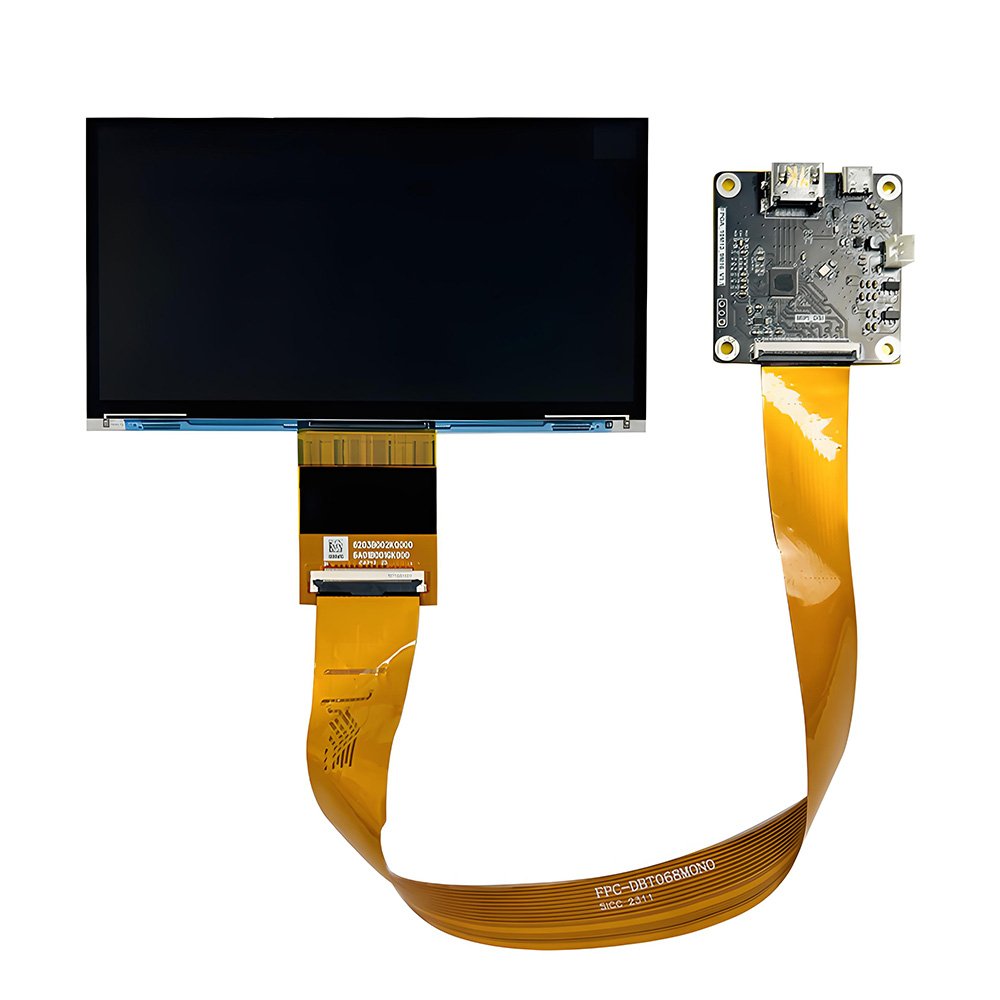

- Interface: MIPI D-PHY 2 port 8 lane

- Frame Rate: Typ. 20Hz

- Contrast Ratio: 300 (Min.) @ 405nm BL

- Panel Transmittance: 4% (Typ.) @ 405nm BL

Reliability

- Operation Temperature: 0℃ to 70℃

- Storage Temperature: -10℃ to 80℃

Our 6.8-inch Mono LCD Screen is the perfect choice for enhancing your 3D printing experience.  Contact us today for more information or to place an order!
