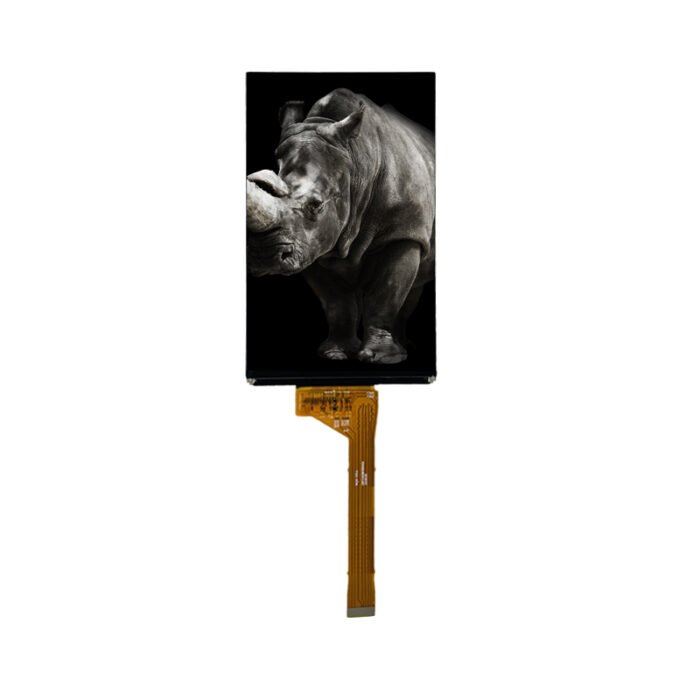

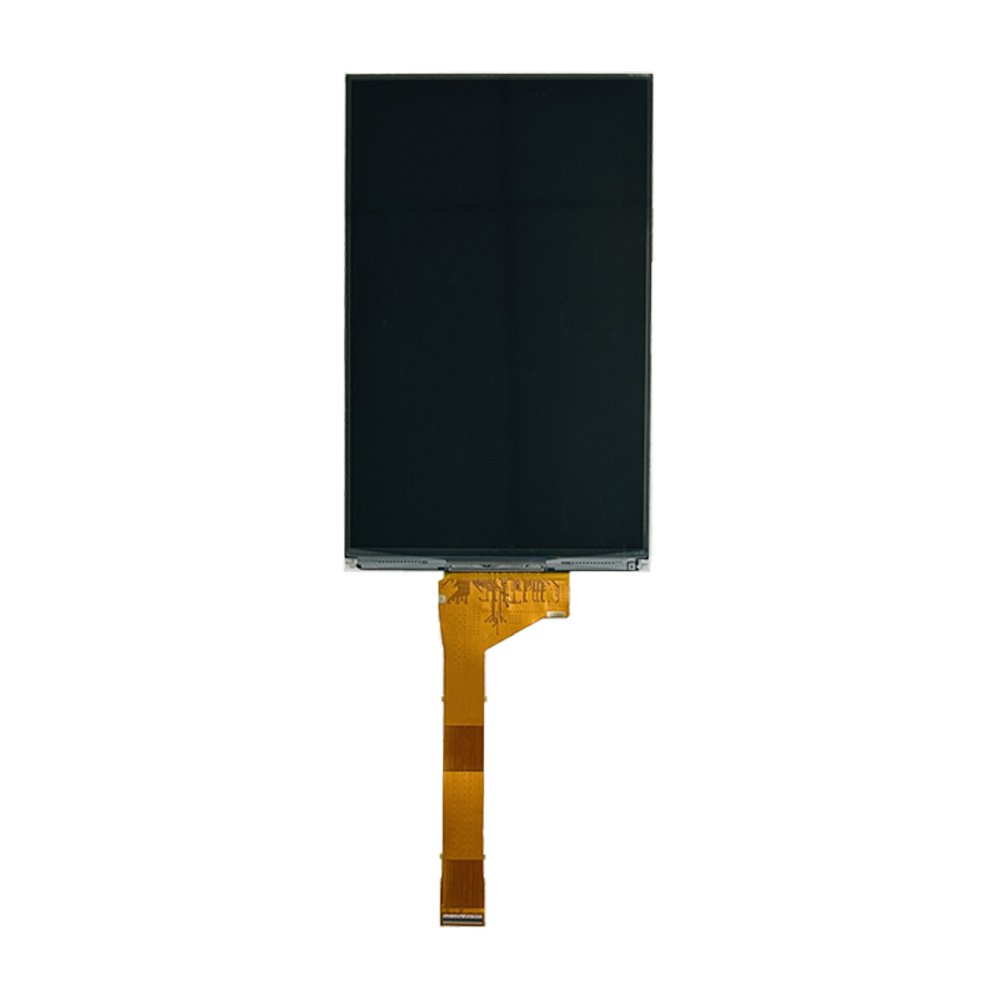

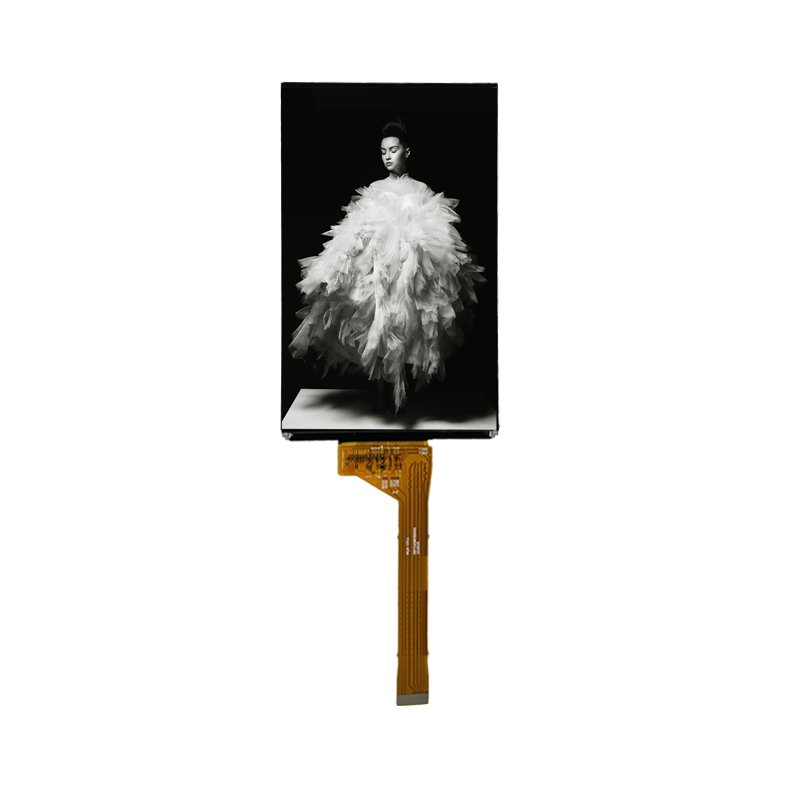

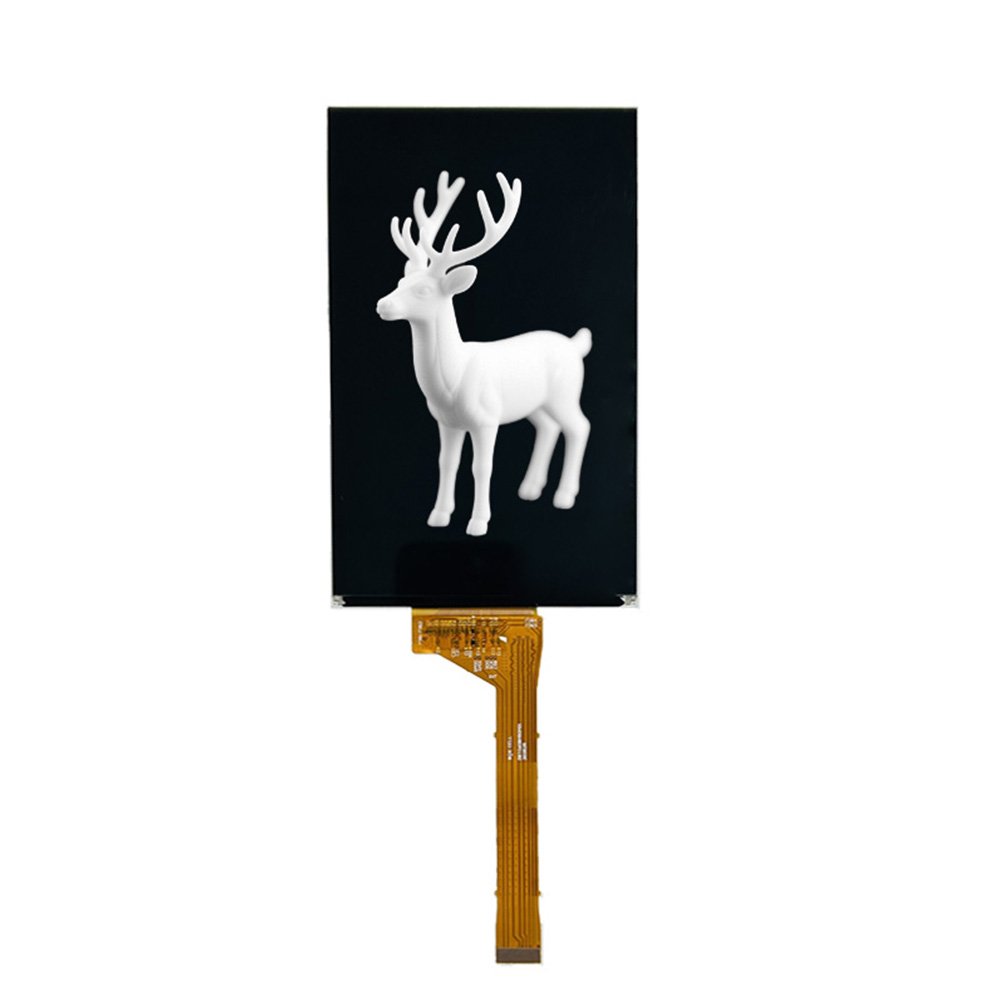

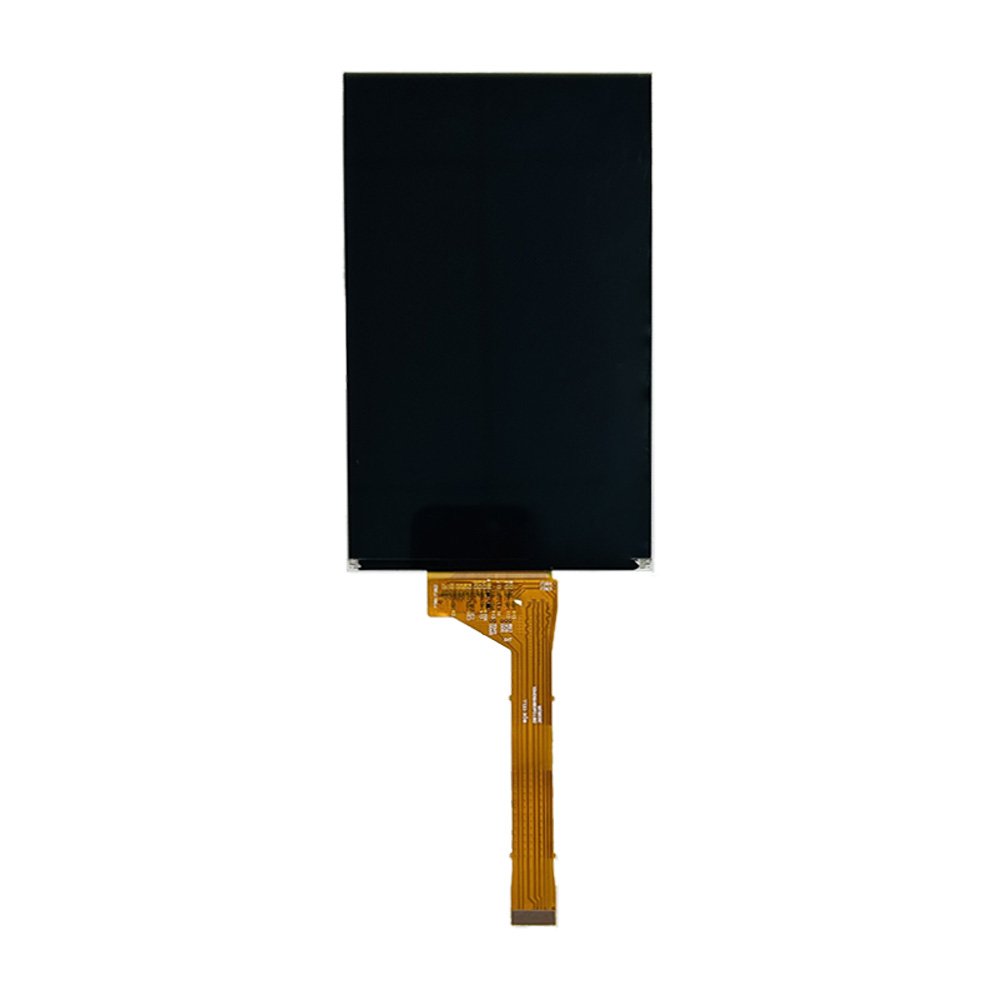

6 Inch 2K 1620×2560 50PIN MONO LCD Screen

6 Inch 1620X2560 Mono LCD Screen for 3D Printers

Overview

Step into the future of 3D printing with our top - notch 6 - inch monochrome LCD screen.Designed to deliver sharp and detailed visuals, this screen is perfect for anyone looking to enhance their 3D printing experience.

Key Features

- Sharp Display: With a resolution of 1620x2560, our LCD screen brings out the finest details of your 3D prints, ensuring clarity and precision like never before.

- Fast Response: A quick response time of 35 - 40 ms keeps up with the dynamic nature of 3D printing processes, reducing motion blur and enhancing overall image quality.

- Excellent Viewing Angles: Minimum viewing angles of 80° ensure you can monitor your prints from various angles without significant loss of contrast or clarity.

- Eco - Friendly: Compliant with RoHS standards, our LCD screen is made with the environment in mind, giving you peace of mind while you work.

Technical Specifications

- Display Size: 6 inches

- Resolution: 1620 (Horizontal) x 2560 (Vertical) pixels

- Pixel Pitch: 50 (Horizontal) x 50 (Vertical) micrometers

- Display Mode: Normally Black, Transmissive Mode

- Dimensions: 84.6 (Horizontal) x 135.85 (Vertical) x 1.1 (Depth) mm

- Active Area: 81 (Horizontal) x 128 (Vertical) mm

- Contrast Ratio: 400:1 (typical)

- Transmittance: 4.0% (typical)

- Operating Voltage: 5.2 - 5.8 V (Ta = 25℃)

- Operating Temperature: 0 - 70℃

- Storage Temperature: -10 - 80℃

- Connector: JAE WP7B - P050VA1 - R500 or compatible

- Pin Assignment: 50 - pin MIPI interface with GND, VSN, VSP, and differential signals

Conclusion

Our 6 - inch monochrome LCD screen is a reliable and high - performance choice for 3D printing applications. With its sharp display, fast response time, and excellent viewing angles, it provides an enhanced viewing experience. Plus, its eco - friendly nature makes it a responsible choice for the environment.
