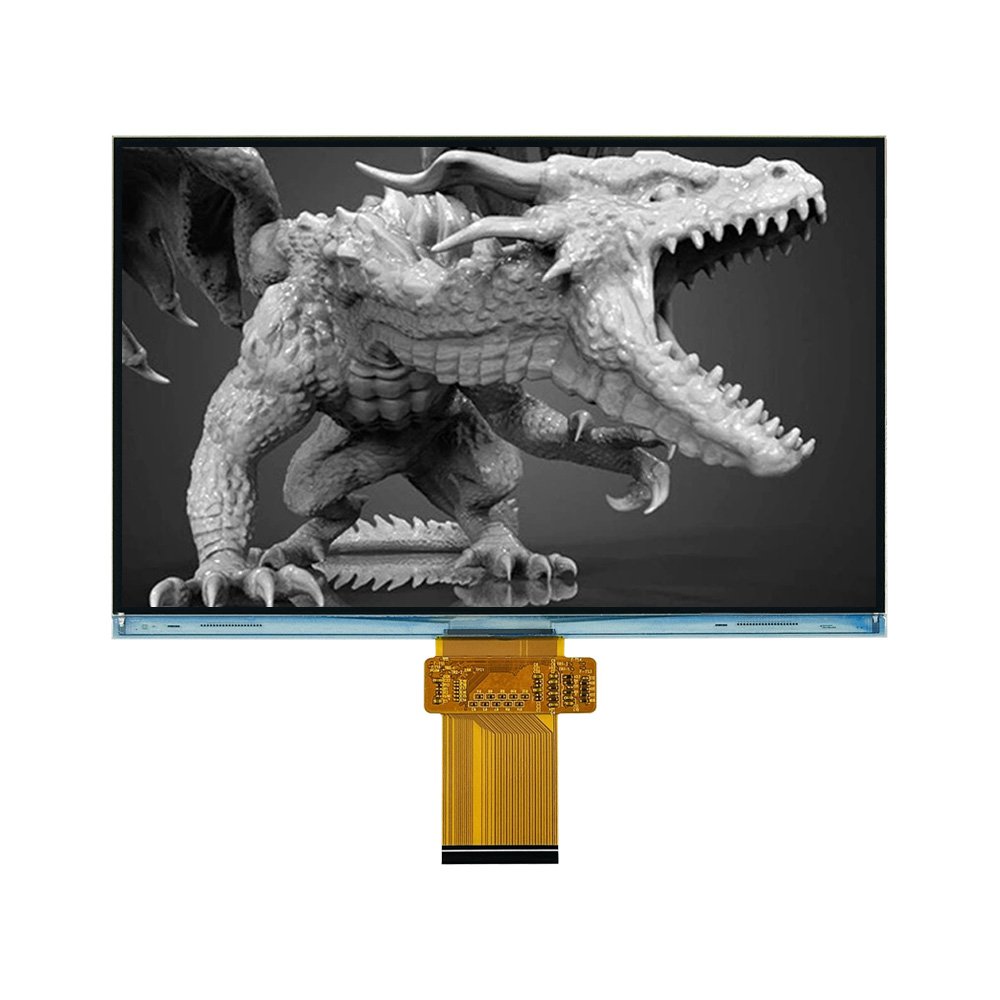

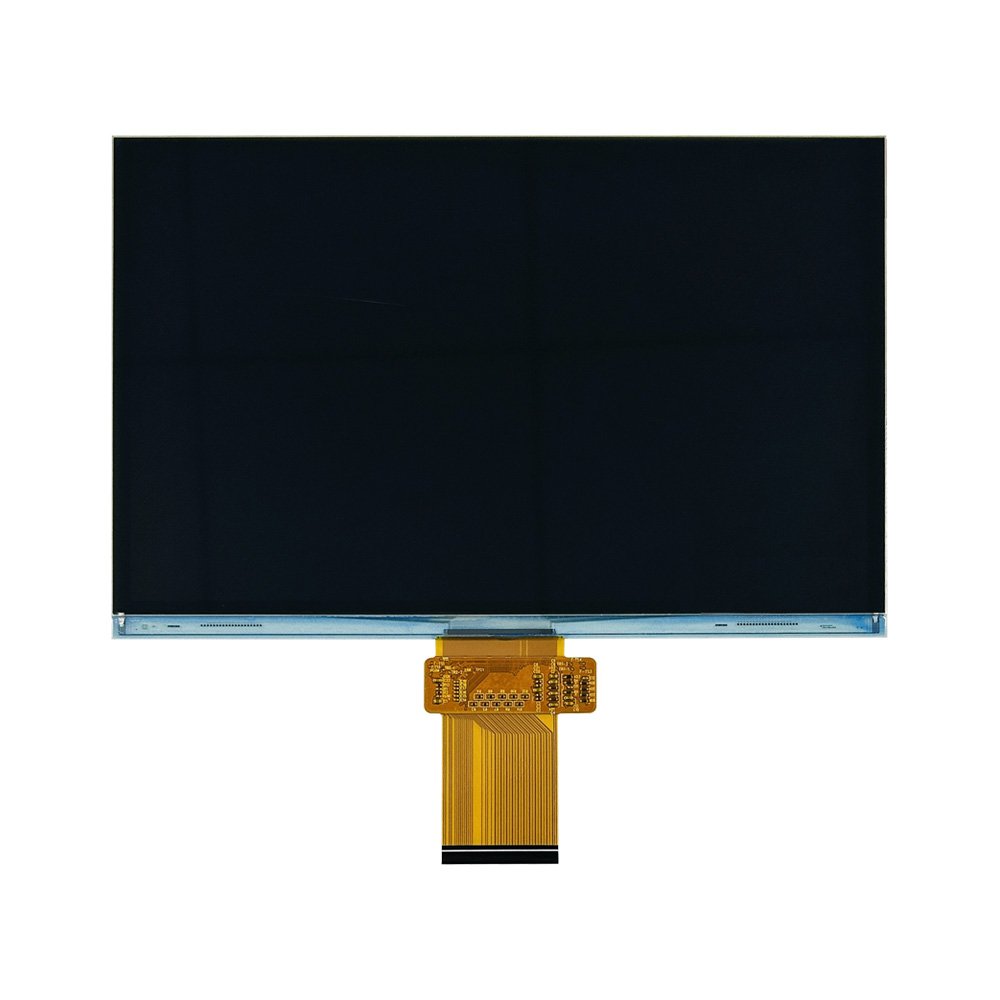

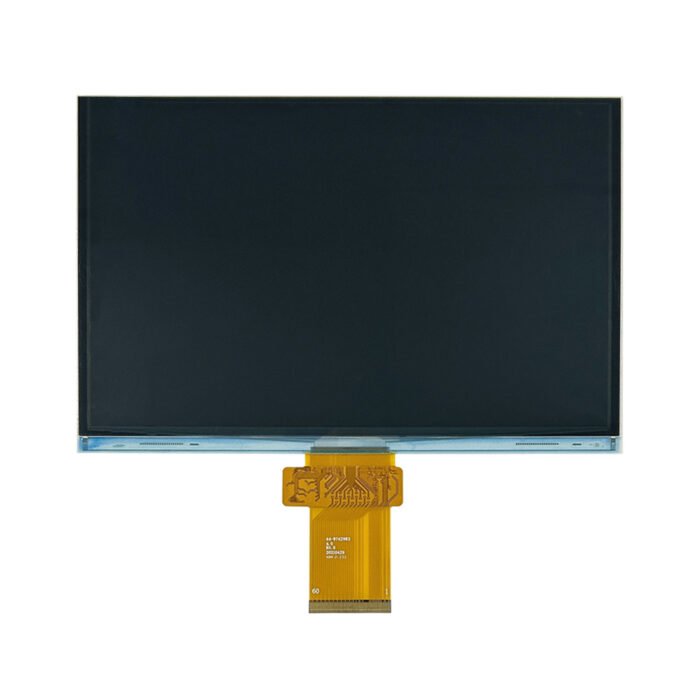

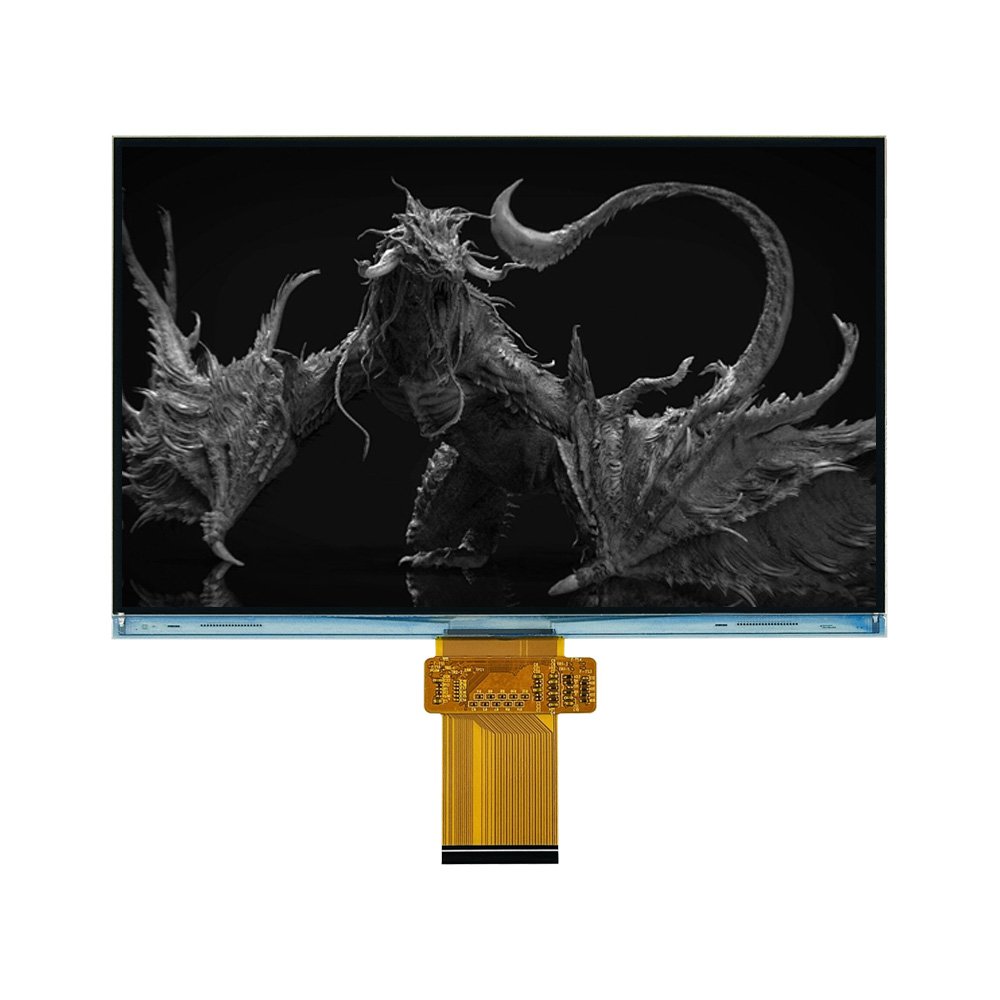

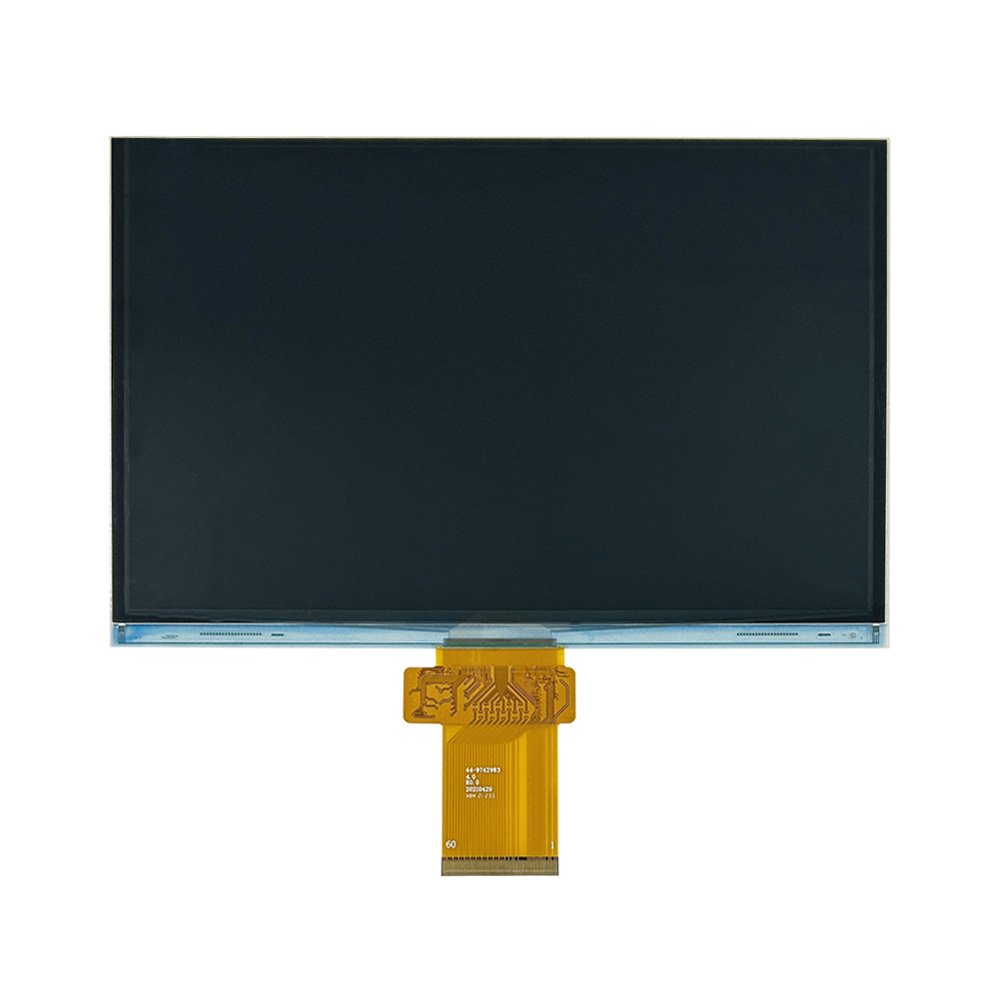

8.9 inch 4K 3840×2400 LVDS MONO LCD Screen
►Size:8.9 inch
►Model:DBM089L4K01
►Resolution:3840*2400 dots
►Interface:60Pin LVDS
►Active Area:192.0*120.0mm
►Outline dimensions:202.0*133.0mm
►Operating Temperature : -20~+70℃
🖥️ 8.9-Inch 4K Mono LCD Screen for 3D Printers
The DBM089L4K01 is an advanced 8.9-inch monochrome LCD screen offering a 3840×2400 resolution, ideal for high-precision 3D printing applications. Its high pixel density ensures sharp and detailed prints, making it suitable for both professional and hobbyist use.
📊 Product Specifications
| Feature | Specification |
|---|---|
| Model | DBM089L4K01 |
| Resolution | 3840×2400 pixels |
| Display Type | Monochrome LCD |
| Interface | 60-pin LVDS |
| Active Area | 192.0 × 120.0 mm |
| Outline Dimensions | 202.0 × 133.0 mm |
| Pixel Pitch | Approximately 0.050 × 0.050 mm |
| Brightness | High brightness suitable for resin curing |
| Viewing Angle | Wide viewing angle for consistent image quality |
| Color Depth | Monochrome (1-bit) |
🛠️ User Experience & Applications
-
High Resolution: The 3840×2400 resolution provides exceptional detail, enhancing the quality of 3D prints.
-
Monochrome Display: Monochrome screens are known for faster curing times, improving printing efficiency.
-
Wide Compatibility: The 60-pin LVDS interface ensures compatibility with a range of 3D printers.
-
Durability: Designed for long-term use, offering reliable performance in demanding printing environments.
🏭 About Duobond Solutions
Duobond Solutions, a sub-brand of Shenzhen APTUS Technology Co., Ltd., specializes in providing innovative LCD and UV light systems for 3D printing applications. Our product range includes high-performance LCD screens, UV light sources, and driver boards, designed to meet the diverse needs of the 3D printing community. With a commitment to quality and customer satisfaction, Duobond Solutions aims to be a trusted partner in advancing 3D printing technologies.
