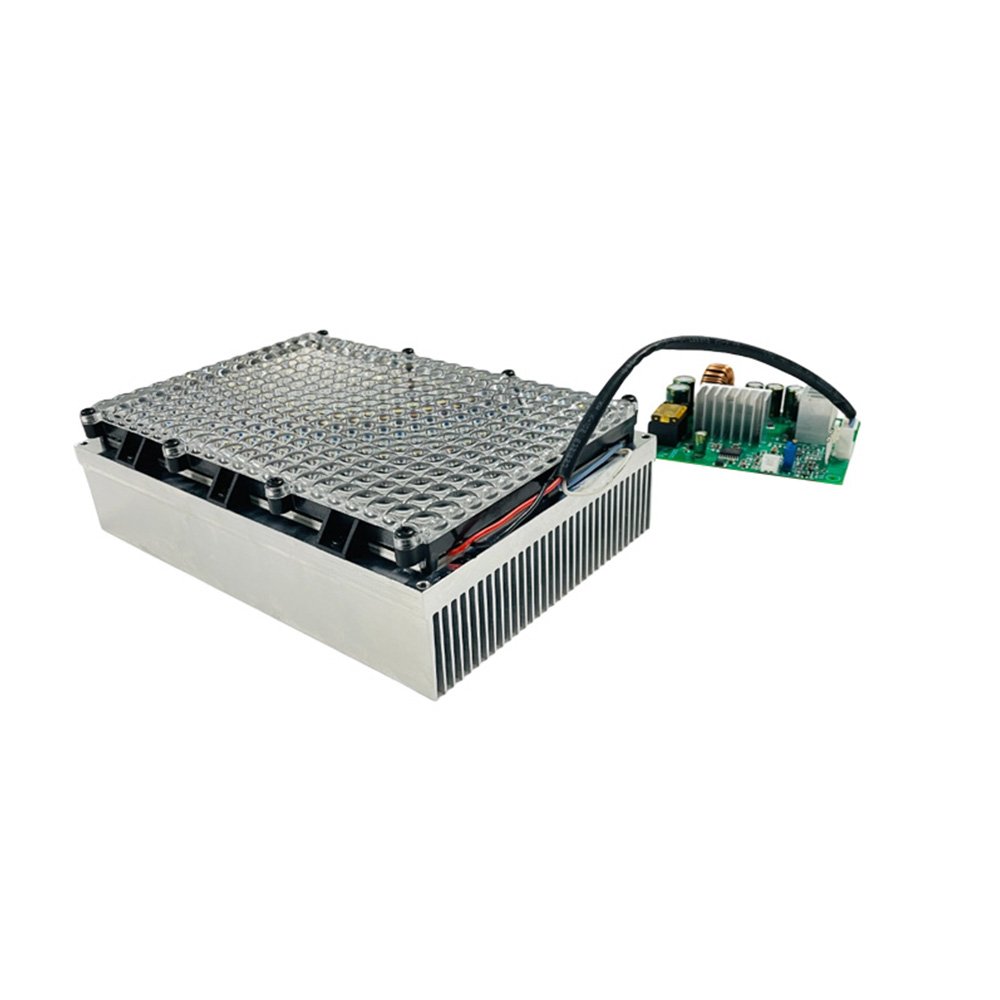

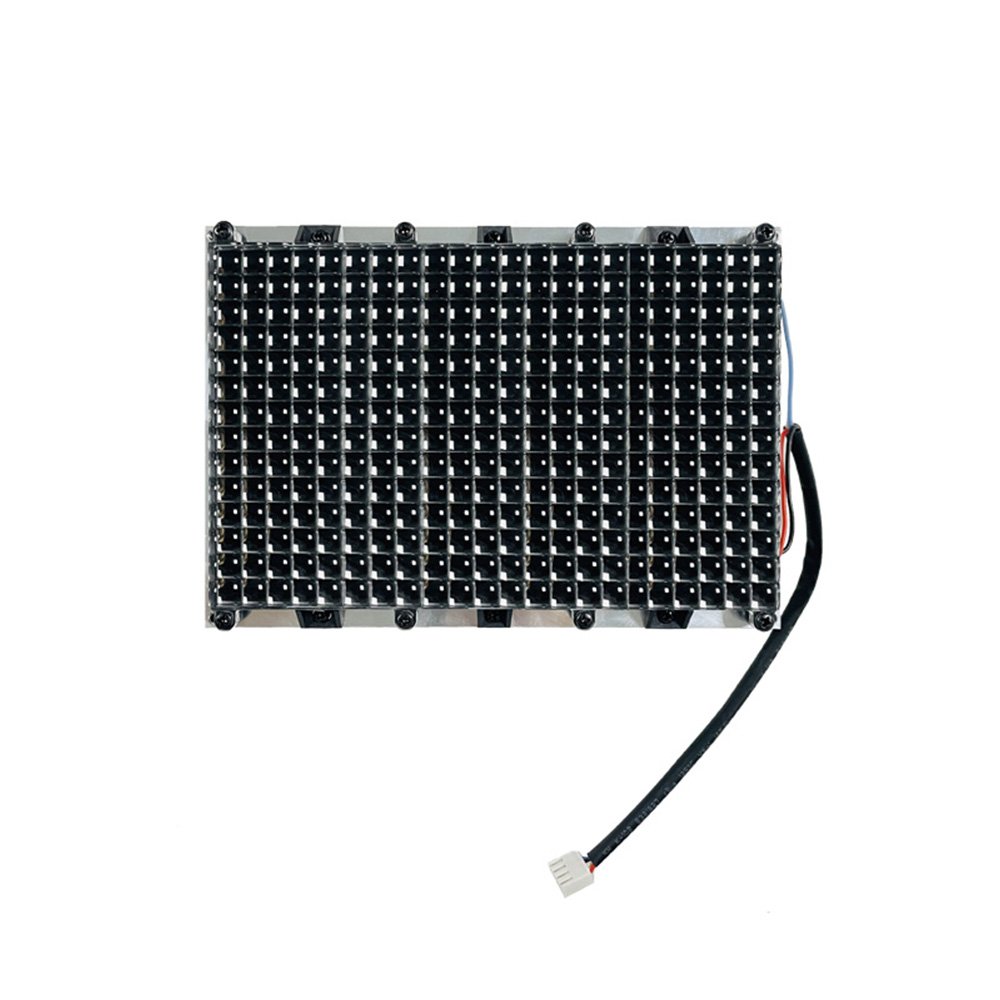

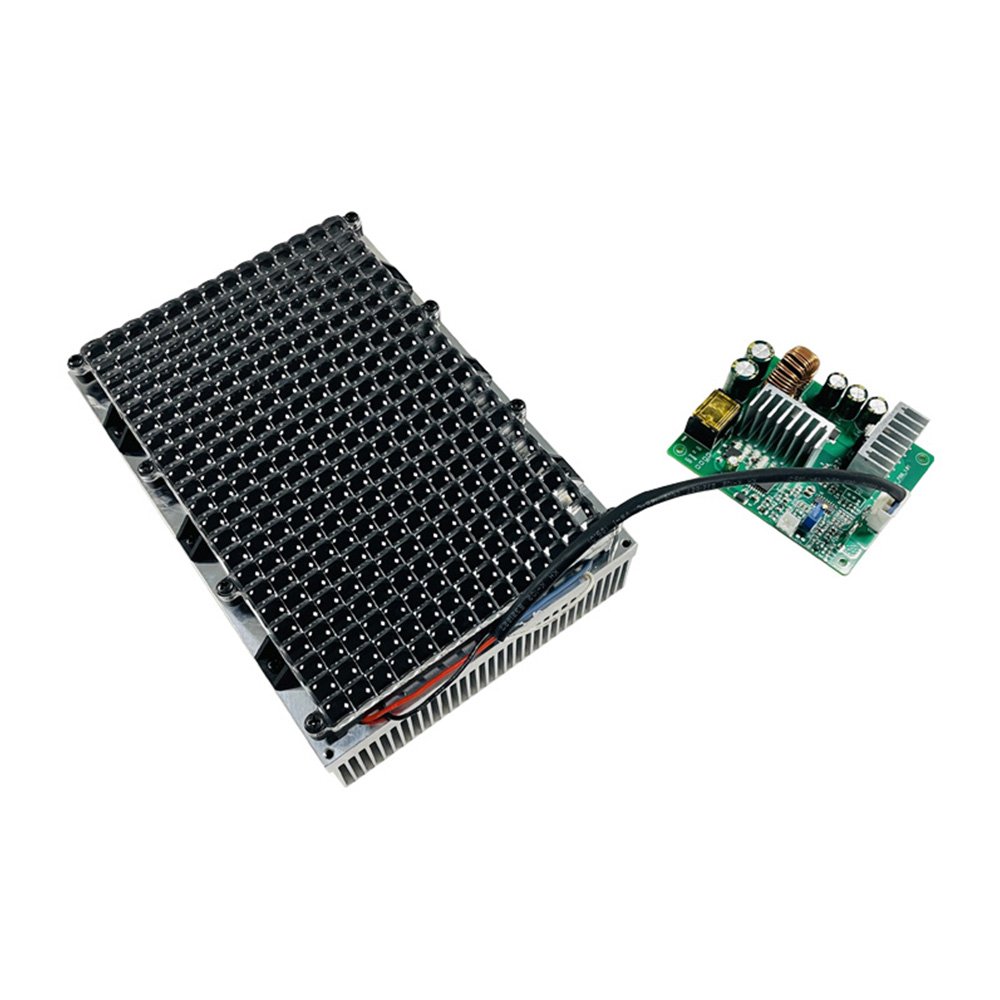

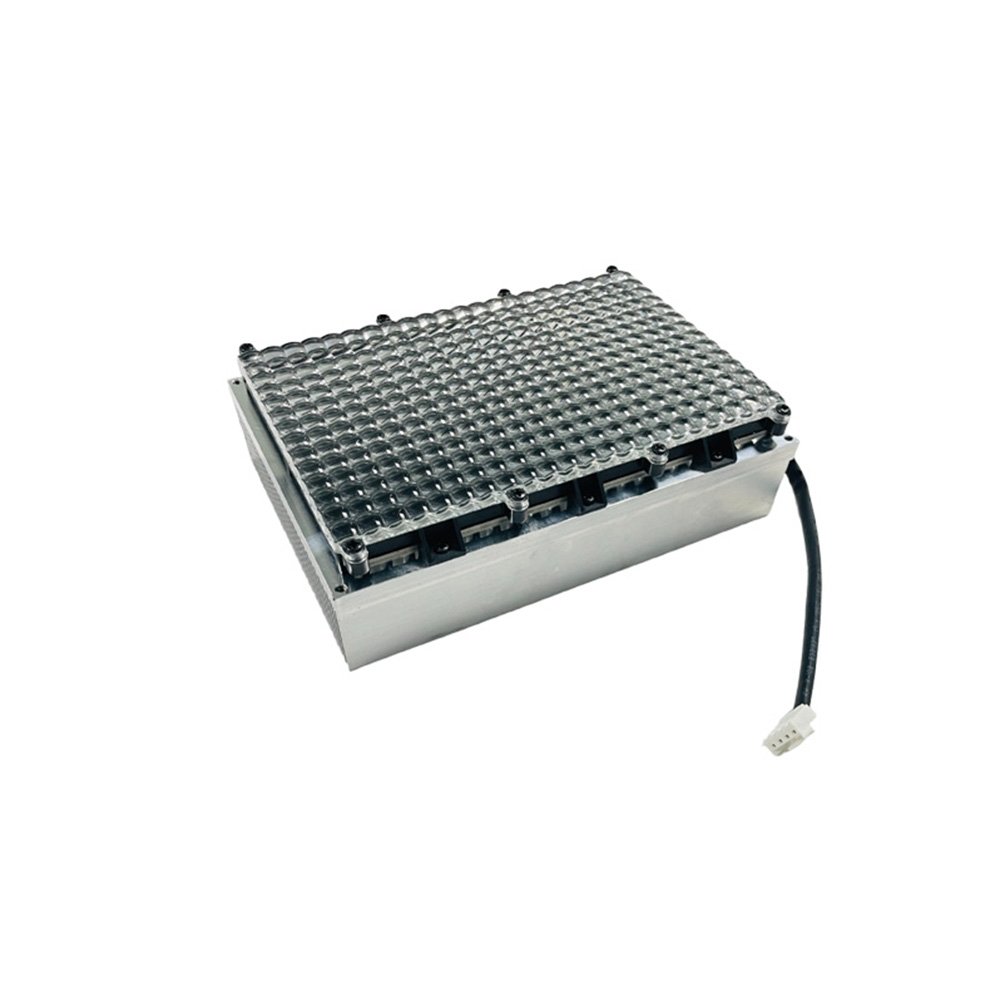

UVA-A308 3D printer UV Light Source For 8.9 Inch MONO LCD
Our UV Light Unit 8.9″ is a high – performance UV light source for 3D printers. With a parallel light source design, it reduces diffuse reflection, enhancing image boundary recognition. It offers a UV wavelength of 400 – 405nm, 130 – 150mW/cm² energy, and 88% evenness. Supporting PWM dimming and precision resistance dimming, it ensures precise control and efficient resin curing. Perfect for high – precision 3D printing.
🌟 Product Showcase: UVA-A308 High-Power UV Light source
Experience unparalleled precision and quality with the Duobond UVA-A308 High-Power UV Light Source, featuring parallel light technology for exceptional 3D printing performance.
🛠️ Key Features & User Benefits
-
High Precision Parallel Light – Minimizes diffuse reflection for high-contrast edges, reducing the transition zone from 0–256 to just 3 pixels. Ideal for intricate, high-precision measurements.
-
Optimized 3D Printing Performance – Energy value: 130–150 mW/cm², evenness: 84%. Suggested cure time: 5s for 0.05 mm layer (EX3500G resin).
-
Robust and Reliable Design – Powerful driver board ensures stable operation and long service life.
📋 Detailed Product Specifications
| Feature | Specification |
|---|---|
| Model Name | DBL89G02 |
| Energy Value | 130–150 mW/cm² |
| Evenness | 84% |
| UV Wavelength | 400–405 nm |
| Suggested Cure Time | 5 s for 0.05 mm layer (EX3500G resin) |
| Lens-to-LCD Distance | 50–60 mm |
| Driver Board Input | DC24V / 15A |
| Driver Board Output | 30–50V |
| Driver Board Power | Max 170W |
| Driver Board Dimensions | 100 mm × 80 mm |
| Maximum Height | 28 mm |
🏭 Application Scenarios
-
Professional 3D Printing – Achieve sharp details and defined edges.
-
Rapid Prototyping – Fast, reliable curing times accelerate development.
-
Industrial Inspection – High contrast and precision ideal for quality control and measurement.
🏢 About Duobond Solutions
Duobond, a sub-brand of Shenzhen APTUS Technology Co., Ltd., is a technology-driven enterprise dedicated to creating lasting value for customers and society.
Vision: Empower 3D printing technology and transform the world.
Mission: Founded in 2007 in the LCD industry, expanded into 3D printer components in 2015, partnering with 200+ 3D printer companies worldwide.
Expertise: Proprietary UV light sources, 8.9″ & 10.1″ LCD modules, driver boards with high contrast, long lifespan, and multiple pixel size options. Full-range 3D printer LCD solutions globally.
🤝 Contact & Collaboration
Elevate your 3D printing projects with superior technology. Contact us:
👉 Request a quote or sample
📧 Or email us directly:info@duobond-display.com
