UVA-S100 3D printer UV Light System
The UVA-S100V01 from Aptus International Co., Ltd. is a high-performance UV light source designed for 3D printer photo-curing applications. This 12.8/13.3-inch light source features parallel light technology for enhanced image recognition and high contrast, with a 10×10 LED array providing uniform light distribution. Equipped with a water-cooling system, the UVA-S100V01 ensures efficient heat dissipation, making it ideal for large-format 3D printing.
UVA-S100: Precision UV Curing Solution for 3D Printing
Enhance Your 3D Printing Process with UVA-S100
Discover the UVA-S100, a high-performance 12.8/13.3 -inch UV LED light source designed for precision 3D printing applications. This advanced water-cooled system ensures optimal performance and longevity in high-intensity 3D printing operations.
Key Highlights
Parallel Light Technology: Minimizes diffuse reflection, enhancing image boundary recognition with high contrast. Perfect for high-precision measurements.
High-Intensity Output: Delivers over 100mW/cm² light intensity through the Fresnel lens for efficient curing.
Even Light Distribution: Achieves ≥85% evenness for uniform curing across the surface.

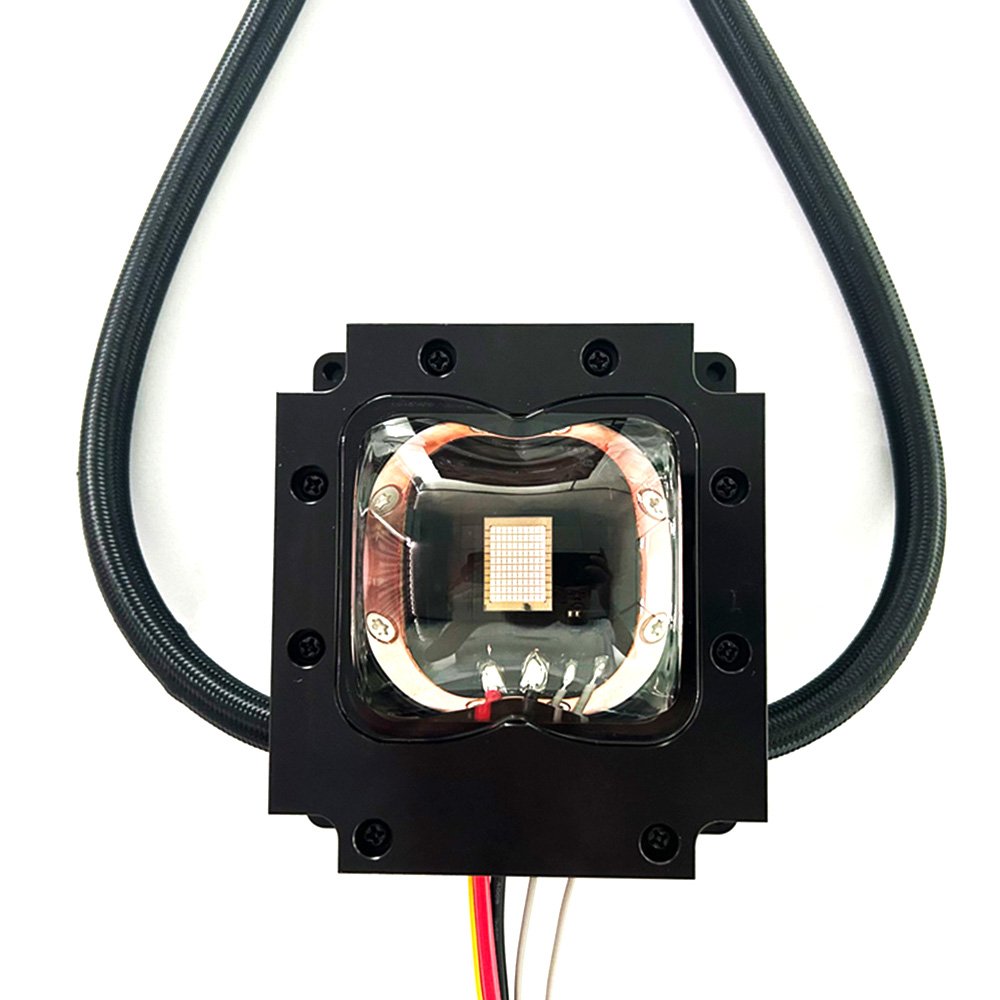

Powerful LED Array: Features a 10×10 matrix of 100 LEDs in a 10 series and 10 parallel configuration for a robust light source.
Technical Specifications
The UVA-S100 operates on an input voltage of 33-35V and an input current of 7.5-8.5A (with a recommended 8A). Its light intensity exceeds 100mW/cm² as measured by the Linshang LS125 UV radiometer probe UVALED-X3.
Structural and Cooling Design

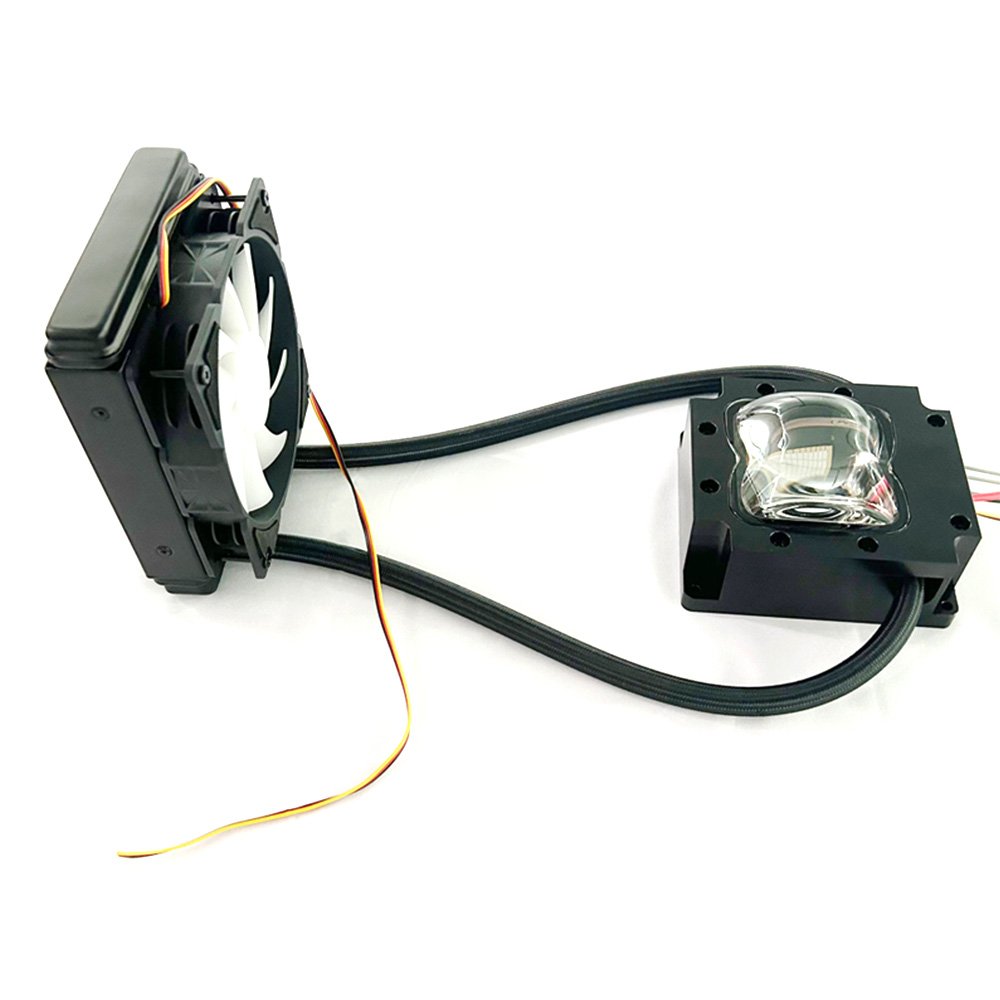

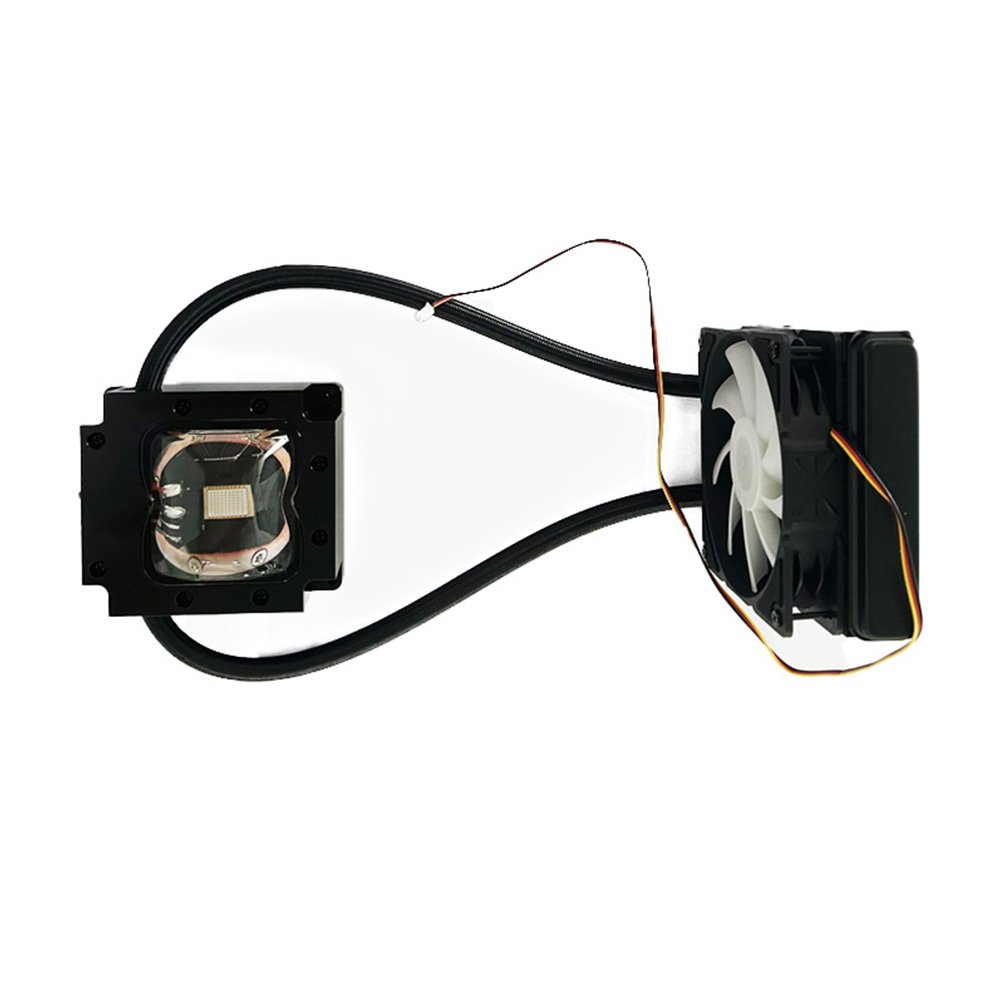

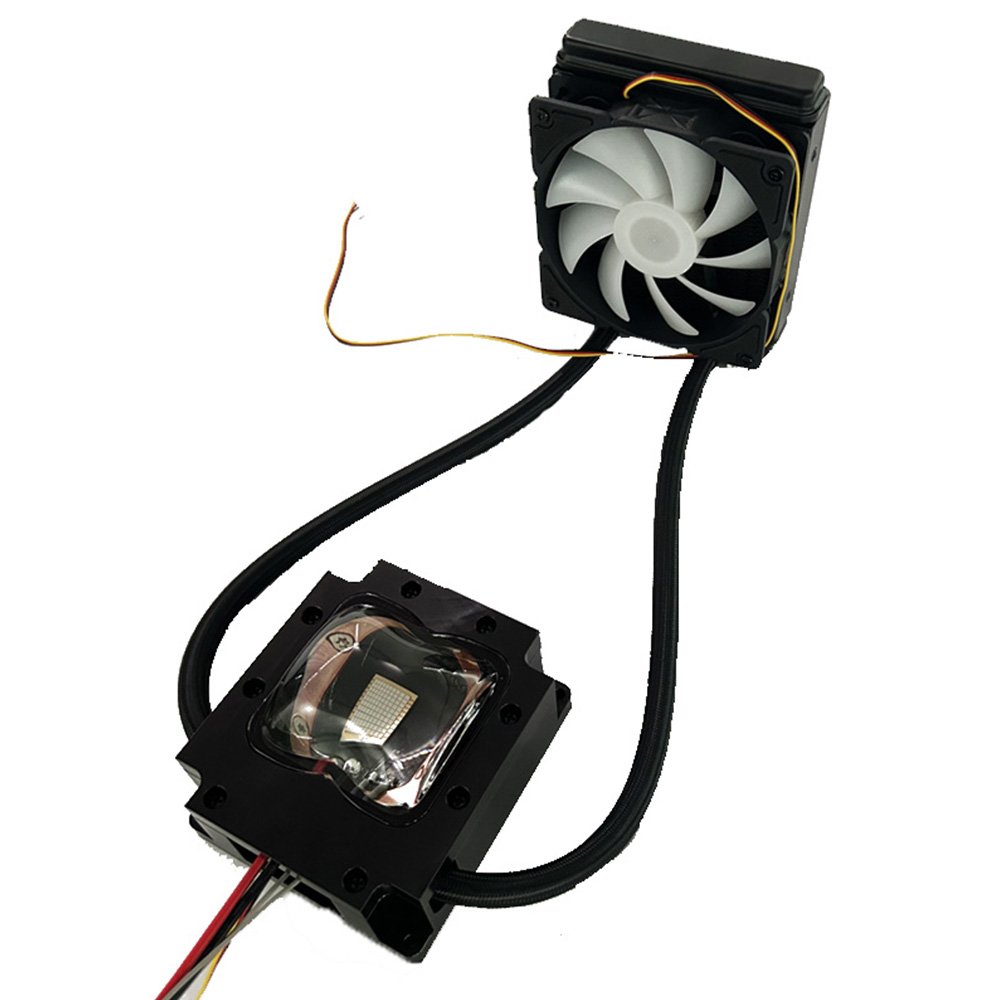

Equipped with a UVA120 integrated radiator and water pump, this system provides effective heat dissipation, making it ideal for large-format 3D printing. Detailed dimensional drawings of the Fresnel lens ensure precise installation, with a recommended distance of 170-173mm from the lens to the heat sink base.
Installation Guidelines and Safety
Follow our step-by-step installation recommendations for optimal positioning and distance between the Fresnel lens and LCD to achieve the best light source effect. Before operation, ensure the water pump and fan are functioning normally to prevent damage to the power cable and guarantee the longevity of the light source.
Why Choose UVA-S100?
Precision Curing: The parallel light technology ensures precise curing of 3D printer photo-curing components.
Efficiency: High-intensity output and even light distribution enhance the efficiency of your 3D printing process.
Reliability: The water-cooled system and robust structural design ensure reliable performance in demanding 3D printing applications.
