UVA-S100 UV Light Source Driver Board
The PBS100V03A-10A UV Light Source Driver Board is a high – efficiency solution for driving UV light sources in custom 3D printers. It operates on DC24V input voltage, delivering a stable output voltage of DC30 – 40V and a constant output current of 2700 – 10000mA with ±5% accuracy. With an output power of 150 – 300W and efficiency over 95%, it ensures reliable performance. Equipped with multiple protection functions and dimming method, it guarantees safe operation. The board also features a 100K NTC temperature sensor that triggers thermal protection. It pairs perfectly with MONO LCD screens and LCD driver boards.

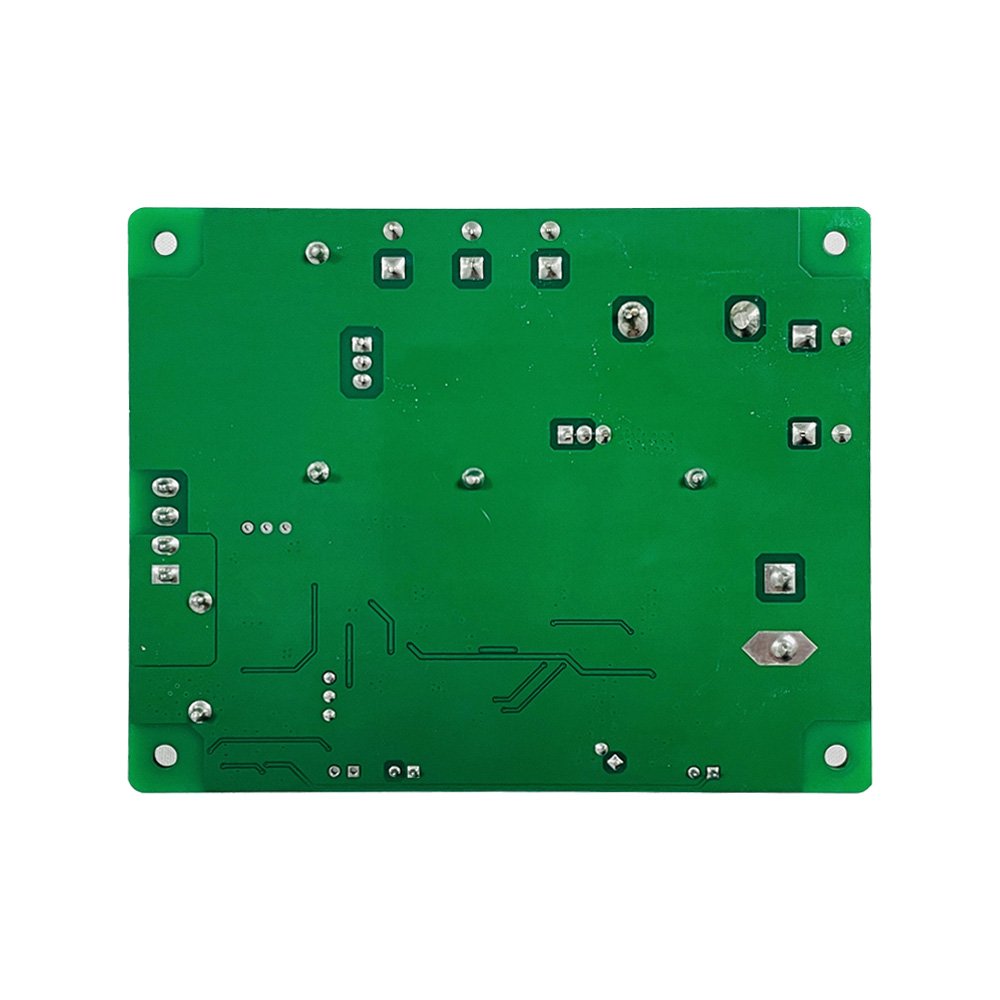

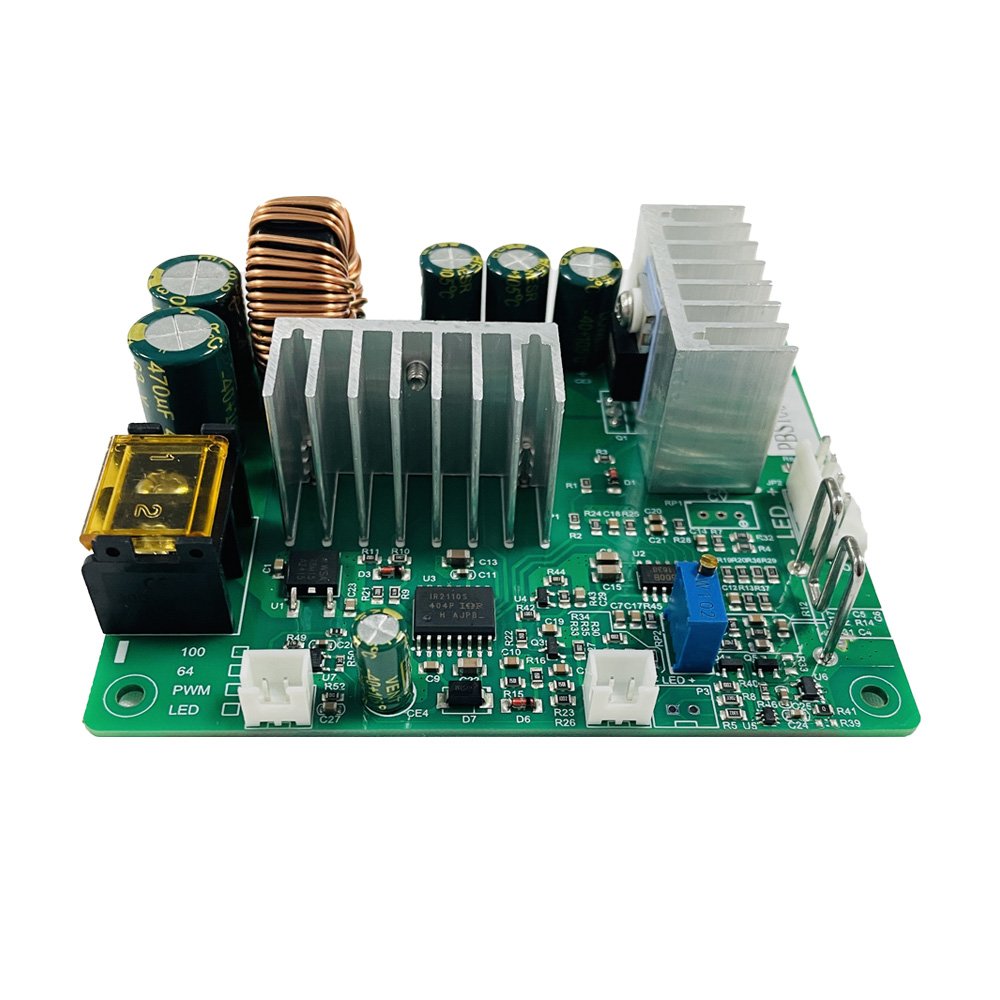

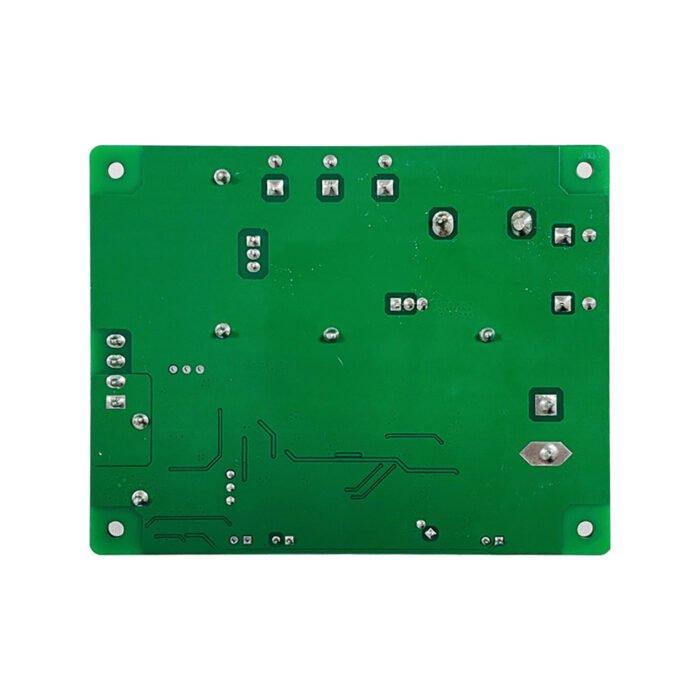

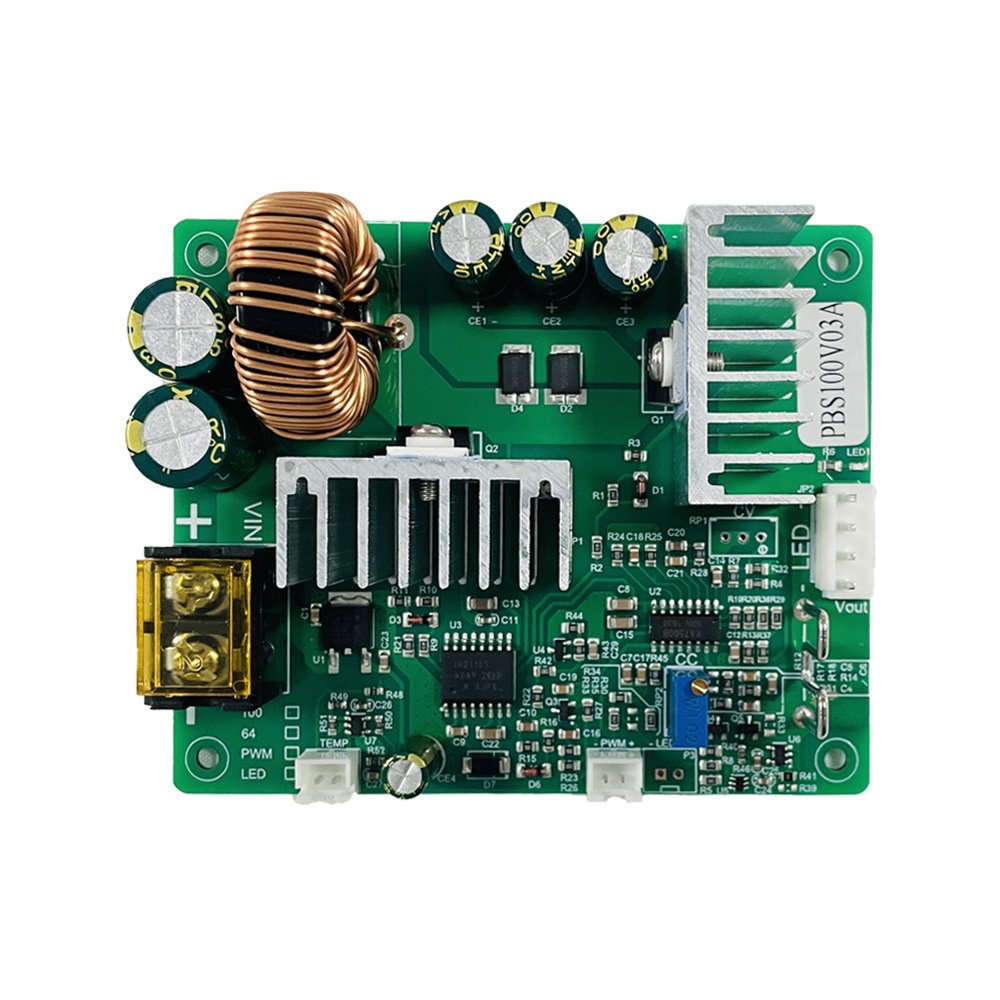

PBS100V03A-10A UV Light Source Driver Board with Temperature Control
Product Overview
The PBS100V03A-10A UV Light Source Driver Board is a high - performance, efficient solution designed to drive UV light sources in various applications, particularly for custom 3D printers. It provides reliable power output and multiple protection functions to ensure stable operation. As part of our comprehensive 3D printing solution, it works seamlessly with MONO LCD screens, LCD driver boards, and UV light sources to deliver an integrated and efficient system for your 3D printing projects.
Key Features
- Input Specifications: Operates on a DC24V (22 - 28V) input voltage with a maximum input current of 15A/DC24V.
- Output Specifications: Delivers a stable output voltage of DC30 - 40V and a constant output current ranging from 2700 - 10000mA with ±5% accuracy. It offers an output power of 150 - 300W and boasts an efficiency of over 95%.
- Protection Functions: Equipped with input reverse polarity protection, input undervoltage protection, output short - circuit protection, and output open - circuit protection to ensure reliable and safe operation.
- Dimming Method: Can be controlled via an external control signal (3.3 - 5V/GND) to achieve ON/OFF functionality. The required current or power can also be adjusted using a precision adjustable resistor on the board (adjustable range: 5% - 100%). Additionally, it supports external PWM signals (3.3 - 5V, 100 - 1000Hz) for dimming control with a duty cycle range of 1% - 100%.
- Temperature Protection: Features a 100K NTC temperature sensor that triggers thermal protection and disconnects the output when the temperature reaches 60℃, ensuring safe operation under high - temperature conditions.
- Installation and Storage: The bare board dimensions are 100×80×28mm. It has mounting holes with a length of 90mm, width of 70mm (center to center distance), and hole size of φ3.5mm*4. The net weight is 170g. It can operate in an environment of -25℃ to +65℃ / 20% to 90% RH and can be stored in an environment of -30℃ to +85℃ / 10% to 95% RH.
Wiring Information
- Input Connector: DA45 - 9.50 - 2P
- Output Connector: VH3.96 - 4P, 2 + 2
- PWM Connector: XH2.54 - 2P
- Temperature Control Connector: XH2.54 - 2P
Our PBS100V03A-10A UV Light Source Driver Board is your ideal choice for driving UV light sources in custom 3D printers. Along with our other components, it forms a comprehensive and efficient 3D printing solution.
