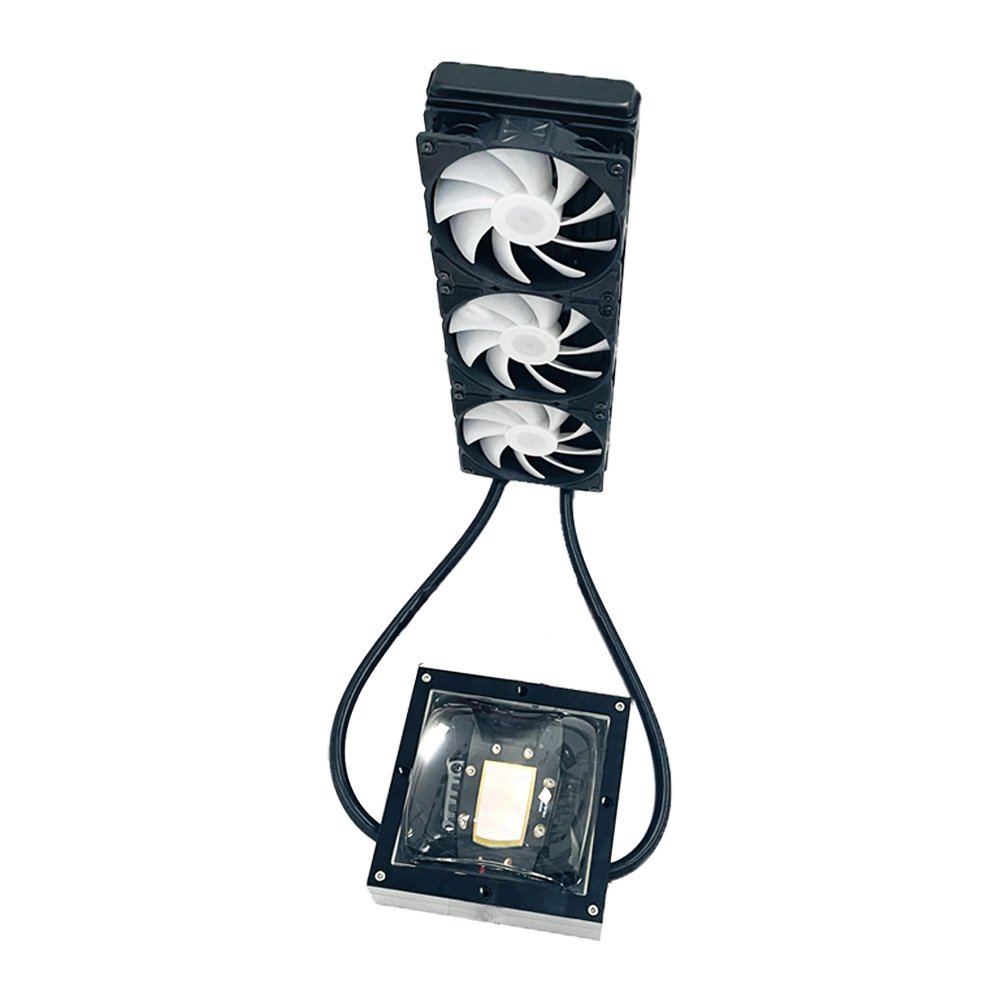

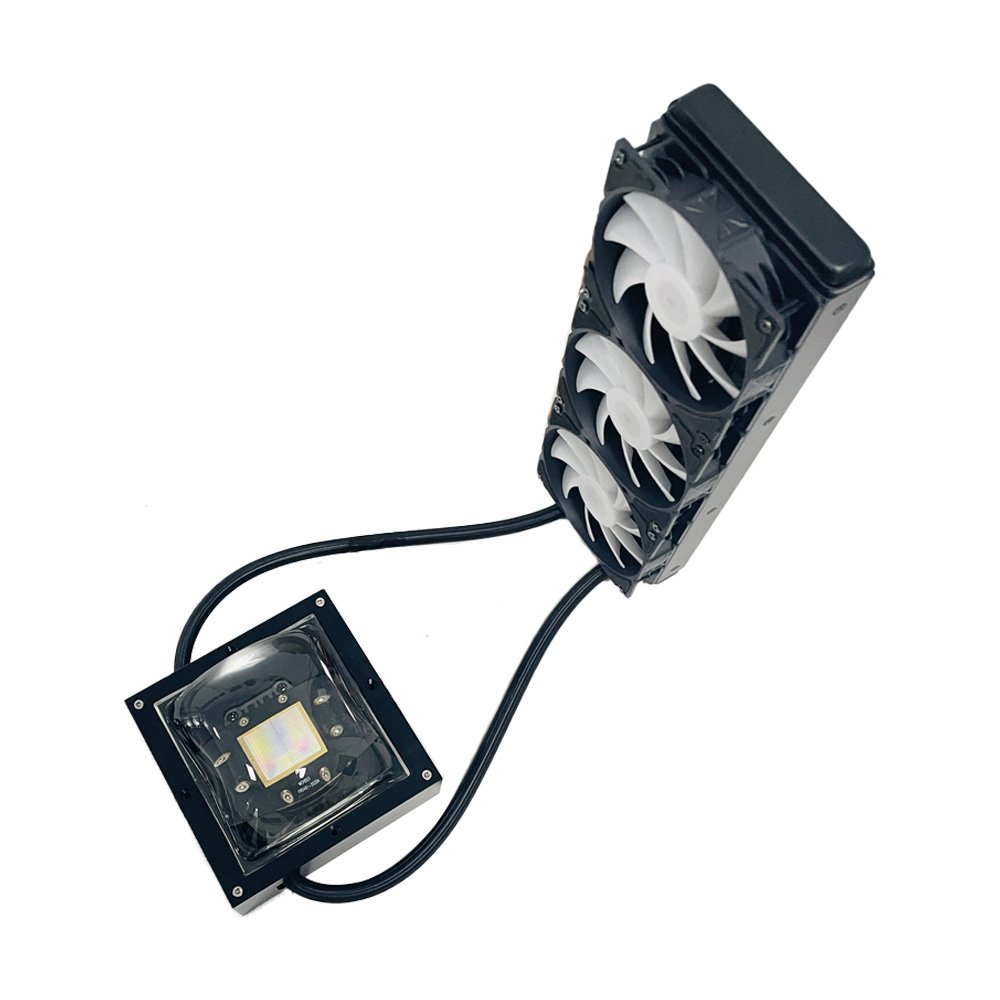

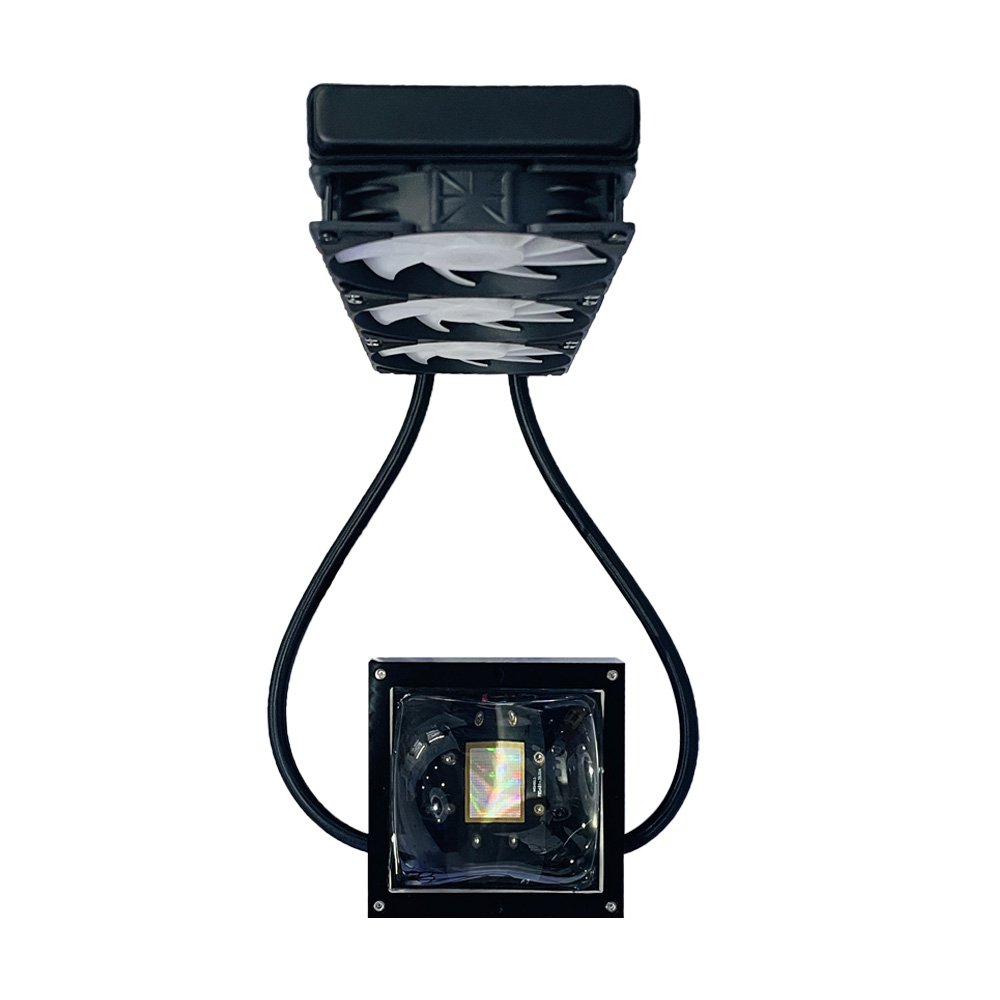

UVA-S576 Series 16-inch Water-cooled UV Light Source
The UVA-S576 series 16-inch water-cooled UV light source features a parallel light design, providing high contrast and reduced glare, making it ideal for edge detection and image processing. With a dual input voltage of 36-46V and a typical current of 12.5A, it offers uniform light distribution with an AA area uniformity of ≥85%. The light source has 576 LEDs arranged in a 12×24 matrix, providing high-intensity and uniform light output.
UVA-S576 16-inch Water-cooled UV Light Source for 3D Printers
The UVA-S576 16-inch water-cooled UV light source is a high-precision, high-intensity UV light source designed for industrial applications. It features a parallel light design, which provides high contrast and reduced glare, making it ideal for edge detection and image processing.
Core Parameters
Voltage: 36-46V
Current: 12.5A (Typ.)
Light Intensity: >150mW/cm²
Uniformity: ≥85%
LEDs: 576 (24×24)
Key Features
High-Intensity Parallel Light: The UVA-S576 uses a point light source and a two-layer lens system to produce highly parallel light. This design reduces dark spots and provides a uniform light distribution.
Dual Input Voltage: The light source has a dual input voltage of 36-46V and a typical current of 12.5A. The light intensity through the Fresnel lens is greater than 150mW/cm².
Uniformity: The AA area uniformity is greater than 85%, ensuring consistent light output across the entire surface.
Large Number of LEDs: The light source has 576 LEDs arranged in a 24×24 matrix, providing a high-intensity and uniform light output.
Water-cooled Design: The water-cooled design ensures stable operation and prevents overheating, making it suitable for long-term use.
Installation and Operation
Fresnel Lens Distance: The distance between the Fresnel lens and the light source bracket should be 267-269mm. The distance between the Fresnel lens and the LCD should be within 0-6mm.
Installation Method: The recommended installation method is to place the Fresnel lens, glass cover, and LCD in a metal platform. The glass thickness should be 3-4mm.
Safety Precautions: Before turning on the light source, ensure that the water pump and fan are operating normally. The core temperature of the light source should not exceed 70℃. If the thermistor resistance is lower than 17kΩ, please immediately cut off the power supply.
Applications
The UVA-S576 16-inch water-cooled UV light source is suitable for a wide range of industrial applications, including:
UV Curing: The high-intensity UV light is ideal for curing adhesives, coatings, and inks.
Inspection: The parallel light design makes it suitable for inspecting the edges of objects and detecting defects.
Image Processing: The high contrast and reduced glare make it ideal for image processing applications.
Conclusion
The UVA-S576 16-inch water-cooled UV light source is a high-performance, reliable, and versatile UV light source that meets the needs of various industrial applications. Its high-intensity parallel light, uniformity, and water-cooled design make it an excellent choice for UV curing, inspection, and image processing.
